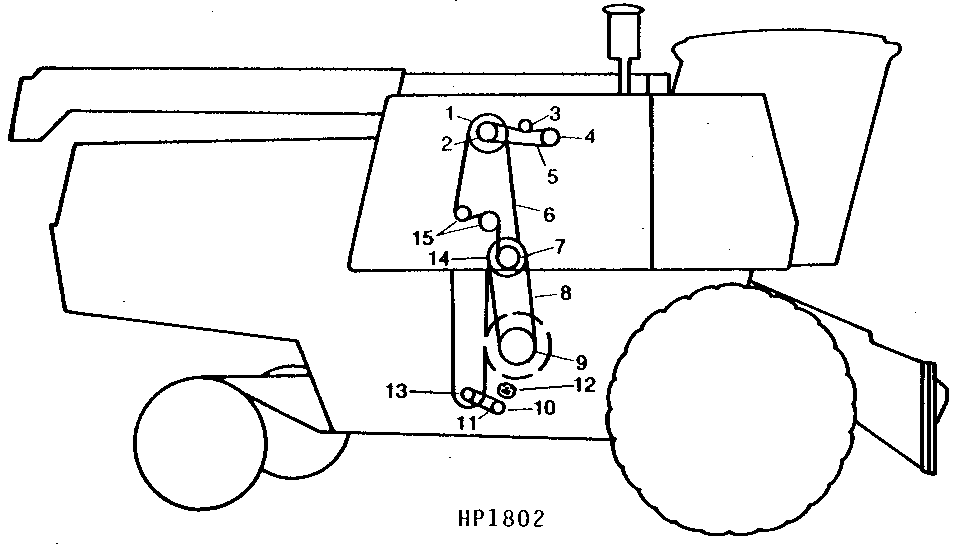

CLEAN GRAIN ELEVATOR AND LOADING AUGER DRIVE SHEAVES AND BELTS ( - 610400)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH75986	1	Pulley	270 MM (10-5/8") DIA, CLEAN GRAIN ELEVATOR DRIVE SHAFT
2	AH87146	1	Chain Sprocket	Z=26, DRIVE, LOADING AUGER
3	AH83654	1	IDLER	86 MM (3-7/16") DIA, TIGHTENER, LOADING AUGER DRIVE
4	AH87146	1	Chain Sprocket	Z=26, DRIVEN, LOADING AUGER
5	-	1	Part 5	16 MM (5/8"), DRIVE, ROLLER, TYPE 50, PITCH, 58 LINKS (LOADING AUGER) (ASSEMBLED FROM AP6094H, (3) AP6095H, SW50RLUS, SW50COUS AND SW50OLUS)
6	H23950	1	V-Belt	DRIVE, CLEAN GRAIN ELEVATOR AND LOADING AUGER DRIVE
7	AH75984	1	Pulley	232 MM (9-3/8") DIA, OUTER, CLEAN GRAIN ELEVATOR COUNTERSHAFT
8	H27433	1	V-Belt	DRIVE, CLEAN GRAIN ELEVATOR COUNTERSHAFT
9	AH104782	1	Pulley	CLEAN GRAIN ELEVATOR (USE WITH AH104783, H105618, (6) 12H304, (6) 14H1076 AND (6) 19H1801) (SUB FOR AH97033)
10	AH84244	1	Drive Sprocket	Z=18, DRIVEN, CLEAN GRAIN LOWER ELEVATOR, LOWER SHAFT (SUB AH108799) THIS APPLICATION
10	AH108799	1	Chain Sprocket	Z=18, DRIVEN, CLEAN GRAIN LOWER ELEVATOR, LOWER SHAFT
11	-	1	Part 12	16 MM (5/8"), DRIVE, ROLLER, TYPE 50, PITCH, 58 LINKS (CLEAN GRAIN LOWER ELEVATOR AND LOWER AUGER) (ASSEMBLED FROM AP6094H, (2) AP6095H, SW50RLUS AND SW50COUS)
12	H109736	1	Tightener	(SUB FOR H98970)
13	AH84244	1	Drive Sprocket	Z=18, DRIVE, CLEAN GRAIN UPPER ELEVATOR, LOWER SHAFT
14	AH75987	1	Pulley	297 MM (11-3/4") DIA, INNER, CLEAN GRAIN ELEVATOR COUNTERSHAFT
15	AH14097	2	Idler	178 MM (7") DIA, TIGHTENER

CLEAN GRAIN ELEVATOR AND LOADING AUGER DRIVE SHEAVES AND BELTS ( - 610400)
