AUGER DRIVE AND KNIFE DRIVE SHIELDS AND BRACKETS (507051 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H113836	1	Shield	-
2	19H1919	6	Cap Screw	1/4" X 5/8"
2	14H786	6	Nut	1/4"
2	12H302	6	Lock Washer	1/4"
3	H88548	1	Bracket	-
4	H113701	1	Brace	RH
5	19H1731	2	Cap Screw	3/8" X 1", RH
5	12H304	2	Lock Washer	3/8", RH
5	14H812	2	NUT	3/8", RH
6	24H1305	4	Washer	13/32" X 13/16" X 0.065", RH
7	H110445	1	Bracket	RH
7	H110446	1	Bracket	LH
8	14H812	4	NUT	3/8"
8	12H304	4	Lock Washer	3/8"
8	19H2791	2	Cap Screw	3/8" X 1-3/4"
9	24H1305	2	Washer	13/32" X 13/16" X 0.065"
10	H109600	1	Bracket	RH
11	03H1500	1	Bolt	3/8" X 1", (6 USED. RH, 5 USED, LH)
11	12H304	1	Lock Washer	3/8"
11	14H812	1	NUT	3/8"
12	19H1900	8	Cap Screw	5/16" X 3/4", RH
12	12H303	8	Lock Washer	5/16", RH
12	14H785	8	Nut	5/16", RH
13	14H1039	1	Nut	5/8"
13	12H294	1	Lock Washer	5/8"
13	03H2075	1	Bolt	5/8" X 3"
14	AH108273	1	Bracket	-
15	24H1373	5	Washer	21/32" X 1-9/16" X 0.180"
16	H109877	1	Bracket	-
17	21H1321	6	Screw	3/8" X 3/4"
17	12H304	6	Lock Washer	3/8"
17	14H812	6	NUT	3/8"
18	AH108443	1	Shield	RH
18	AH108444	1	Shield	LH
19	AH77869	1	Clip	RH
20	24H1136	1	Washer	11/32" X 11/16" X 0.065"
21	H109887	1	Bracket	-
22	H112727	1	Shield	-
23	19H1905	1	Cap Screw	5/16" X 1", RH
23	19H1900	1	Cap Screw	5/16" X 3/4", LH
23	12H303	1	Lock Washer	5/16"
23	14H785	1	Nut	5/16"
24	H110863	1	Shield	-
25	H109880	1	Bracket	RH
26	H109879	1	Shield	RH
27	24H1136	4	Washer	11/32" X 11/16" X 0.065", RH
28	H109881	1	Bracket	RH
29	H110161	1	Channel	RH

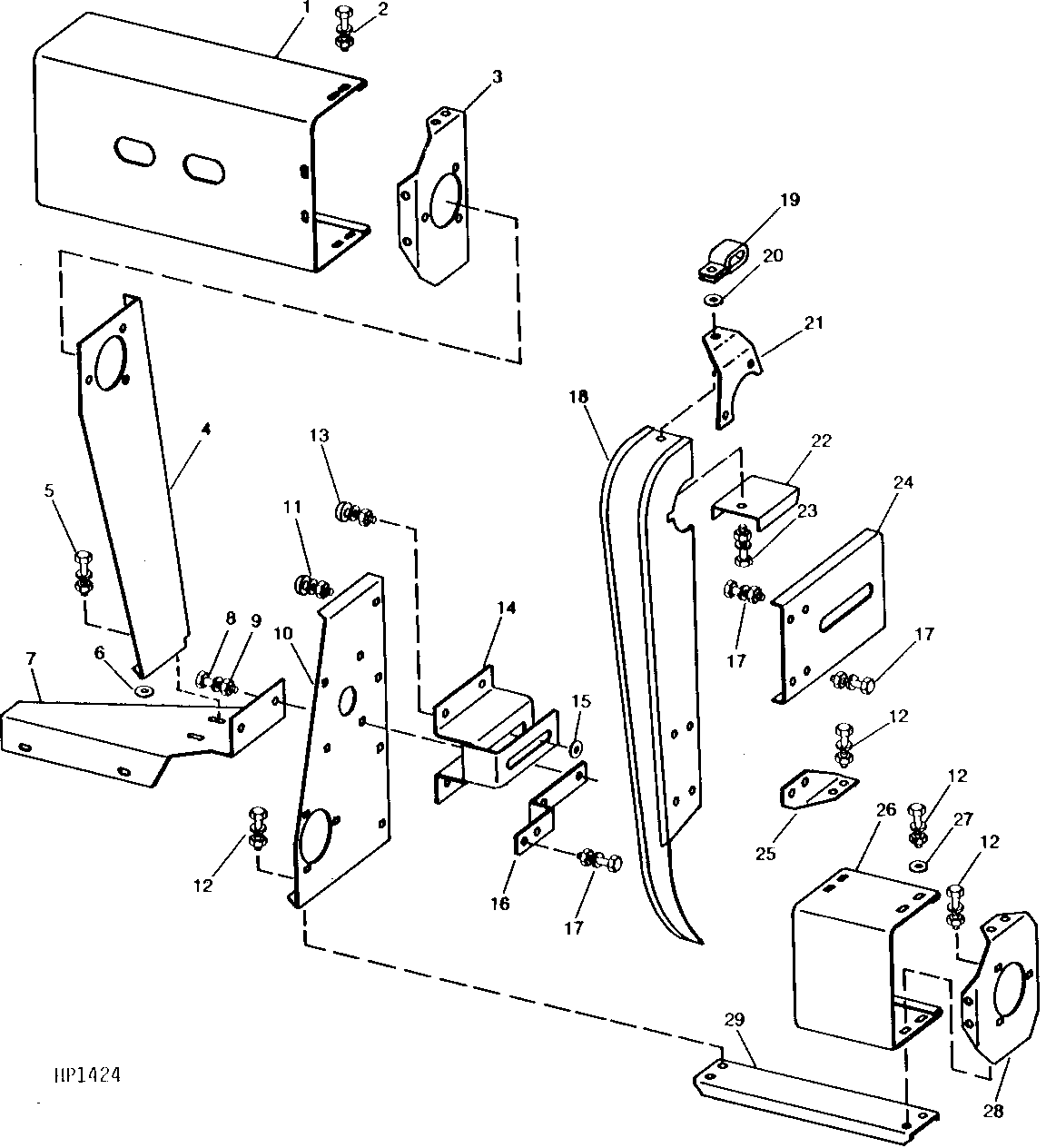

AUGER DRIVE AND KNIFE DRIVE SHIELDS AND BRACKETS (507051 - )
