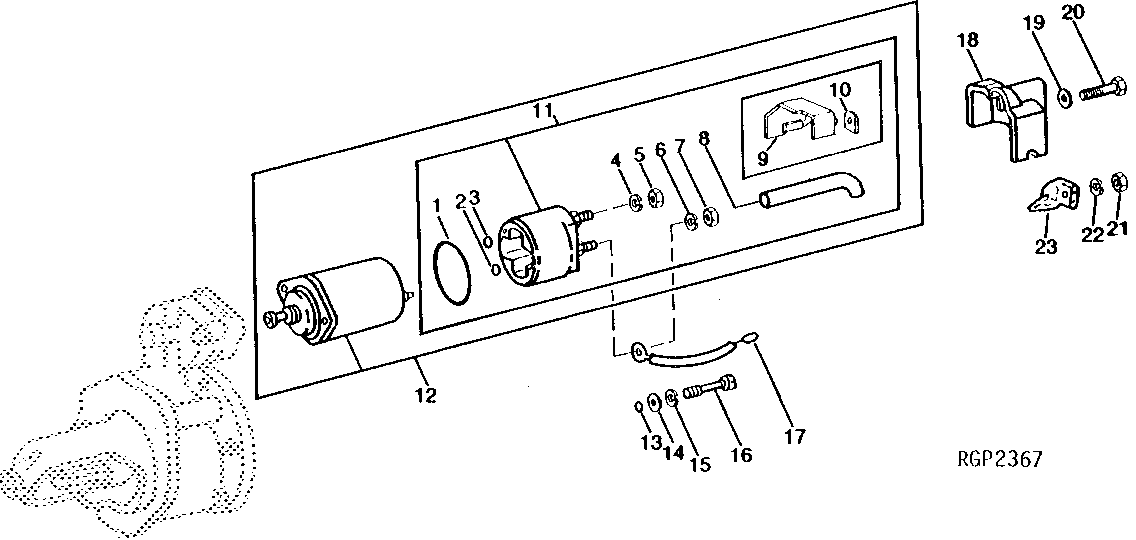

Starter Solenoid Switch (12 Volt) (John Deere)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R68224	1	GASKET	-
2	R56792	1	WASHER	-
3	R56793	1	SHIM	-
4	12H303	1	Lock Washer	5/16"
5	R51671	1	NUT	-
6	12H246	1	LOCK WASHER	0.190"
7	14H631	2	Nut	0.190"
8	R68222	1	BOOT	-
9	R68225	1	COVER	(USE WITH <service-part>AR77254</service-part>) (SUB RE39064)
10	R68223	1	PLATE	(USE WITH <service-part>AR77254</service-part>) (NO LONGER AVAILABLE)
11	AR90071	1	KIT	(USE WITH <service-part>AR77254</service-part>) (SUB RE13733)
11	RE13733	1	SWITCH	(USE WITH <service-part>RE13722</service-part> OR <service-part>RE41875</service-part >) (NIPPONDENSO NO. 028099-3600)
12	AR90070	1	SWITCH	(USE WITH <service-part>AR77254</service-part>) (SUB RE13732)
12	RE13732	1	SOLENOID	(USE WITH <service-part>RE13722</service-part> OR <service-part>RE41875</service-part >) (NIPPONDENSO NO. 028099-3610)
13	R50894	2	O-RING	-
14	24H1305	2	Washer	13/32" X 13/16" X 0.065"
15	24H1283	2	Washer	7/32" X 1/2" X 0.049"
16	R51669	2	SCREW	-
17	RE15058	1	WIRE	(USE WITH <service-part>RE13722</service-part> OR <service-part>RE41875</service-part >) (SUB FOR AR55949)
18	R76139	1	COVER	(USE WITH <service-part>RE13722</service-part> OR <service-part>RE41875</service-part >) (SUB RE39064)
19	R51662	1	WASHER	-
20	AR55946	1	SCREW	-
21	14H732	2	Nut	3/8"
22	R50899	2	LOCK WASHER	-
23	R50910	1	ELECTRICAL CONNECTOR ASSY	-
