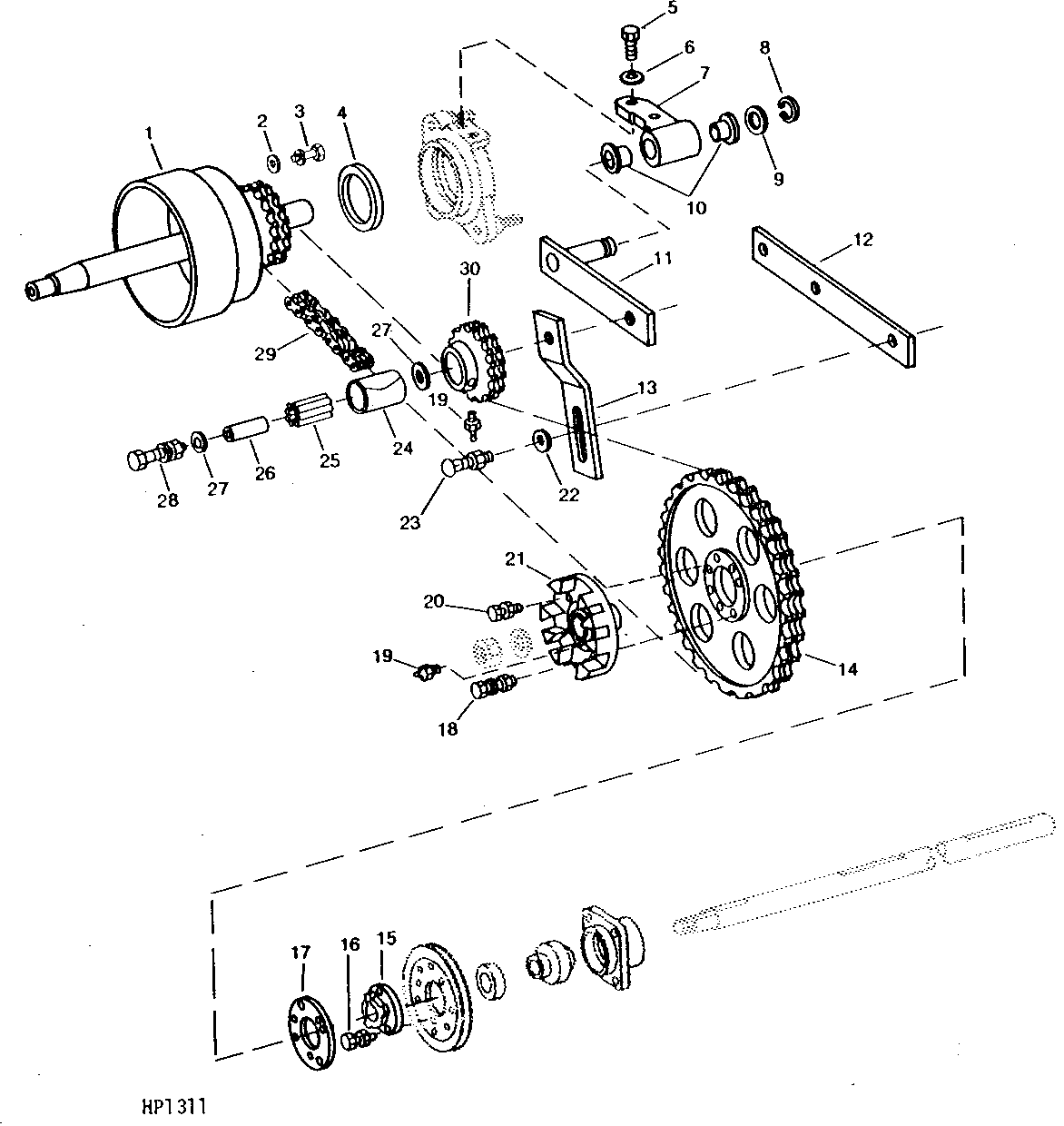

SLOW SPEED CYLINDER DRIVE ( - 551900)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH110322	1	Shaft	WITH SPROCKET
1	AH96283	1	Shaft	WITH SPROCKET
2	24H1305	3	Washer	13/32" X 13/16" X 0.065"
3	19H3239	3	Cap Screw	3/8" X 1-1/4"
3	12H304	3	Lock Washer	3/8"
4	E18993	1	Washer	-
5	19H1800	2	Cap Screw	3/8" X 1-1/2"
5	12H304	2	Lock Washer	3/8"
6	24H1682	1	Washer	13/32" X 7/8" X 0.120"
7	H93640	1	Pivot	-
8	P46614	1	Snap Ring	-
9	24H1413	1	Washer	57/64" X 1-3/8" X 0.048"
10	H85857	2	Bushing	-
11	AH96348	1	Arm	-
12	H96400	1	Strap	-
13	H97712	1	Strap	-
14	H97713	1	Chain Sprocket	97 TEETH
15	H82312	1	Hub	-
16	19H1731	3	Cap Screw	3/8" X 1"
16	12H304	3	Lock Washer	3/8"
16	14H812	3	NUT	3/8"
17	H92418	1	Plate	-
18	12H302	2	Lock Washer	1/4"
18	14H786	2	Nut	1/4"
18	19H2335	2	Cap Screw	1/4" X 2-3/4"
19	JD7797	1	Lubrication Fitting	-
20	19H1733	3	CAP SCREW	3/8" X 2-1/2"
20	12H304	3	Lock Washer	3/8"
20	14H812	3	NUT	3/8"
21	H97161	1	Hub	-
22	24H1625	1	Washer	17/32" X 1" X 0.120"
23	12H301	1	Lock Washer	1/2"
23	14H1040	1	Nut	1/2"
23	03H1731	1	Bolt	1/2" X 1-1/2"
24	JD7455	1	BEARING RACE	-
25	JD7911	1	CYLINDRICAL ROLLER BEARING	-
26	P40153	1	Bushing	-
27	24H1626	1	Washer	21/32" X 2" X 0.060"
28	19H2133	1	Cap Screw	5/8" X 4-1/2"
28	12H294	1	Lock Washer	5/8"
28	14H1039	1	Nut	5/8"
29	-	1	Part 42	19 MM (3/4") PITCH, DRIVE, ROLLER, TYPE 60-2, DOUBLE WIDTH, 128 LINKS (ASSEMBLED FROM (2) AP21962, AP21963, (2) SW60RLUS AND SW60DCOUS)
30	H64208	1	Chain Sprocket	-

SLOW SPEED CYLINDER DRIVE ( - 551900)
