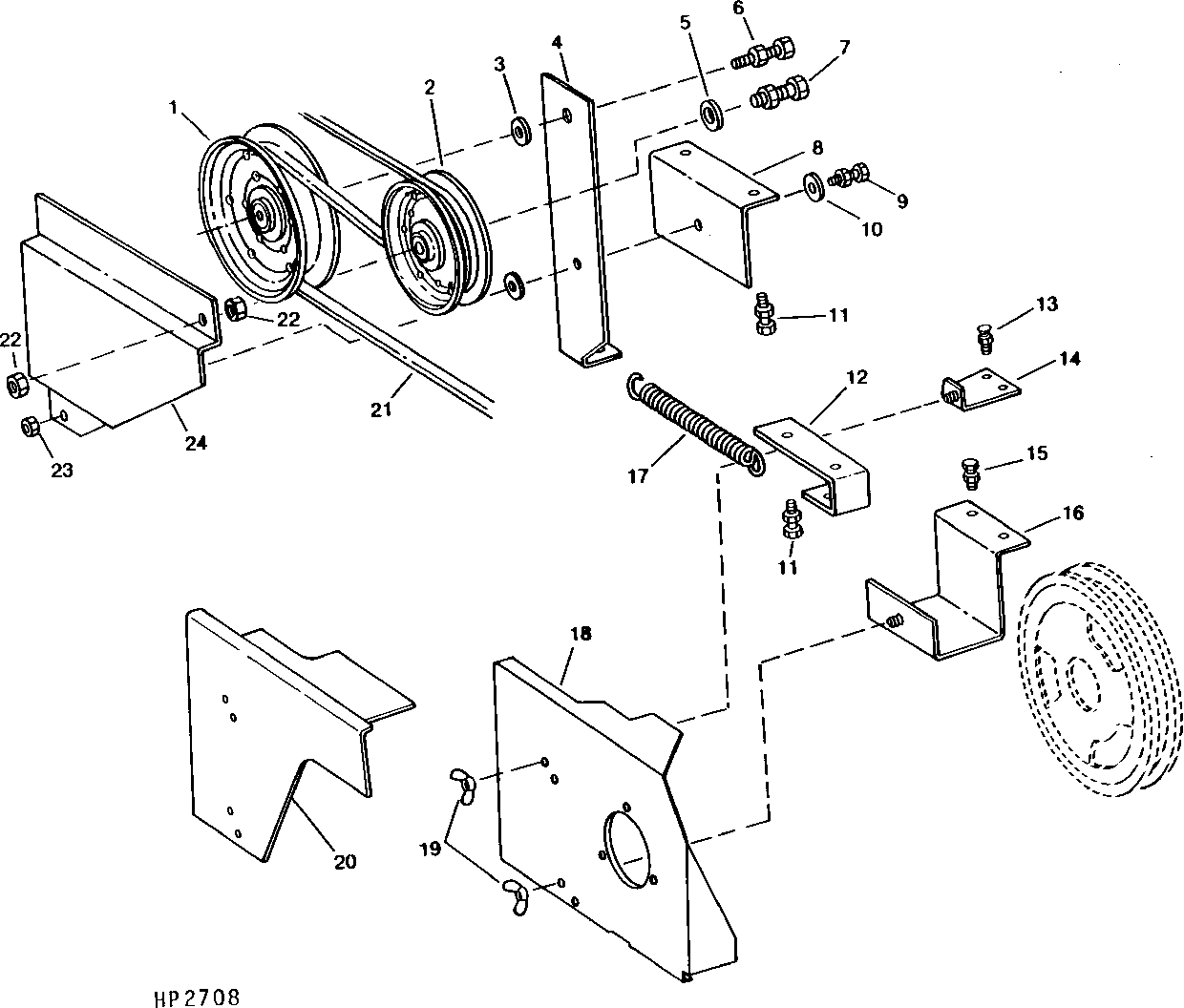

Shoe Grain Supply Augers Drive Tightener, Idler, And Front Driven Sheave Shields

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH14097	1	Idler	178 MM (7") DIA.
2	AH65015	1	Idler	133 MM (5-1/4") DIA., TIGHTENER
3	24H1111	4	Washer	17/32" X 1-1/16" X 0.090"
4	H99182	1	Arm	-
5	24H1362	1	Washer	41/64" X 1" X 0.075"
6	19H1805	1	CAP SCREW	1/2" X 2-1/4"
6	12H301	1	Lock Washer	1/2"
6	14H1040	1	Nut	1/2"
7	14H1039	1	Nut	5/8"
7	12H294	1	Lock Washer	5/8"
7	19H1734	1	Cap Screw	5/8" X 2"
8	H99181	1	Bracket	-
9	19H1800	1	Cap Screw	3/8" X 1-1/2"
9	H99923	1	Lock Nut	-
10	24H1305	2	Washer	13/32" X 13/16" X 0.065"
11	19H1900	4	Cap Screw	5/16" X 3/4"
11	12H303	4	Lock Washer	5/16"
11	14H785	4	Nut	5/16"
12	H77004	1	Support	-
13	12H303	2	Lock Washer	5/16"
13	14H785	2	Nut	5/16"
13	03H1709	2	Bolt	5/16" X 1"
14	AH76979	1	Bracket	UPPER
15	19H2127	2	Cap Screw	5/16" X 7/8"
15	12H303	2	Lock Washer	5/16"
15	14H785	2	Nut	5/16"
16	AH76978	1	Bracket	LOWER
17	H77002	1	Spring	-
18	AH94079	1	Shield	(REGULAR)
18	H131778	1	Shield	-
19	14H819	2	Wing Nut	5/16"
20	AH89602	1	Shield	(SIDEHILL)
21	H77010	1	V-Belt	-
22	14H821	2	Nut	5/8", (USE WITH 23.1 TIRE AND ALL TRACKS)
23	14H732	1	Nut	3/8", (USE WITH 23.1 X 26 TIRE AND ALL TRACKS)
24	H100710	1	Shield	(USE WITH 23.1 X 26 TIRE (SIDEHILL ONLY) AND ALL TRACKS) (USE WITH 8" AND 16" AXLE SPACERS)

Shoe Grain Supply Augers Drive Tightener, Idler, And Front Driven Sheave Shields
