SHOE GRAIN SUPPLY AUGERS DRIVE SHAFT AND SHEAVE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H76139	2	Screw	-
2	03H1539	3	Bolt	5/16" X 5/8"
2	14H611	3	Nut	5/16"
2	12H328	3	Lock Washer	7/8"
3	H98248	1	Bracket	LH
4	19H1900	8	Cap Screw	5/16" X 3/4"
4	12H303	8	Lock Washer	5/16"
4	14H785	8	Nut	5/16"
5	N112200	2	Self-Locking Screw	-
5	N10213	1	Lock Nut	-
6	H87472	4	Pressed Flanged Housing	-
6	H103264	4	Pressed Flanged Housing	-
7	JD8665	2	Ball Bearing	-
8	22H897	2	Set Screw	1/4" X 1/4"
9	JD8554	2	Eccentric Locking Collar	-
10	19H1765	5	Cap Screw	3/8" X 1-3/4"
10	12H304	5	Lock Washer	3/8"
10	14H812	5	NUT	3/8"
11	M2300T	5	CLAMP	-
12	H75406	5	Gear	Z=13
13	19H1944	2	Cap Screw	3/8" X 2-3/4"
13	H99923	1	Lock Nut	-
14	JD7768	1	Lubrication Fitting	-
15	H83089	1	Plate	-
16	P16643	1	Shim	-
17	AH15397	1	Bearing	(MATCHED PAIR), (SUB AH17997 AND (6) P16643)
17	AH17997	1	Bearing	-
18	H91205	1	Bracket	CENTER
19	-	5	Part 29	(1/4" X 1/4" X 3/4"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
20	26H14	1	SHAFT KEY	3/16" X 3/4"
21	H84498	1	Shaft	-
22	11H215	1	COTTER PIN	1/4" X 1-1/2"
23	H98247	1	Bracket	-
24	14H785	3	Nut	5/16"
24	12H303	3	Lock Washer	5/16"
24	03H1540	3	Bolt	5/16" X 3/4"
25	H80714	1	Snap Ring	-
26	H87019	1	Driver	SLIP CLUTCH
27	Z699H	2	SLIP CLUTCH	-
28	H77010	1	V-Belt	-
29	H83084	1	Pulley	241 MM (9-1/2") DIA.
30	J21022	1	Spring	-
31	H97542	1	Round Retainer	-
32	14H872	1	NUT	1"
33	11H215	1	COTTER PIN	1/4" X 1-1/2"
34	JD7797	1	Lubrication Fitting	1/4", STRAIGHT
34	JD7806	1	Lubrication Fitting	90°

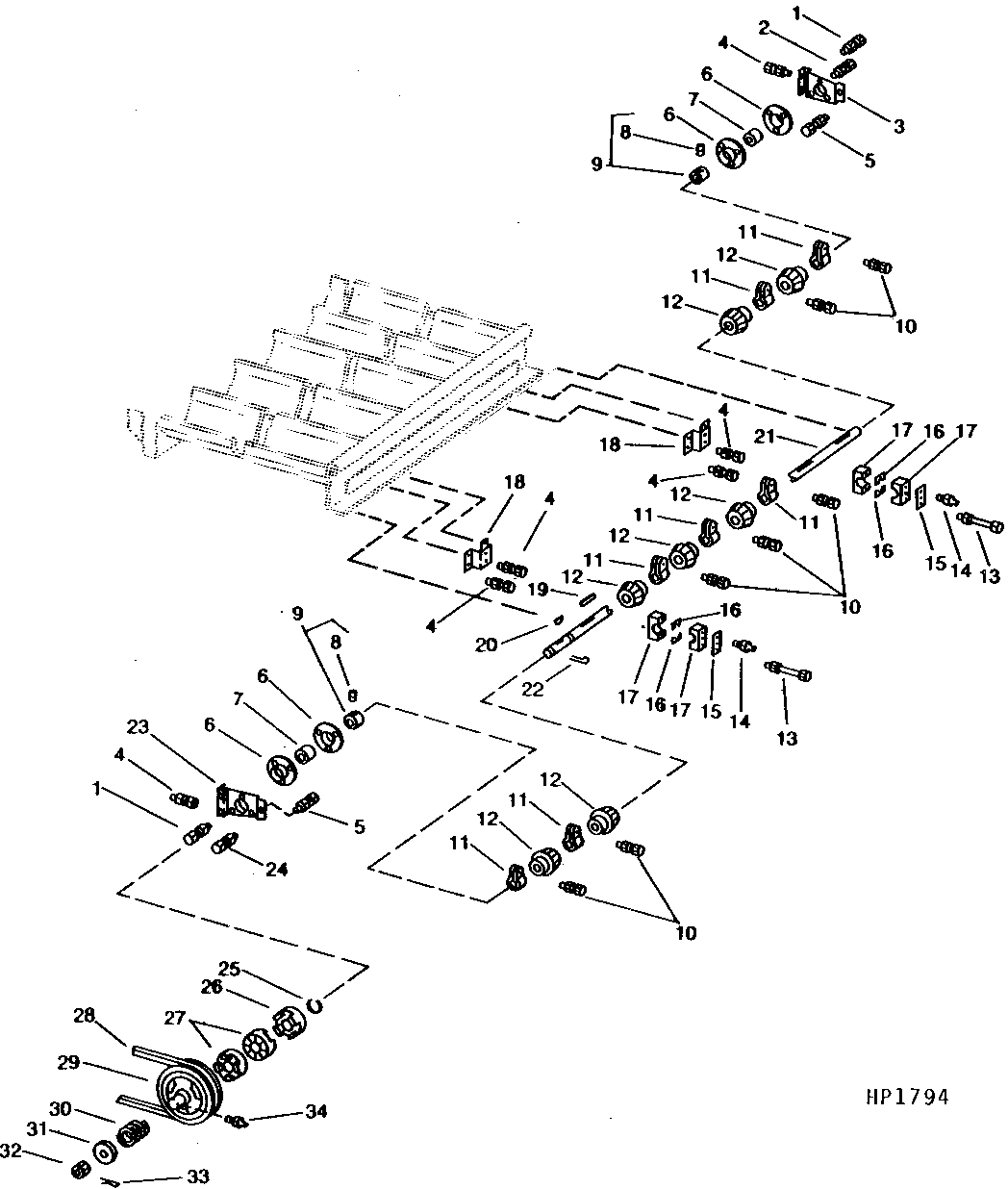

SHOE GRAIN SUPPLY AUGERS DRIVE SHAFT AND SHEAVE
