Открытый узел

RASP-BAR CYLINDER ( - 551900)

RASP-BAR CYLINDER ( - 551900)

RASP-BAR CYLINDER ( - 551900)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

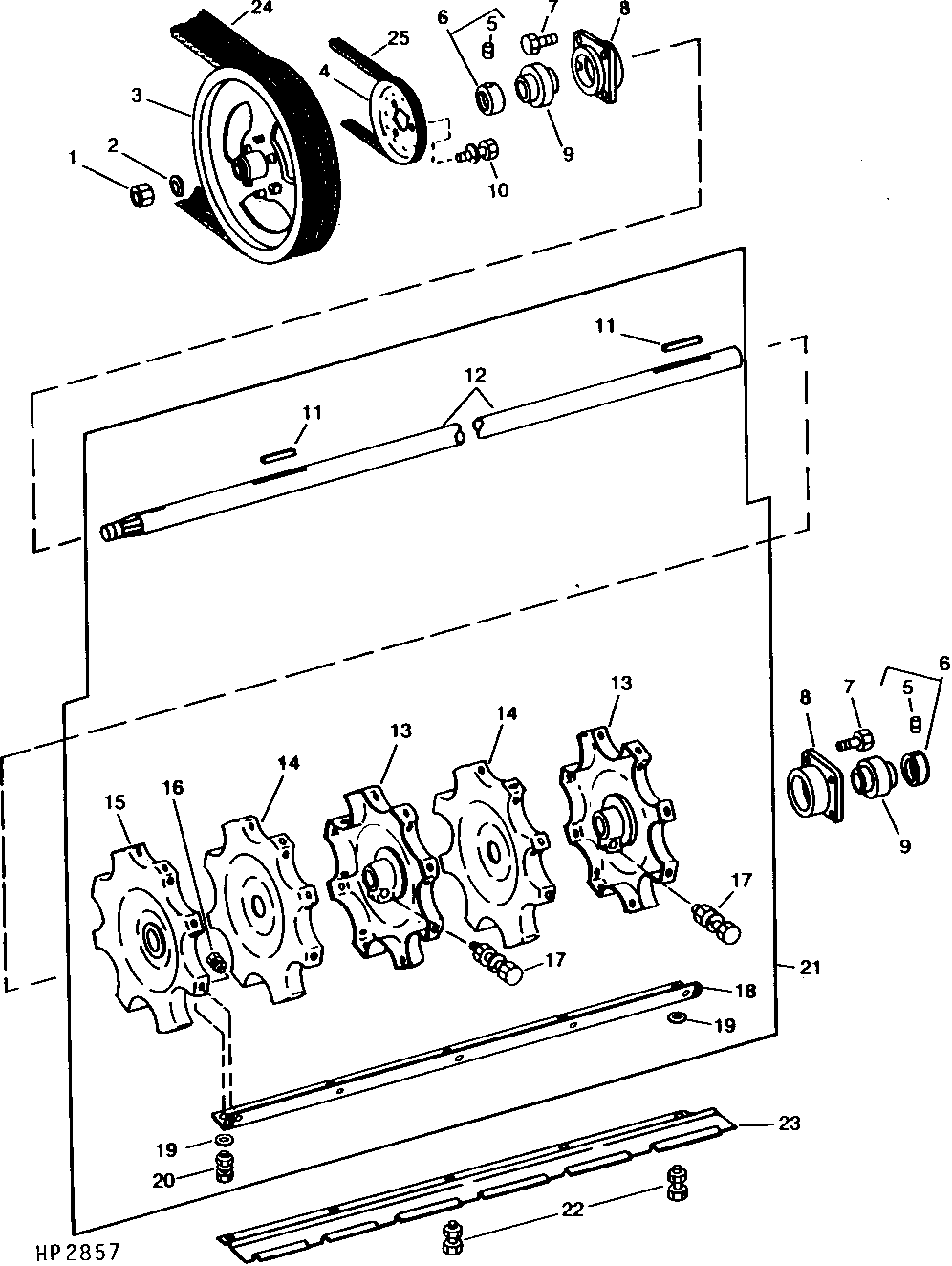

RASP-BAR CYLINDER ( - 551900)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H93931	1	Lock Nut	-
2	24H1509	1	Washer	1-25/64" X 2-1/2" X 0.194"
3	H93644	1	Pulley	569 MM (22-13/32") DIA.
4	AH94959	1	Pulley	241 MM (9-1/2") DIA., (100 PER CENT BEATER SPEED)
4	AH101245	1	Pulley	318 MM (12-1/2") DIA., (150 PER CENT BEATER SPEED)
5	22H982	2	Set Screw	7/16" X 7/16"
6	JD9365	2	Eccentric Locking Collar	-
7	19H1732	8	Cap Screw	3/8" X 1-1/4"
7	12H304	8	Lock Washer	3/8"
8	H99149	2	Housing	(SUB H203950)
8	H203950	2	Housing	-
9	JD9431	2	Ball Bearing	-
10	12H304	3	Lock Washer	3/8"
10	19H1731	3	Cap Screw	3/8" X 1"
11	-	2	Part 15	(3/8" X 3/8" X 2-1/4"), (CUT FROM H64376 IN AH64587 KEY STOCK KIT)
12	H85933	1	Shaft	-
13	AH96531	2	Cylinder Head	(SUB AH114501 AND/OR AH114502)
13	AH114501	1	Threshing CYL Head (W/HUB)	RH
13	AH114502	1	Threshing CYL Head (W/HUB)	LH
14	H75324	2	Cylinder Head	WITHOUT HUB, (SUB (2) H117614, (40) 19H2676, (40) H99923, (40) 12H304)
14	H117614	2	Threshing Cylinder Head	-
15	AH75101	1	Threshing CYL Head (W/HUB)	(SUB AH114503)
15	AH114503	1	Threshing Cylinder Head	-
16	19M7402	40	Cap Screw	M10 X 25, (USE WITH METRIC RASP BARS)
16	19H2554	40	Cap Screw	3/8" X 5/8", (USE WITH STANDARD RASP BARS)
16	12H304	40	Lock Washer	3/8", (USE WITH STANDARD RASP BARS)
17	19H1820	2	Cap Screw	1/2" X 3"
17	P3629H	2	Lock Washer	(SUB 12H301)
17	12H301	2	Lock Washer	1/2"
17	14H1040	2	Nut	1/2"
18	AH75104	1	Rasp Bar	RH, (STANDARD) (HARDENED) (CONTAINS (2) RASP BARS) (SUB AH161415)
18	AH161415	1	Rasp Bar	RH, (METRIC) (HARDENED) (CONTAINS (2) RASP BARS) (ALSO ORDER AH163921) (SUB AH221676)
18	AH161413	1	Rasp Bar	LH, (METRIC) (HARDENED), (SUB FOR AH75105 (STANDARD)) (CONTAINS (2) RASP BARS) (ALSO ORDER AH163921), (SUB AH221675)
19	24H1303	2	WASHER	13/32" X 11/16" X 0.065", (USE FOR LEVELING CONCAVE)
20	19M7783	40	Screw	M10 X 16, (USE WITH METRIC RASP BARS)
20	H135891	40	Lock Nut	(USE WITH METRIC RASP BARS)
20	H99923	40	Lock Nut	(USE WITH STANDARD RASP BARS)
20	R42729	40	Washer	(USE WITH STANDARD RASP BARS)
20	19H3239	40	Cap Screw	3/8" X 1-1/4", (USE WITH STANDARD RASP BARS)
21	AH86896	1	Rasp-Bar Cylinder	(SUB AH117623) (HARDENED RASP BARS)
21	AH117623	1	Rasp-Bar Cylinder	(CHROMED RASP BARS)
22	19H2676	40	Cap Screw	3/8" X 1", (SUB (40) 19H3239)
22	19H3239	40	Cap Screw	3/8" X 1-1/4"
22	H99923	40	Lock Nut	-
23	H79485	8	Plate	(SUB H117621)
23	H117621	8	Plate	-
24	H96408	1	V-Belt	3-BANDED CYLINDER (390 TO 1030 RPM OR 450 TO 1200 RPM)
24	H96423	1	V-Belt	3-BANDED CYLINDER (315 TO 830 RPM)
25	H96414	1	V-Belt	BEATER
..	AH163921	1	Hardware Kit	RASP BAR HARDWARE, (INCLUDES (14) 19M7783, (14) 19M7402 AND (14) H135891)
