Открытый узел

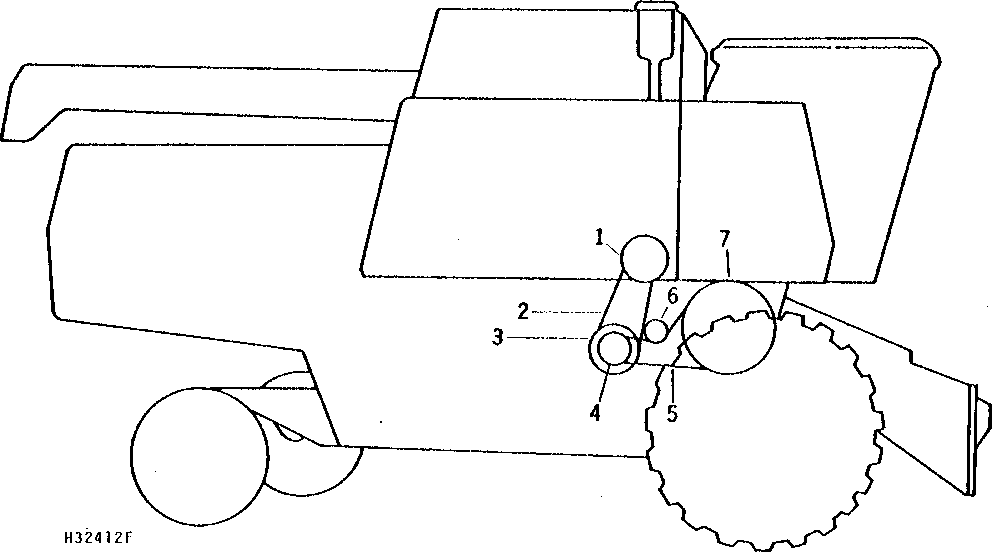

PRIMARY COUNTERSHAFT TO CYLINDER DRIVE, BELTS, SHEAVES, AND TIGHTENERS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH92908	1	Pulley	412 MM (16-1/4") DIA., OUTER, PRIMARY COUNTERSHAFT
1	AH111379	1	Pulley	412 MM (16-1/4") DIA., OUTER, PRIMARY COUNTERSHAFT
1	H93627	1	Half Sheave	413 MM (16-1/4") DIA, PRIMARY COUNTERSHAFT
2	H113749	1	V-Belt	DRIVE, TORQ-SENSING COUNTERSHAFT
2	H161339	1	V-Belt	HEAVY DUTY
3	H96051	1	Half Sheave	FIXED, 413 MM (16-1/4") DIA, TORQ-SENSING COUNTERSHAFT
3	H93633	1	Pulley	413 MM (16-1/4") DIA., SLIDING, TORQ-SENSING COUNTERSHAFT (SUB H107391)
3	H107391	1	Pulley	413 MM (16-1/4") DIA., SLIDING, TORQ-SENSING COUNTERSHAFT (SUB H107689)
3	H110112	1	Pulley	SLIDING, 413 MM (16-1/4") DIA., TORQ-SENSING COUNTERSHAFT, (SUB FOR H107689)
4	H93641	1	Pulley	229 MM (9-19/64") DIA., DRIVE, CYLINDER, (4 GROOVE) (390 TO 1030 RPM)
4	H93646	1	Pulley	191 MM (7-1/2") DIA., DRIVE, CYLINDER, (4 GROOVE) (315 TO 830 RPM)
4	H110253	1	Pulley	295 MM (11-21/32") DIA., DRIVE, CYLINDER (4 GROOVE)(STANDARD) (350 TO 700 RPM AND 620 TO 1240 RPM)
4	H93641	1	Pulley	229 MM (9-19/64") DIA., DRIVE, CYLINDER, (4 GROOVE)(OPTIONAL)(280 TO 500 RPM AND 500 TO 1000 RPM)
4	H93643	1	Pulley	273 MM (10-3/4") DIA., DRIVE, CYLINDER, 4 GROOVE) (450 TO 1200 RPM) (SUB FOR H93642)
5	H96408	1	V-Belt	CYLINDER, 3-BANDED (390 TO 1030 RPM OR 450 TO 1200 RPM)
5	H96423	1	V-Belt	CYLINDER, 3-BANDED (315 TO 830 RPM)
5	H96422	1	V-Belt	CYLINDER, 4-BANDED (OPTIONAL) (280 TO 560 RPM AND 500 TO 1000 RPM)
5	H110375	1	V-Belt	CYLINDER, 4-BANDED (STANDARD) (350 TO 700 RPM AND 620 TO 1240 RPM)
6	AH111447	1	Idler	165 MM (6-1/2") DIA., (SUB FOR AH93316)
7	H93644	1	Pulley	569 MM (22-13/32") DIA., DRIVEN, CYLINDER, (3 GROOVE)
7	H110374	1	Pulley	559 MM (22") DIA., DRIVEN, CYLINDER

PRIMARY COUNTERSHAFT TO CYLINDER DRIVE, BELTS, SHEAVES, AND TIGHTENERS

Нет текстового описания
