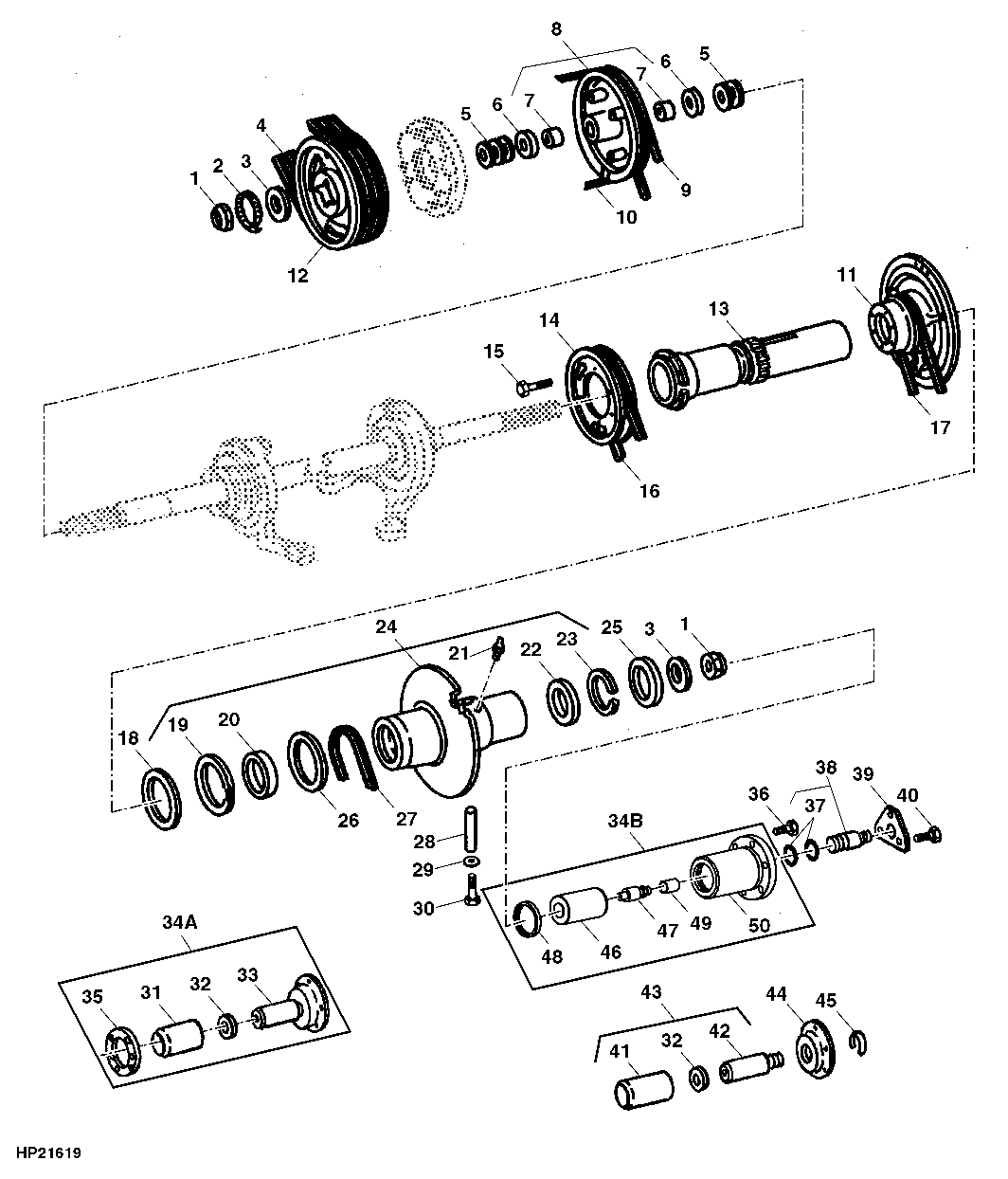

PRIMARY COUNTERSHAFT SHEAVES (DUAL - RANGE CYLINDER DRIVE) (551901 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H82620	2	Lock Nut	-
2	H77698	1	Tie Band	-
3	24H1668	2	Washer	1-17/64" X 2-1/4" X 0.134"
4	H108175	1	V-Belt	-
5	24H1577	5	Washer	1-25/32" X 2-7/8" X 0.036"
6	AH76193	2	Seal	-
7	H96996	2	Bushing	-
8	AH95961	1	Pulley	370 MM (14-5/8") DIA., (VARIABLE DRIVE FEEDER HOUSE AND REEL DRIVE)
8	AH95961	1	Pulley	370 MM (14-5/8") DIA., (REGULAR FIXED DRIVE FEEDER HOUSE AND REEL DRIVE)
8	AH96107	1	Pulley	(REGULAR FIXED LESS REVERSER)
8	AH95961	1	Pulley	370 MM (14-5/8") DIA., (LONG FIXED DRIVE FEEDER HOUSE AND REEL DRIVE)
8	AH96106	1	Pulley	260 MM (10") DIA., (VARIABLE DRIVE) (SIDEHILL)
9	H86275	1	V-Belt	(HYDRAULIC REEL DRIVE)
9	H137207	1	V-Belt	(HYDRAULIC REEL DRIVE)
10	H23927	1	V-Belt	-
10	H76030	1	V-Belt	(REGULAR FIXED LESS REVERSER)
11	H93627	1	Half Sheave	413 MM (16-1/4") DIA.
12	H107310	1	Pulley	394 MM (15-1/2") DIA.
13	H113744	1	Housing	-
14	H94268	1	Pulley	294 MM (11-5/8") DIA.
15	19H1800	6	Cap Screw	3/8" X 1-1/2"
15	12H304	6	Lock Washer	3/8"
16	H101436	1	V-Belt	(STRAW CHOPPER)
17	H110300	1	V-Belt	(SECONDARY COUNTERSHAFT DRIVE)
18	AH94853	1	Seal	-
19	H93631	1	Snap Ring	-
20	H93630	1	Bushing	-
21	JD7798	1	Lubrication Fitting	(SPECIAL)
22	H113746	1	Bushing	-
23	P48691	1	Snap Ring	-
24	AH111379	1	Pulley	413 MM (16-1/4") DIA., (MARKED H113754)
25	AH87141	1	Seal	-
26	H110209	1	Back-Up Ring	RUBBER (USE WITH CHAIN DRIVE)
27	H113749	1	V-Belt	-
27	H161339	1	V-Belt	HEAVY DUTY
28	H102547	1	Pin Fastener	-
29	24H1176	2	Washer	13/32" X 1-1/4" X 0.100"
30	19H1936	2	Cap Screw	3/8" X 3/4"
31	-	1	Part 39	-
32	H97306	1	Seal	-
33	-	1	Part 41	-
35	H102533	1	Shim	(4 OR LESS USED), (USED WITH DUAL-RANGE CYLINDER DRIVE)
36	12H304	6	Lock Washer	3/8"
36	19H1732	6	Cap Screw	3/8" X 1-1/4"
37	32238	2	Packing	-
38	AH92255	1	Coupling	-
39	H93386	1	Retainer	-
40	19H1900	3	Cap Screw	5/16" X 3/4"
40	12H303	3	Lock Washer	5/16"
41	H97305	1	Hydraulic Cylinder Barrel	(USED WITH CHAIN DRIVE)
42	H97304	1	Piston	(USED WITH CHAIN DRIVE)
43	AH92615	1	Cylinder	(USED WITH CHAIN DRIVE), (NEW COMPONENT)
44	H93385	1	Plate	(USED WITH CHAIN DRIVE)
45	R26219	1	Snap Ring	(USED WITH CHAIN DRIVE)
46	-	1	Part 57	-
47	AH139238	1	Union Fitting	-
48	H176205	1	Seal	-
49	-	1	Part 60	-
50	-	1	Part 61	-
34A	AH108867	1	Hydraulic Cylinder	(COMPLETE COMPONENT), (USED WITH DUAL-RANGE CYLINDER DRIVE)
34B	AH169769	1	Hydraulic Cylinder	(SUB FOR AH108867)

PRIMARY COUNTERSHAFT SHEAVES (DUAL - RANGE CYLINDER DRIVE) (551901 - )
