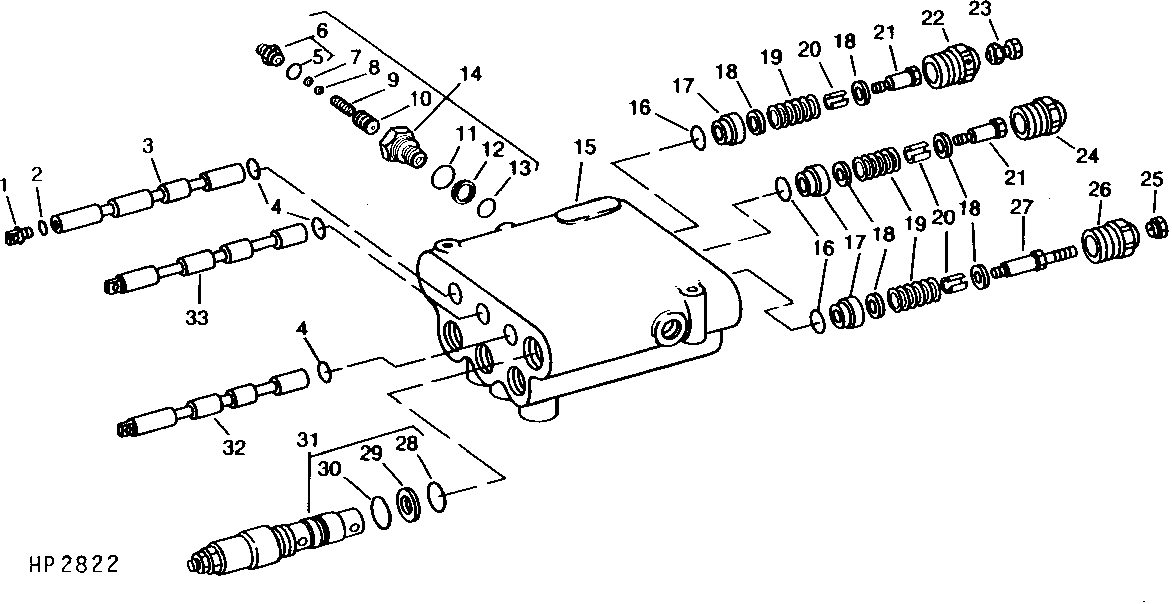

MAIN HYDRAULIC CONTROL VALVE SPOOLS AND RELIEF VALVE (620101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H80460	1	Clevis	-
2	A3917R	1	O-Ring	(KIT AH127847)
3	-	1	Part 3	(HEADER LIFT)
4	H36256	3	O-Ring	(KIT AH127847)
5	P46051	1	O-Ring	(KIT AH127847)
6	-	1	Part 6	WITH O-RING (AUTOMATIC HEADER HEIGHT CONTROL)
7	H102493	1	ORIFICE	-
8	-	1	Part 8	-
9	-	1	Part 9	-
10	-	1	Part 10	-
11	T13119	1	O-Ring	(KIT AH127847 AND AH78796)
12	N140001	1	BACK-UP RING	(KIT AH78796 AND AH127847)
13	R27166	1	O-Ring	(KIT AH127847)
14	AH101625	1	Hyd Actuated Control Valve	-
15	-	1	Part 15	-
16	H132571	3	O-Ring	(KIT AH127847)
17	N111488	3	BUSHING	-
18	N31767	6	WASHER	-
19	H60819	3	SPRING	-
20	H62801	3	BUSHING	-
21	H63987	2	CAP SCREW	-
22	AH78797	1	Plug	WITH FILTER
23	19H2551	1	Cap Screw	5/16" X 3/4"
23	14H882	1	Nut	5/16"
24	AH78788	1	PLUG	WITH FILTER
25	H80459	1	Lock Nut	-
26	H80456	1	Cap	-
27	H80455	1	Screw	-
28	H30843	1	O-Ring	(KIT AH127847)
29	H132651	1	Back-Up Ring	(KIT AH127847)
30	U46731	1	O-Ring	(KIT AH127847)
31	AH126201	1	Pressure Relief Valve	-
32	-	1	Part 33	(HYDRAULIC REEL LIFT)
33	-	1	Part 34	(POSI-TORQ GROUND SPEED)
..	AH125749	1	Hyd Actuated Control Valve	3 SPOOL, (REMANUFACTURED)
..	AH127847	1	Seal Kit	SEAL REPAIR (CONTROL VALVE)
..	AH78796	1	Seal Kit	(FLOW CONTROL PLUG)

MAIN HYDRAULIC CONTROL VALVE SPOOLS AND RELIEF VALVE (620101 - )
