LOWER TAILINGS AUGER, SHAFT, AND TIGHTENER (610301 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH84244	1	Drive Sprocket	Z=18
2	22H817	2	Set Screw	3/8" X 3/4"
2	14H732	2	Nut	3/8"
3	22H897	2	Set Screw	1/4" X 1/4"
4	JD8554	2	Eccentric Locking Collar	-
5	H76654	4	Pressed Flanged Housing	-
6	AH169077	2	Ball Bearing	(SUB FOR JD9273), (SUB AH214862)
6	AH214862	2	Ball Bearing	-
7	03H1540	6	Bolt	5/16" X 3/4"
7	12H303	6	Lock Washer	5/16"
7	14H785	6	Nut	5/16"
8	H108576	1	Chain Sprocket	Z=8
9	-	2	Part 13	(1/4" X 1/4" X 1-1/2"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
10	H89517	1	Shaft	-
11	P5424H	1	Shaft Key	-
12	11H244	1	Cotter Pin	3/16" X 2-1/2"
13	-	1	Part 17	16 MM (5/8") PITCH, ROLLER, TYPE 50, 41 LINKS, (ASSEMBLE FROM (4) AP6095H AND SW50OLUS)
14	03H1791	1	Bolt	5/16" X 2-1/2"
14	12H303	1	Lock Washer	5/16"
14	14H785	1	Nut	5/16"
15	H109735	1	Tightener	-
16	24H1136	1	Washer	11/32" X 11/16" X 0.065"
17	AH96257	1	Chain Sprocket	Z=18
18	22H897	2	Set Screw	1/4" X 1/4"
19	JD8594	2	Eccentric Locking Collar	-
20	H103265	4	Pressed Flanged Housing	-
21	JD8593	2	Ball Bearing	-
22	AH122335	1	Auger	-
23	26H19	1	Shaft Key	1/4" X 7/8"
24	03H1765	6	Bolt	3/8" X 3/4"
24	12H304	6	Lock Washer	3/8"
24	14H812	6	NUT	3/8"
25	H125875	1	Cover	-
26	22H818	2	Set Screw	5/16" X 3/4"
26	14H611	2	Nut	5/16"
27	H85015	1	Hub	-
28	Z699H	2	SLIP CLUTCH	-
29	H97574	1	Hub	-
30	JD7797	1	Lubrication Fitting	STRAIGHT, 1/4"
31	AH118447	1	Pulley	279 MM (11") DIA.
32	H118730	1	Belting	-
33	J21022	1	Spring	-
34	AH97146	1	Nut	-
35	11H249	1	Cotter Pin	1/4" X 2"
36	19H1905	6	Cap Screw	5/16" X 1"
36	12H303	6	Lock Washer	5/16"
36	14H785	6	Nut	5/16"

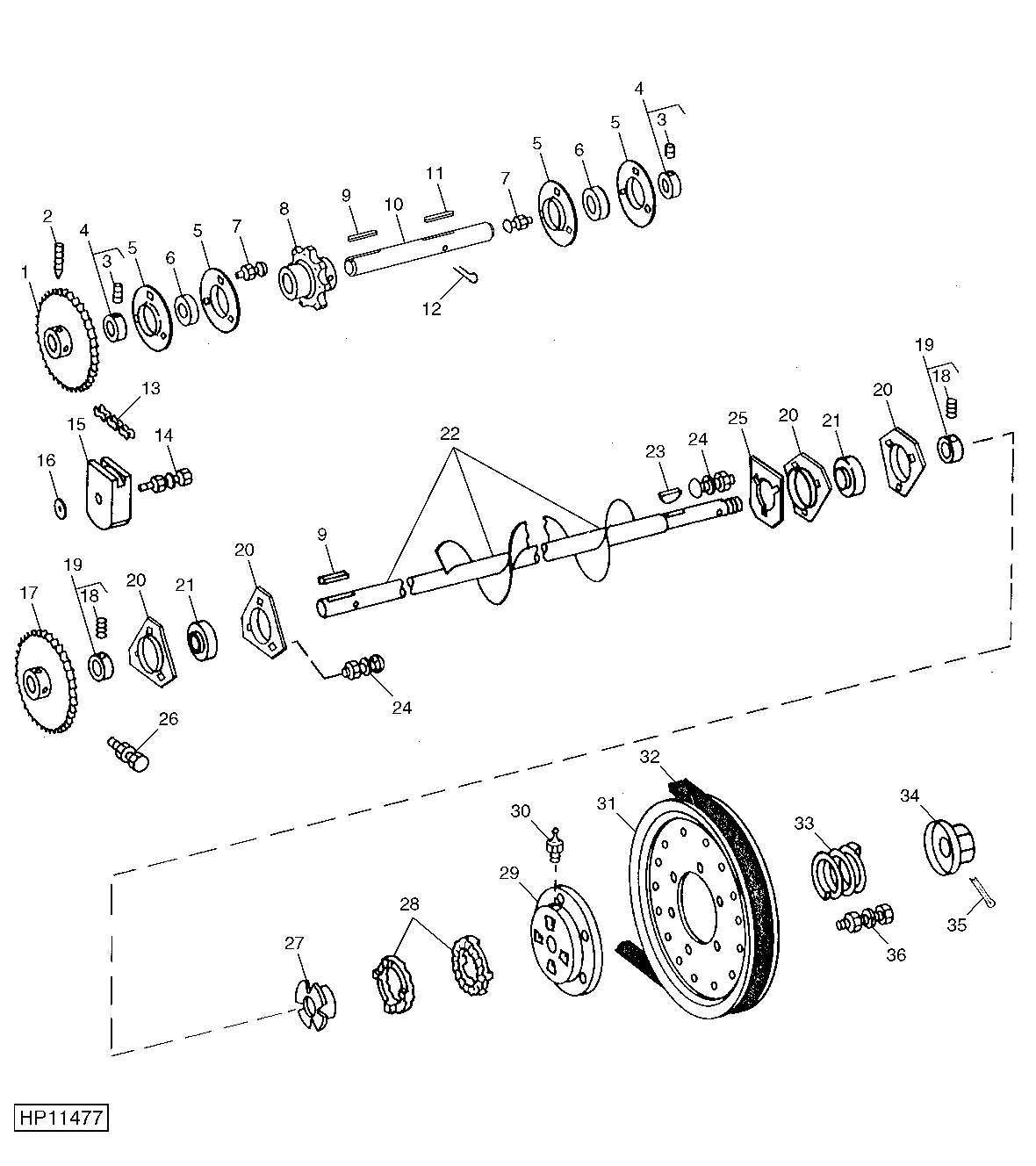

LOWER TAILINGS AUGER, SHAFT, AND TIGHTENER (610301 - )
