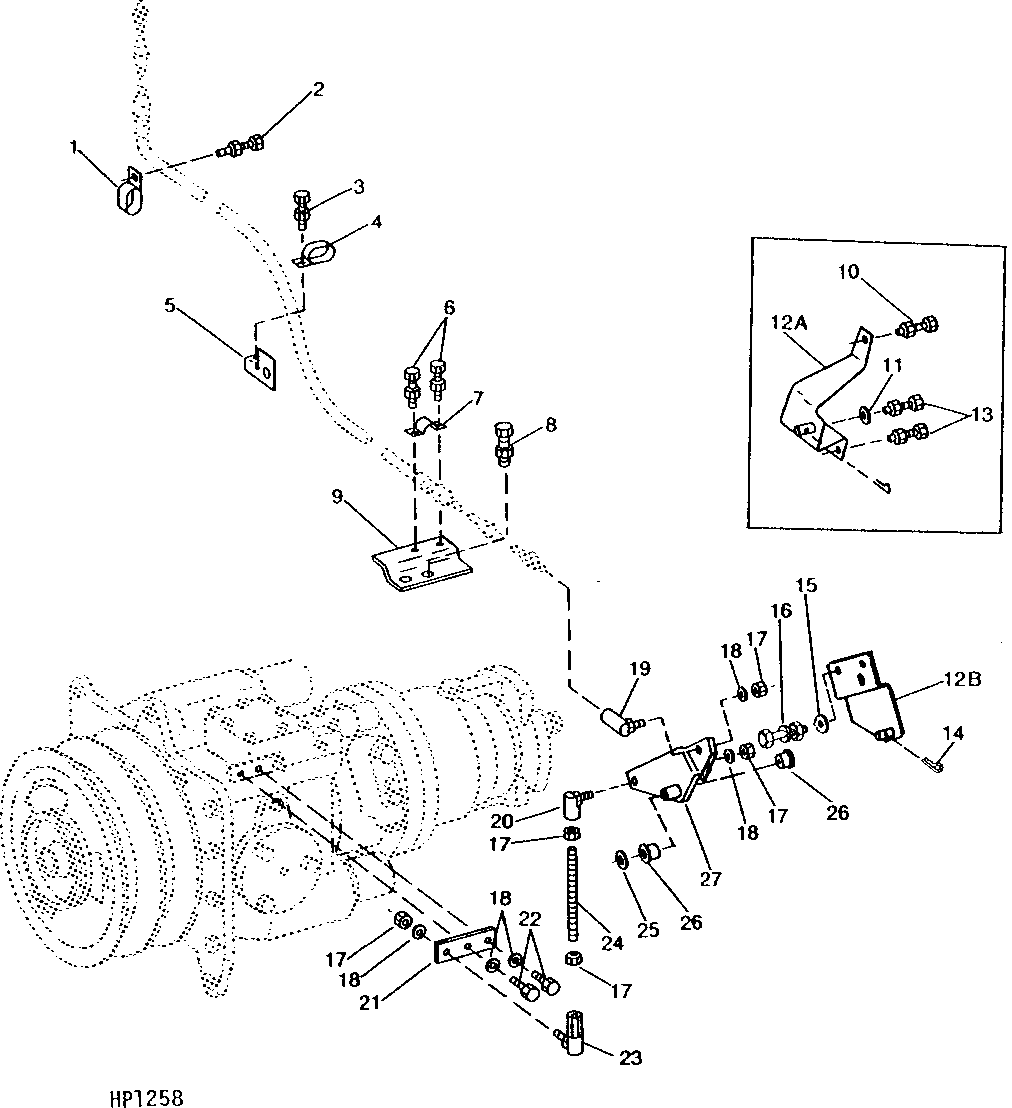

HYDROSTATIC DRIVE CONTROL CABLE MOUNTING (SUNDSTRAND) ( - 610300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH77869	1	Clip	-
2	N10216	1	Self-Locking Screw	-
2	14H786	1	Nut	1/4"
2	12H302	1	Lock Washer	1/4"
3	19H1900	1	Cap Screw	5/16" X 3/4"
3	12H303	1	Lock Washer	5/16"
3	14H785	1	Nut	5/16"
4	AH78237	1	Clamp	-
5	H99524	1	Bracket	-
6	19H2961	2	Screw	0.190" X 3/4"
6	12H246	2	LOCK WASHER	0.190"
6	14H778	2	Nut	0.190"
7	H100165	1	Clamp	-
8	19H1731	1	Cap Screw	3/8" X 1"
8	14H812	1	NUT	3/8"
8	12H304	1	Lock Washer	3/8"
9	H99862	1	Bracket	-
10	N11220	1	Bushing	-
10	N10213	1	Lock Nut	-
11	24H1304	1	WASHER	13/32" X 23/32" X 0.120"
13	14H812	2	NUT	3/8"
13	12H304	2	Lock Washer	3/8"
13	19H1731	2	Cap Screw	3/8" X 1"
14	11H234	1	Cotter Pin	3/32" X 1"
15	24H1305	1	Washer	13/32" X 13/16" X 0.065"
16	19H1732	2	Cap Screw	3/8" X 1-1/4"
16	12H304	2	Lock Washer	3/8"
16	14H812	2	NUT	3/8"
17	14H650	5	Nut	5/16"
18	12H303	5	Lock Washer	5/16"
19	AH98290	1	Ball Joint	-
20	AM35116	1	Ball Joint	(SUB AM38386)
20	AM38386	1	Ball Joint	(SUB AM38782)
20	AM38782	1	Ball Joint	-
21	H98352	1	Strap	(SUB H123032)
21	H123032	1	Arm	-
22	19H1900	2	Cap Screw	5/16" X 3/4"
23	AH98289	1	Ball Joint	-
24	H99860	1	Stud	-
25	24H1338	1	Washer	33/64" X 7/8" X 0.048"
26	H93442	2	Washer	-
27	AH101684	1	Crank	(NO LONGER AVAILABLE)
27	AH108366	1	Crank	-
12A	AXE13896	1	Support	(SUB FOR AH101685) (USE WITH AH231234)
12B	AH108367	1	Bracket	-

HYDROSTATIC DRIVE CONTROL CABLE MOUNTING (SUNDSTRAND) ( - 610300)
