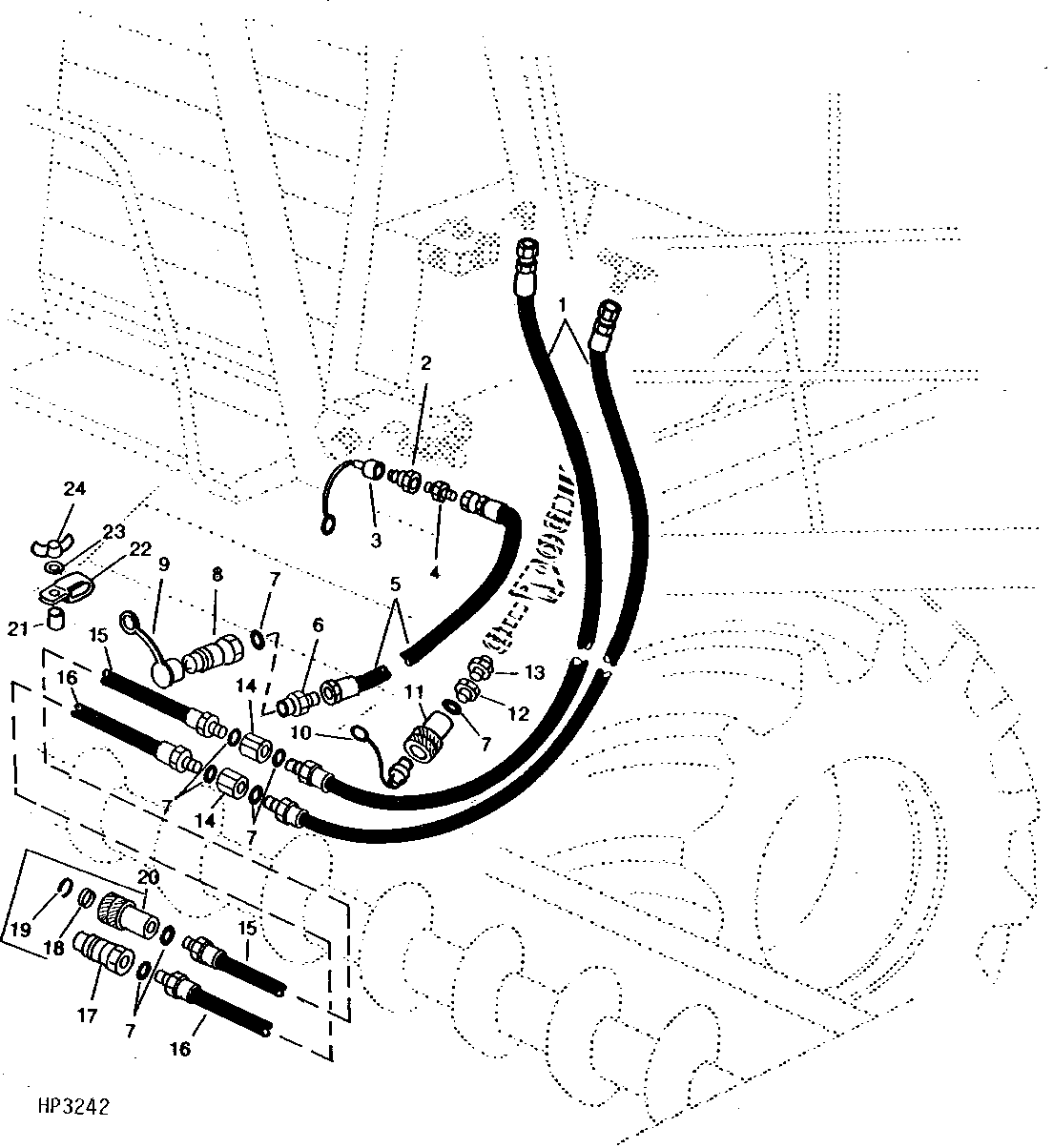

Hoses and couplers for combines (600001 - 622500)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH112765	2	Hydraulic Hose	12.7 MM X 3400 MM (1/2" X 134"), (LONG FEEDER HOUSE) (REEL DRIVE)
1	AH112761	2	Hydraulic Hose	12.7 MM X 3000 MM (1/2" X 118"), (REGULAR FEEDER HOUSE) (REEL DRIVE)
2	AH15939	1	Hydr. Quick Coupler Plug	-
3	AH83821	1	Cap	-
4	R26892	1	Fitting	-
5	AH108418	1	Hose	9/16" X 2159 mm (85") X 9/16", (REGULAR FEEDER HOUSE) (REEL LIFT)
5	AN180524	1	Hydraulic Hose	9/16" X 2590 mm (102") X 9/16", (LONG FEEDER HOUSE) (REEL LIFT)
5	AN180523	1	Hydraulic Hose	9/16" X 2336 mm (92") X 9/16", (SIDEHILL) (REEL LIFT)
6	R36426	1	Fitting	-
7	R26375	8	O-Ring	-
8	AR94522	1	Hydr. Quick Coupler Plug	-
9	A15898	1	Cap	-
10	AW17006	2	Plug	-
11	AH75167	1	Hydr. Quick Coupler Socket	-
12	H35112	1	Adapter Fitting	-
13	AH92199	1	Threaded Nipple	(FILTERED)
14	R30815	2	Fitting	-
15	AH128371	1	Hydraulic Hose	3/4" X 1100 mm (43-1/4") X 3/4", (REGULAR FEEDER HOUSE) (REEL DRIVE PRESSURE)
15	AH128372	1	Hydraulic Hose	3/4" X 1400 mm (55") X 3/4", (LONG FEEDER HOUSE) (REEL DRIVE PRESSURE)
16	AH128372	1	Hydraulic Hose	3/4" X 1400 mm (55") X 3/4", (REGULAR FEEDER HOUSE) (REEL DRIVE RETURN)
16	AH128373	1	Hydraulic Hose	3/4" X 1700 mm (67") X 3/4", (LONG FEEDER HOUSE) (REEL DRIVE RETURN)
17	AR94522	1	Hydr. Quick Coupler Plug	-
18	L24517	1	Back-Up Ring	USE WITH AEROQUIP COUPLER
19	T12960	1	SNAP RING	USE WITH AEROQUIP COUPLER
20	AH75167	1	Hydr. Quick Coupler Socket	-
21	28H1903	1	Bushing	0.364" X 0.540" X 3/4"
21	28H3240	1	Spacer	0.423" X 0.675" X 25/32", (6620 SIDEHILL)
22	AH77869	2	Clip	-
23	12H303	1	Lock Washer	5/16"
23	12H304	1	Lock Washer	3/8", (6620 SIDEHILL)
24	14H819	1	Wing Nut	5/16"
24	14H827	1	Wing Nut	3/8", (6620 SIDEHILL)

Hoses and couplers for combines (600001 - 622500)
