FUEL INJECTION PUMP, NOZZLES AND FUEL PIPES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	16H644	1	RIVET	1/4" X 1/2"
2	R69319	21	Clamp	(SUB FOR R34766 OR AR48236)
3	T23425	7	BOOT	-
4	R60877	2	LINE	-
5	R60876	2	FUEL LINE	-
6	R62245	2	FUEL LINE	-
7	AR76502	1	FUEL LINE	-
8	R54088	1	Fuel Line	(SUB AR104650)
9	AR88495	1	FUEL LINE	(SUB RE27786), (ALSO ORDER R79138 AND RE23319)
10	R69319	6	Clamp	(SUB R76170, THIS APPLICATION)
11	R76170	6	CLAMP	(USE WITH AR88495)
12	AR96862	1	FUEL LINE	NO. 6, (SUB FOR AR69451)
13	AR96861	1	FUEL LINE	NO. 5, (SUB FOR AR69450)
14	AR96860	1	FUEL LINE	NO. 4, (SUB FOR AR69449)
15	R58186	4	Clamp	(ALSO INCLUDES (2) R61144, (2) R59305, (2) 21H1463 OR (2) 12H246)
16	AR96859	1	FUEL LINE	NO. 3 (SUB FOR AR69448)
17	AR96858	1	FUEL LINE	NO. 2 (SUB FOR AR69447)
18	AR96857	1	FUEL LINE	NO. 1 (SUB FOR AR69446)
19	R59302	2	CLAMP	-
19	R61147	1	RETAINER	-
19	R59304	1	REINFORCEMENT	-
19	21H1463	5	Cap Screw	0.190" X 7/8"
19	12H246	5	LOCK WASHER	0.190"
20	R76568	1	ABSORBER	-
21	R59297	2	Half Clamp	-
21	R61145	1	Strap	-
21	R59298	1	Strap	-
21	21H1463	2	Cap Screw	0.190" X 7/8"
21	12H246	2	LOCK WASHER	0.190"
22	R64840	1	Washer	-
23	-	6	Part 31	(SUB AR74665 OR SE500103)
24	R77551	6	O-Ring	(VITON) (USE WITH R87082)
24	R59294	6	SEALING RING	(USE WITH R59293 OR R83558)
25	R59293	6	FITTING	(SUB (6) R87082 AND (6) R77551)
25	R87082	6	Fitting	(ALSO ORDER R77551)
25	R83558	6	FITTING	(SUB R87082 AND R77551)
26	R51936	12	Sealing Washer	-
26	R51936	11	Sealing Washer	-
27	RE23319	2	FUEL LINE	SUB FOR RE15806
28	R79604	6	Tube Nut	-
29	R79605	6	Washer	-
30	R79606	6	Tee Fitting	-
31	RE15807	3	Fuel Line	-
32	RE15808	2	Fuel Line	-
33	RE27786	1	FUEL LINE	LEAK-OFF (SUB FOR RE15805 AND RE21103), (ALSO ORDER RE23319 AND R79138)
34	R79138	2	SLEEVE	(NO LONGER REQUIRED)
35	AR88120	1	TEE FITTING	-
36	R51936	3	Sealing Washer	(SUB FOR R63603)
37	AR104650	1	Fuel Line	(SUB FOR AR93093)
38	AR88496	1	FUEL LINE	-
39	RE28880	1	Fuel Injection Pump	(SUB FOR AR88908, AR99939, RE28886 OR RE10470), (ALSO ORDER R53899, 51M4237, AR81002 AND (2) 19M7692)
40	R68274	1	GEAR	(SUB FOR AR88905, THIS APPLICATION)
41	AR59115	3	SELF-LOCKING SCREW	-
42	R32511	4	NUT	9.525 mm (3/8")
43	R42729	4	Washer	-
44	R55396	4	STUD	-
45	-	1	Part 57	(SUB RE20042 AND (2) AR104674)
46	AR26746	2	Elbow Fitting	(ALSO ORDER R26287)
46	R79060	2	O-Ring	(SUB FOR R26287, THIS APPLICATION)
47	R39832	1	Adapter Fitting	(USE WITH AR91012)
48	AR61514	1	Line	(TO R39832 IN BLOCK)
48	AR91012	1	LINE	(SUB RE38732), (ALSO ORDER R76822)
49	AR87443	1	UNION FITTING	(NO LONGER REQUIRED)
50	AR85519	1	Plug	-
51	R51937	1	Tube Nut	-

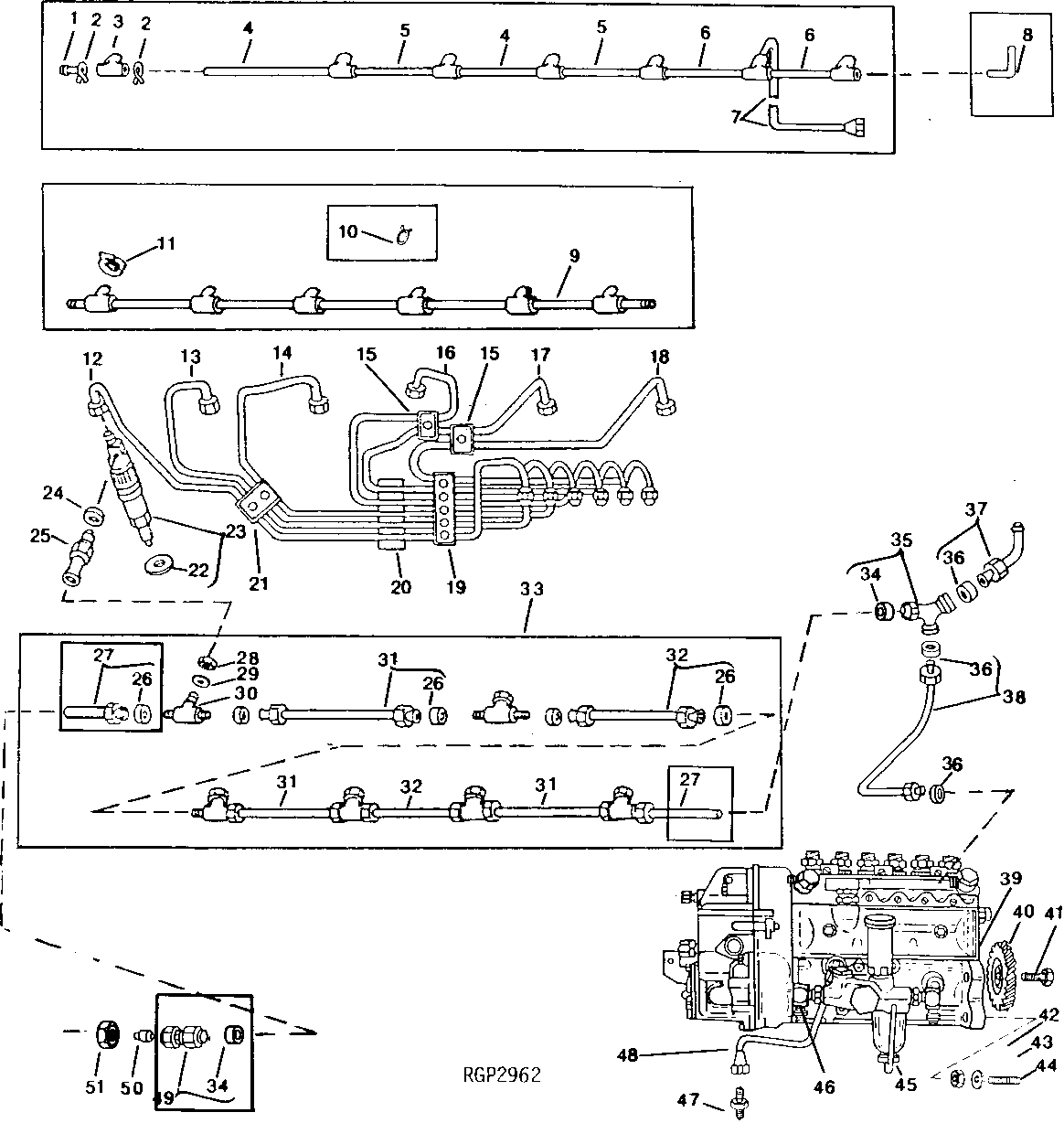

FUEL INJECTION PUMP, NOZZLES AND FUEL PIPES
