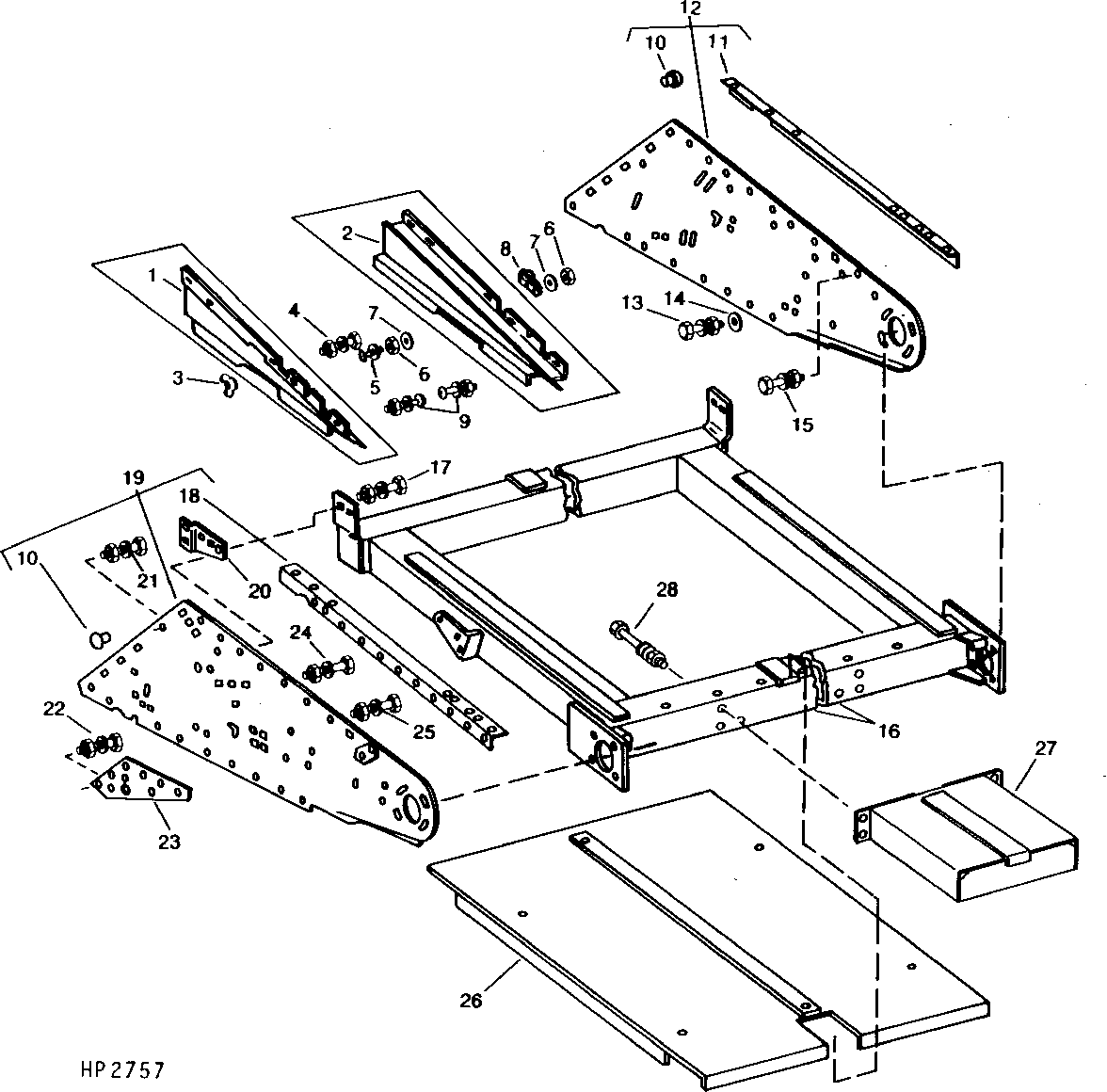

FEEDER HOUSE SIDE SHEETS AND FRAME (SIDEHILL) (403301 - 610300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H103996	1	Shield	INNER, LH
2	H103995	1	Shield	INNER, RH
3	14H827	1	Wing Nut	3/8"
4	19H2471	1	CAP SCREW	3/8" X 1-1/2"
4	12H304	1	Lock Washer	3/8"
4	14H812	1	NUT	3/8"
5	21H1137	1	Screw	5/16" X 1-1/4"
5	12H303	2	Lock Washer	5/16"
6	14H785	2	Nut	5/16"
7	24H1136	2	Washer	11/32" X 11/16" X 0.065"
8	AH77869	1	Clip	-
9	21H1321	4	Screw	3/8" X 3/4"
9	12H304	4	Lock Washer	3/8"
9	14H812	4	NUT	3/8"
10	16H697	2	Rivet	1/4" X 1"
10	16H658	14	Rivet	1/4" X 5/8"
11	H78274	1	Flange	-
12	AH102724	1	Sheet	SIDE, RH
12	AH111668	1	Sheet	SIDE, RH
13	19H1936	1	Cap Screw	3/8" X 3/4"
13	12H304	1	Lock Washer	3/8"
13	14H812	1	NUT	3/8"
14	24H1305	1	Washer	13/32" X 13/16" X 0.065"
15	03H1709	2	Bolt	5/16" X 1"
15	12H303	2	Lock Washer	5/16"
15	14H785	2	Nut	5/16"
16	AH101582	1	Frame	-
16	AH111498	1	Frame	(SUB AH114396)
16	AH114396	1	Frame	-
17	03H1801	3	Bolt	5/8" X 1-3/4"
17	14H1039	3	Nut	5/8"
17	12H294	3	Lock Washer	5/8"
18	H78273	1	Flange	-
19	AH102725	1	Sheet	LH
19	AH111651	1	Sheet	-
20	H102102	1	Gusset	LH
20	H102103	1	Gusset	RH
21	03H1540	8	Bolt	5/16" X 3/4"
21	12H303	8	Lock Washer	5/16"
21	14H785	8	Nut	5/16"
22	19H1936	2	Cap Screw	3/8" X 3/4"
22	12H304	2	Lock Washer	3/8"
22	14H812	2	NUT	3/8"
23	AH97051	1	Plate	RH
23	H102082	1	Plate	LH
24	03H2321	2	Bolt	5/16" X 1-1/4"
24	12H303	2	Lock Washer	5/16"
24	14H785	2	Nut	5/16"
25	03H1500	4	Bolt	3/8" X 1"
25	12H304	4	Lock Washer	3/8"
25	14H812	4	NUT	3/8"
26	AH102054	1	Bottom	FALSE
26	AH111493	1	Bottom	FALSE
27	AH123769	1	Bottom	-
28	12H304	6	Lock Washer	3/8"
28	14H812	6	NUT	3/8"
28	19H2205	6	CAP SCREW	3/8" X 6"
28	24H1305	4	Washer	13/32" X 13/16" X 0.065"

FEEDER HOUSE SIDE SHEETS AND FRAME (SIDEHILL) (403301 - 610300)
