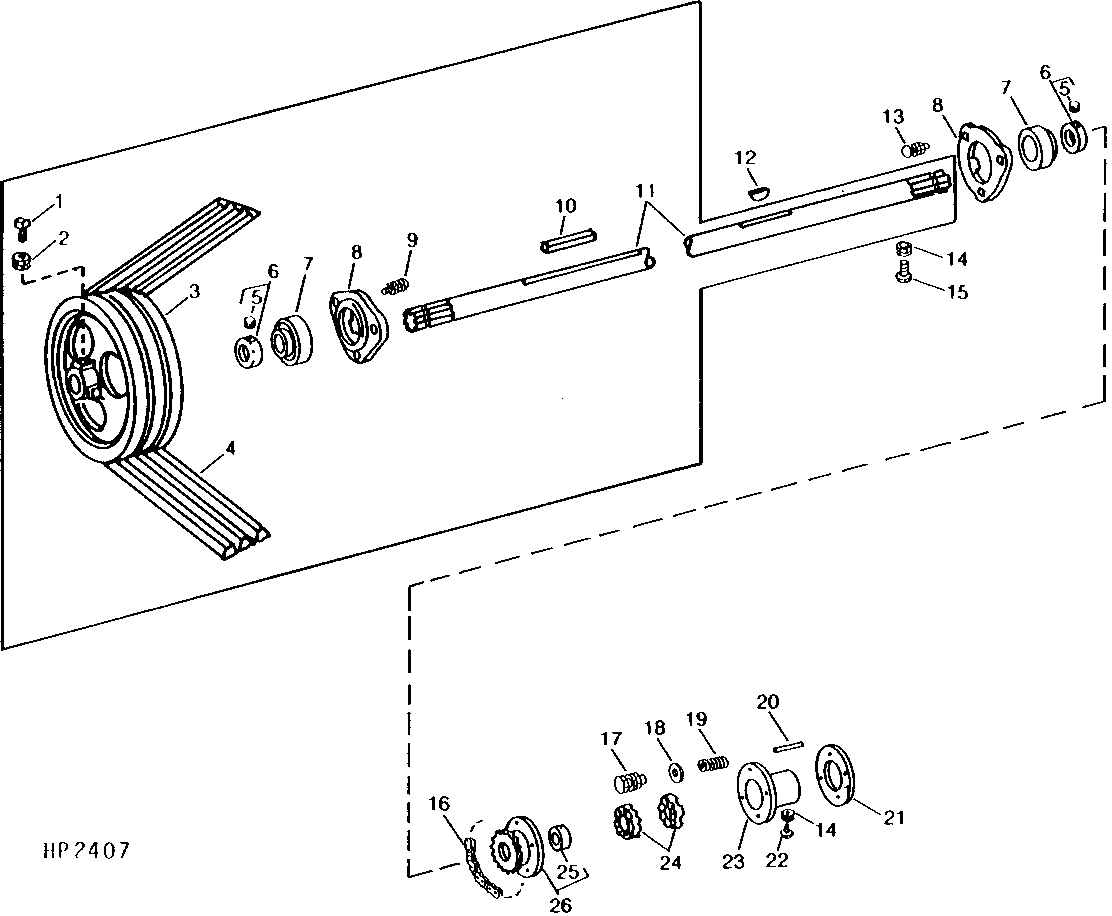

FEEDER HOUSE LOWER SHAFT AND SHEAVE (SIDEHILL) (403301 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H82306	2	Screw	-
2	14H732	2	Nut	3/8"
3	H84444	1	Pulley	305 MM (12") DIA.
4	AH89436	1	Belt Set	MULTI-GROOVE
5	-	2	Part 5	-
5	-	1	Part 6	-
6	JD9201	2	Eccentric Locking Collar	-
6	JD9201	1	Eccentric Locking Collar	-
7	JD9202	2	Ball Bearing	-
7	JD9202	1	Ball Bearing	-
8	H93927	2	Housing	-
8	H93927	1	Housing	-
9	03H1557	3	Bolt	3/8" X 1-1/4"
9	N10215	3	Lock Nut	-
10	-	1	Part 15	(3/8" X 3/8" X 3-3/8"), (CUT FROM H64376 IN AH64587 KEY STOCK KIT)
11	H102194	1	Shaft	-
12	26H42	1	Shaft Key	3/8" X 2-1/8"
13	03H1495	3	Bolt	3/8" X 1-1/2"
13	N10215	3	Lock Nut	-
14	14H826	2	Nut	1/2"
15	22H884	1	Set Screw	1/2" X 1"
16	-	1	Part 22	19 MM (3/4") PITCH, ROLLER, TYPE 60, 83 LINKS, (ASSEMBLED FROM AB1288H, (3) AB1290H, SW60RLUS, B5235H AND SW60OLUS)
17	19H2345	4	Cap Screw	3/8" X 5-1/2"
17	H99923	8	Lock Nut	9.525 mm (3/8"), (SUB FOR H86656)
18	24H1311	4	Washer	13/32" X 1-1/4" X 0.220"
19	H77433	4	Compression Spring	-
20	H99973	4	Spacer	-
21	H98633	1	Spacer	-
22	22H984	1	SET SCREW	1/2" X 3/4"
23	H10821	1	Hub	-
24	Z699H	2	SLIP CLUTCH	-
25	A4539R	1	Bushing	-
26	AH97096	1	Chain Sprocket	Z=15

FEEDER HOUSE LOWER SHAFT AND SHEAVE (SIDEHILL) (403301 - )
