FEEDER HOUSE FRONT SHEETS (SIDEHILL) (403301 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH89467	1	Pin Fastener	-
2	AH101934	1	Housing	INNER
2	AH115313	1	Housing	INNER (WITH DECAL)
3	H85554	1	Washer	-
4	14H975	1	Nut	1-1/4"
5	H82620	1	Lock Nut	(SUB T27821, THIS APPLICATION)
5	T27821	1	LOCK NUT	-
6	JD7759	1	Lubrication Fitting	-
7	03H1540	4	Bolt	5/16" X 3/4"
7	12H303	4	Lock Washer	5/16"
7	14H785	4	Nut	5/16"
8	24H1136	4	Washer	11/32" X 11/16" X 0.065"
9	H106878	1	Shield	RH
9	H106879	1	Shield	LH
10	H88310	1	Deflector	(SUB H108670)
10	H108670	1	Deflector	-
11	U13486	2	BUSHING	-
12	AH94775	1	Support	-
13	19H1756	6	Cap Screw	5/8" X 1-1/2"
14	AP26398	2	Ball Bearing	-
15	H98201	2	Housing	-
16	H98345	1	Strap	(3 OR LESS USED)
17	12H294	2	Lock Washer	5/8"
18	19H1756	2	Cap Screw	5/8" X 1-1/2", (PLATFORM ATTACHING HARDWARE)
18	12H294	2	Lock Washer	5/8"
19	H20895	2	WASHER	-
20	19H3189	1	CAP SCREW	1/2" X 3"
21	124424	2	Compression Spring	-
22	H89360	2	Pin Fastener	-
23	03H1765	6	Bolt	3/8" X 3/4"
23	N10215	6	Lock Nut	-
24	H88161	2	STRIPPER	-
25	JD7806	2	Lubrication Fitting	-
26	03H1540	7	Bolt	5/16" X 3/4"
26	N10213	7	Lock Nut	-
27	03H1540	7	Bolt	5/16" X 3/4"
27	12H303	7	Lock Washer	5/16"
27	14H785	7	Nut	5/16"
28	H108671	1	Extension	-
29	H108672	1	Retainer	-
30	H100065	1	Safety Sign	(WARNING)

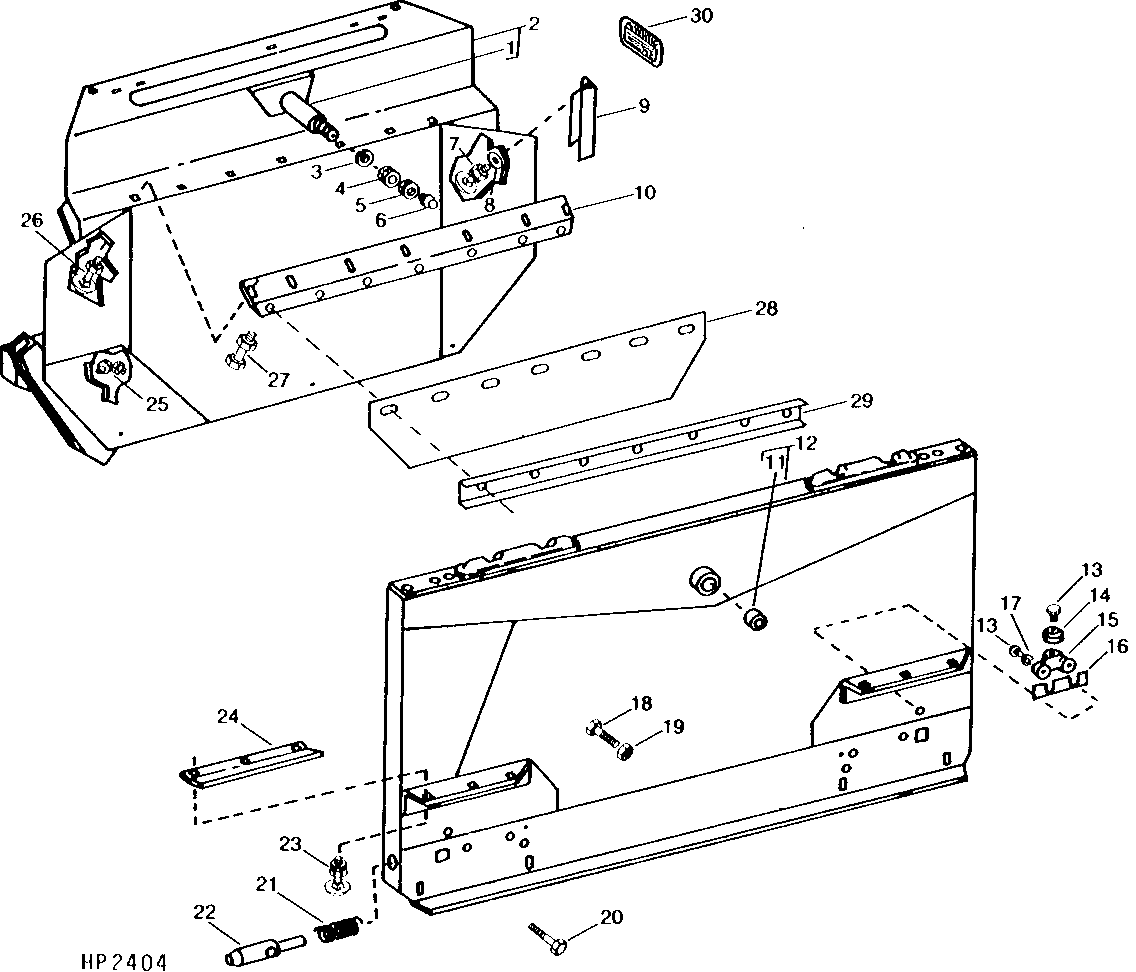

FEEDER HOUSE FRONT SHEETS (SIDEHILL) (403301 - )
