DIP AND POUR ELEVATOR CONVEYOR CHAIN AND UPPER SPROCKETS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H303	2	Lock Washer	5/16"
1	03H1544	2	Bolt	5/16" X 1-1/4"
1	14H785	2	Nut	5/16"
2	H85684	1	Strap	-
3	24H1305	4	Washer	13/32" X 13/16" X 0.065"
4	H85735	2	Bolt	-
5	14H812	2	NUT	3/8"
6	AH86768	4	Chain Sprocket	Z=60
7	03H1540	12	Bolt	5/16" X 3/4"
7	12H303	12	Lock Washer	5/16"
7	14H785	12	Nut	5/16"
8	AH80508	2	Bracket	-
9	22H897	4	Set Screw	1/4" X 1/4"
10	JD8554	4	Eccentric Locking Collar	-
11	H87472	8	Pressed Flanged Housing	-
11	H103264	8	Pressed Flanged Housing	-
12	JD8665	4	Ball Bearing	-
13	P49158	5	Shaft Key	-
13	-	5	Part 19	(1/4" X 1/4" X 1-1/2"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
14	H85718	1	Shaft	-
15	34H94	4	Spring Pin	7/32" X 1-3/4"
16	AH86762	40	Conveyor	(BUCKET)
16	BP10236	1	Track Chain W/O Shoes	-
16	M16591	1	CLAMP	(5 PER PACKAGE)
16	AE23791	1	Chain Link	-
16	P29361	1	PIN	-
16	11H230	1	COTTER PIN	1/16" X 3/8"
16	BP10238	1	Track Chain W/O Shoes	-
16	16H249	160	Rivet	3/16" X 3/8"
16	AH86766	80	Link Chain	-
16	AH86763	1	Link Chain	-
17	H10334	1	Hub	-
18	-	1	Part 33	16 MM (5/8") PITCH, ROLLER, TYPE 50, 119 LINKS, (ASSEMBLED FROM (2) AP6093H, AP6095H, (4) SW50RLUS, (4) SW50COUS AND SW50OLUS)
19	H23218	1	Chain Sprocket	Z=70
20	19H1732	4	Cap Screw	3/8" X 1-1/4"
20	12H304	4	Lock Washer	3/8"
20	14H812	4	NUT	3/8"
21	H85726	1	Shaft	DRIVE
22	22H907	2	Set Screw	5/16" X 7/8"
22	14H611	2	Nut	5/16"

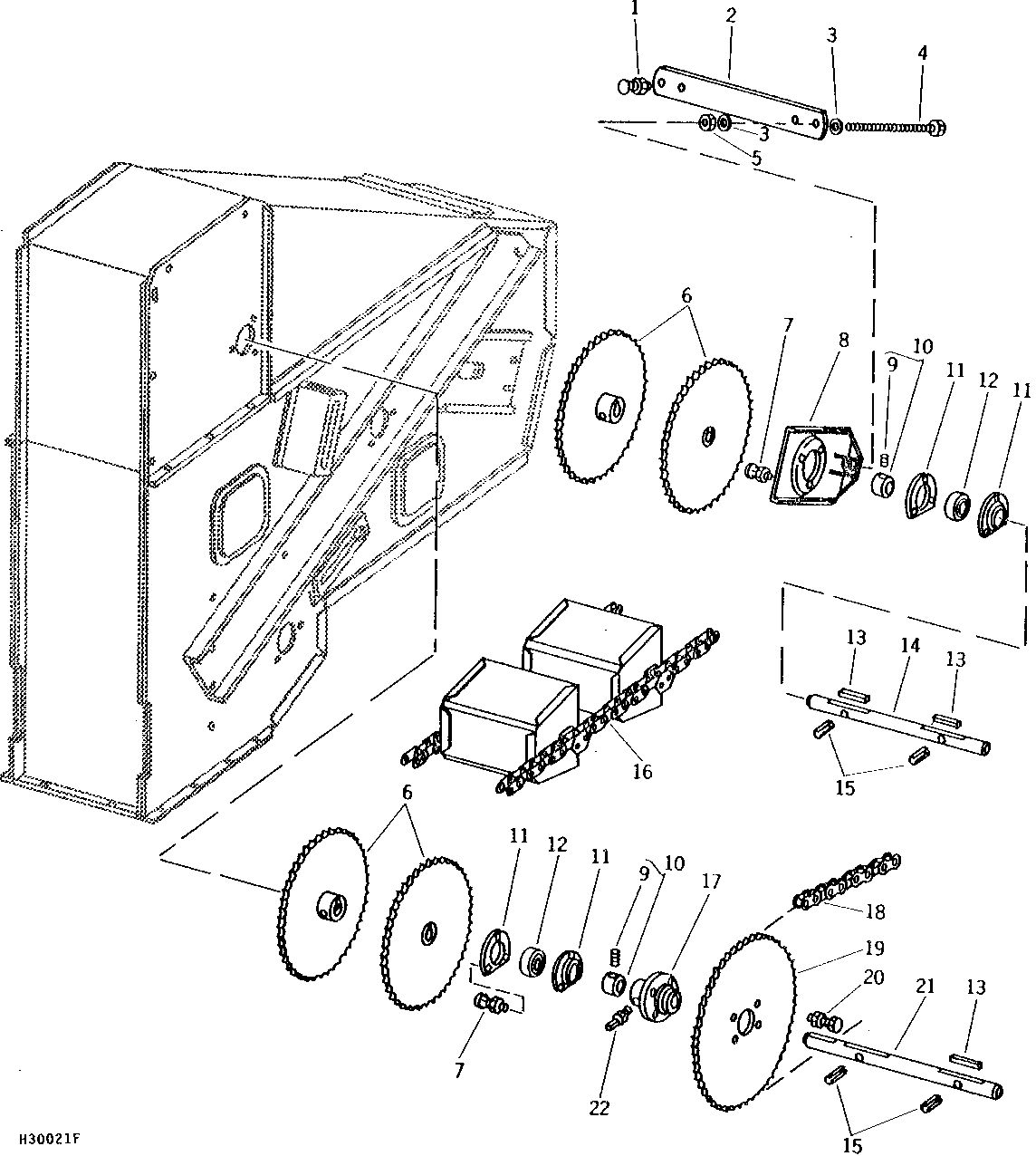

DIP AND POUR ELEVATOR CONVEYOR CHAIN AND UPPER SPROCKETS
