Открытый узел

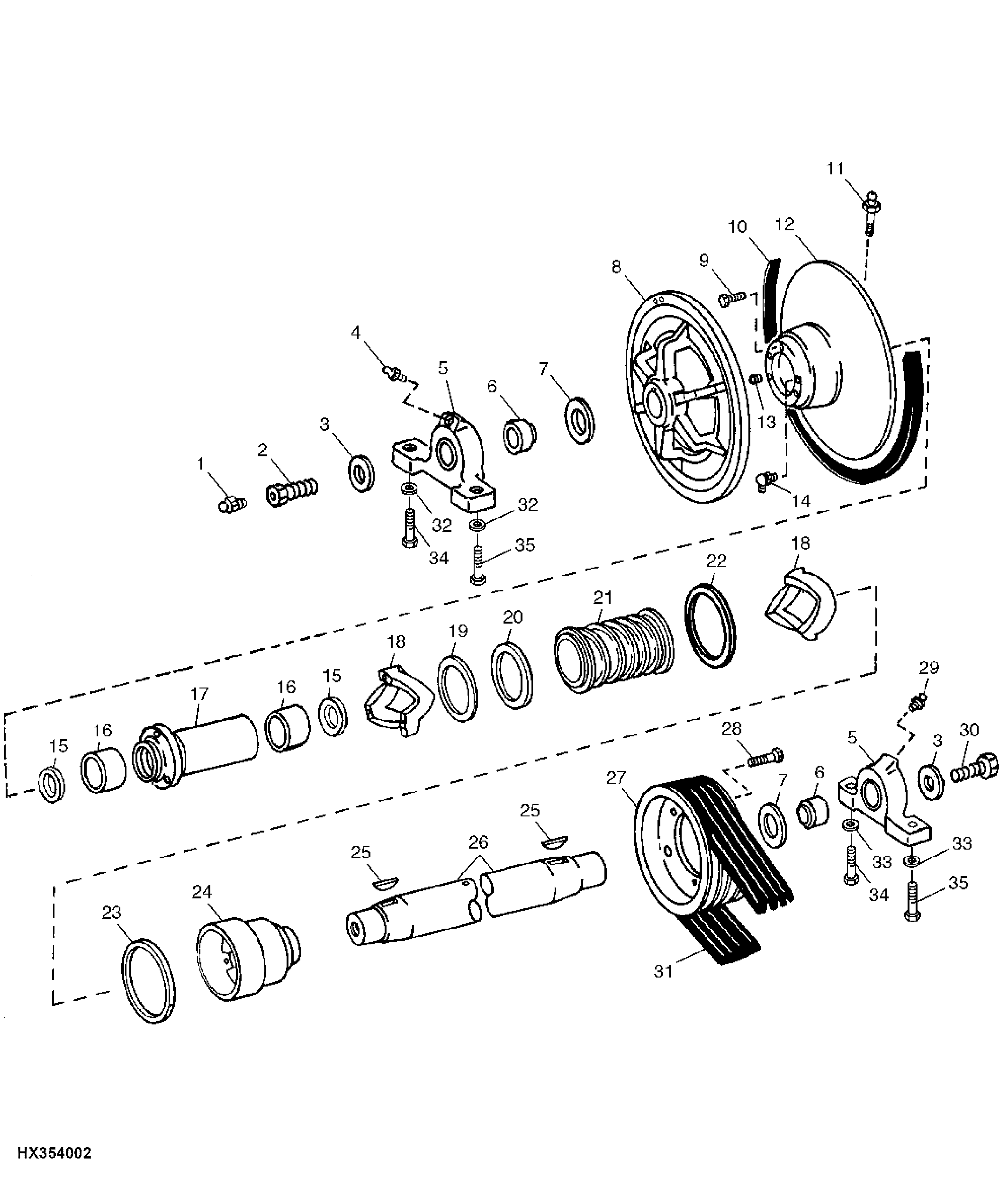

Cylinder Drive Intermediate Shaft, Dual Range Cylinder Drive (551901 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7797	1	Lubrication Fitting	-
2	H96228	1	Screw	-
3	R20135	2	Washer	-
3	P46993	2	Washer	(SUB R20135)
4	JD7759	1	Lubrication Fitting	-
5	H119210	2	Housing	(SUB H203974 ) (SUB FOR H110290)
5	H203974	2	Bearing Housing W/O Bearing	(ALSO ORDER (AR) 19M7815)
6	AH108813	2	Ball Bearing	-
7	E18993	2	Washer	-
8	H96051	1	Half Sheave	413 MM (16-1/4") DIA.
9	19H3239	3	Cap Screw	3/8" X 1-1/4"
9	12H304	3	Lock Washer	3/8"
10	H161339	1	V-Belt	HEAVY DUTY
10	H113749	1	V-Belt	-
11	JD7819	1	Lubrication Fitting	-
12	H110112	1	Pulley	413 MM (16-1/4") DIA.
13	AH106296	1	Breather	-
14	JD7806	1	Lubrication Fitting	-
15	AH94850	2	Seal	USE WITH H107390
16	H106866	2	Bushing	USE WITH H107390
17	H107390	1	Hub	SUB FOR AH111135, ALSO ORDER (2) AH94850 AND (2) H106866
18	HXE14650	2	Cam	SUB FOR H93637
19	H96227	1	Washer	-
20	H96232	1	Washer	-
21	AH110307	1	Spring	-
22	AH94854	1	Seal	(SUB AH136497)
22	AH136497	1	Seal	-
23	H107389	1	Ring	-
24	H105359	1	Hub	-
25	26H104	2	Shaft Key	5/16" X 2-1/8"
26	H93655	1	Shaft	-
27	H110253	1	Pulley	295 MM (11-21/32") DIA. (350 TO 700 RPM AND 620 TO 1240 RPM), (4-GROOVE) (STANDARD)
27	H93641	1	Pulley	229 MM (9-19/64") DIA. (280 TO 560 RPM AND 500 TO 1000 RPM), (4-GROOVE) (OPTIONAL)
27	H119189	1	Pulley	152.4 (17.8") DIA. (160 TO 320 RPM AND 285 TO 570 RPM), (4 GROOVE) (OPTIONAL)
28	19H3581	3	Screw	3/8" X 3-1/4", (USE WITH 160 TO 320 RPM AND 285 TO 570 RPM)
28	12H304	3	Lock Washer	3/8"
28	19H2458	3	Cap Screw	3/8" X 3"
29	JD7839	1	Lubrication Fitting	-
30	19H1756	1	Cap Screw	5/8" X 1-1/2"
31	H110375	1	V-Belt	(350 TO 750 RPM AND 620 TP 1240 RPM), (4-BANDED) (STANDARD)
31	H96422	1	V-Belt	(280 TO 560 AND 500 TO 1000 RPM), (4-BANDED) (OPTIONAL)
31	H96421	1	V-Belt	(160 TO 320 RPM AND 285 TO 570 RPM), (4-BANDED) (OPTIONAL)
32	T20217	2	Washer	-
33	T29342	2	Washer	-
34	19H3520	2	Cap Screw	1/2" X 3-1/4", (USE WITH H110290 OR H119210)
35	19H2644	2	Cap Screw	1/2" X 2-1/2", (USE WITH H110290 OR H119210)
35	19M7815	4	Screw	M12 X 60, (USE WITH H203974)

Cylinder Drive Intermediate Shaft, Dual Range Cylinder Drive (551901 - )

Нет текстового описания
