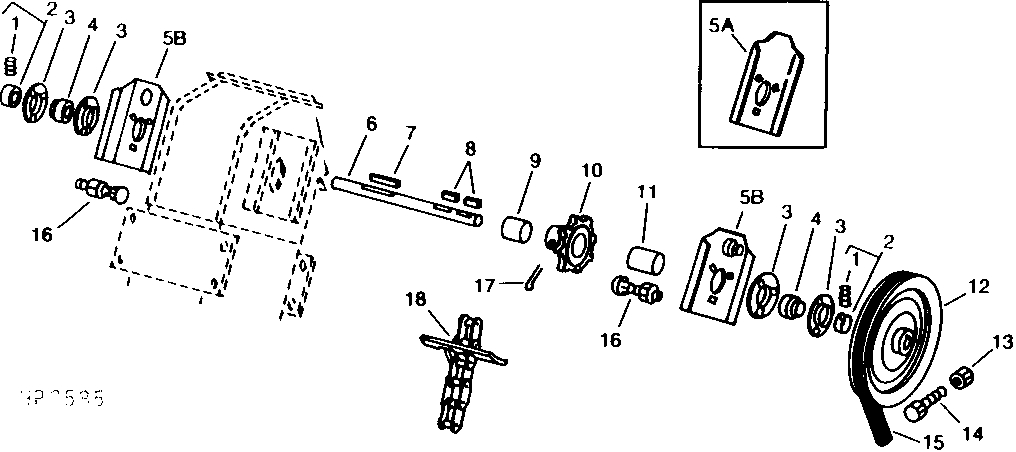

CLEAN GRAIN ELEVATOR CONVEYOR CHAIN, SHAFT, SHEAVE, AND SPROCKET

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H897	2	Set Screw	1/4" X 1/4"
2	JD8554	2	Eccentric Locking Collar	-
3	H103264	4	Pressed Flanged Housing	(SUB FOR H87472)
4	AH169077	2	Ball Bearing	(SUB FOR JD9273), (SUB AH214862)
6	H82948	1	Shaft	-
7	-	1	Part 9	(5/16" X 5/16" X 1-1/2"), (CUT FROM H64375 IN AH64587 KEY STOCK KIT)
8	-	2	Part 10	(1/4" X 1/4" X 1-1/4"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
9	H95028	1	Bushing	-
10	H108576	1	Chain Sprocket	8 TEETH, (SUB FOR H11340, THIS APPLICATION)
11	H95029	1	Bushing	-
12	AH75986	1	Pulley	270 MM (10-5/8") DIA.
13	14H732	2	Nut	3/8"
14	22H853	2	Set Screw	3/8" X 7/8"
15	H77766	1	V-Belt	ATTACHMENT
16	03H1540	6	Bolt	5/16" X 3/4", ATTACHMENT
16	14H785	6	Nut	5/16"
16	12H303	6	Lock Washer	5/16"
17	11H244	1	Cotter Pin	3/16" X 2-1/2"
18	AC14974	1	Pin Fastener	-
18	AH106958	1	Chain Link	(FOR BUCKETS)
18	AH87765	27	Chain Link	(FOR PADDLES)
18	14H786	1	Nut	1/4"
18	24H1286	54	Washer	9/32" X 1/2" X 1/16", (BUCKET)
18	19H1948	1	Cap Screw	1/4" X 3/4", (STEEL CLEANING PADDLE, 2 USED; BUCKET, 54 USED)
18	AH86897	54	Bolt	(PADDLE) (REPLACES RIVETS)
18	AH77055	27	Conveyor	(BUCKET)
18	H86760	1	Paddle	(STEEL CLEANING)
18	H86758	27	Paddle	(RUBBER)
18	C10263	1	Track Chain W/O Shoes	(FOR OFFSET LINK)
18	AC11779	1	Pin Fastener	-
18	C10233	1	Chain Link	(OFFSET)(WITH PIN)
18	C10232	1	Link	(ROLLER)
18	AH77067	1	Link Chain	(CA-550 ROLLER CHAIN) (27 BUCKETS)
18	AH87747	1	Link Chain	(CA-550 ROLLER CHAIN) (27 PADDLES)
5A	AH80508	2	Bracket	-
5B	AH125904	2	Bracket	-
5B	AH108918	2	Bracket	(SUB AH125904)

CLEAN GRAIN ELEVATOR CONVEYOR CHAIN, SHAFT, SHEAVE, AND SPROCKET
