Открытый узел

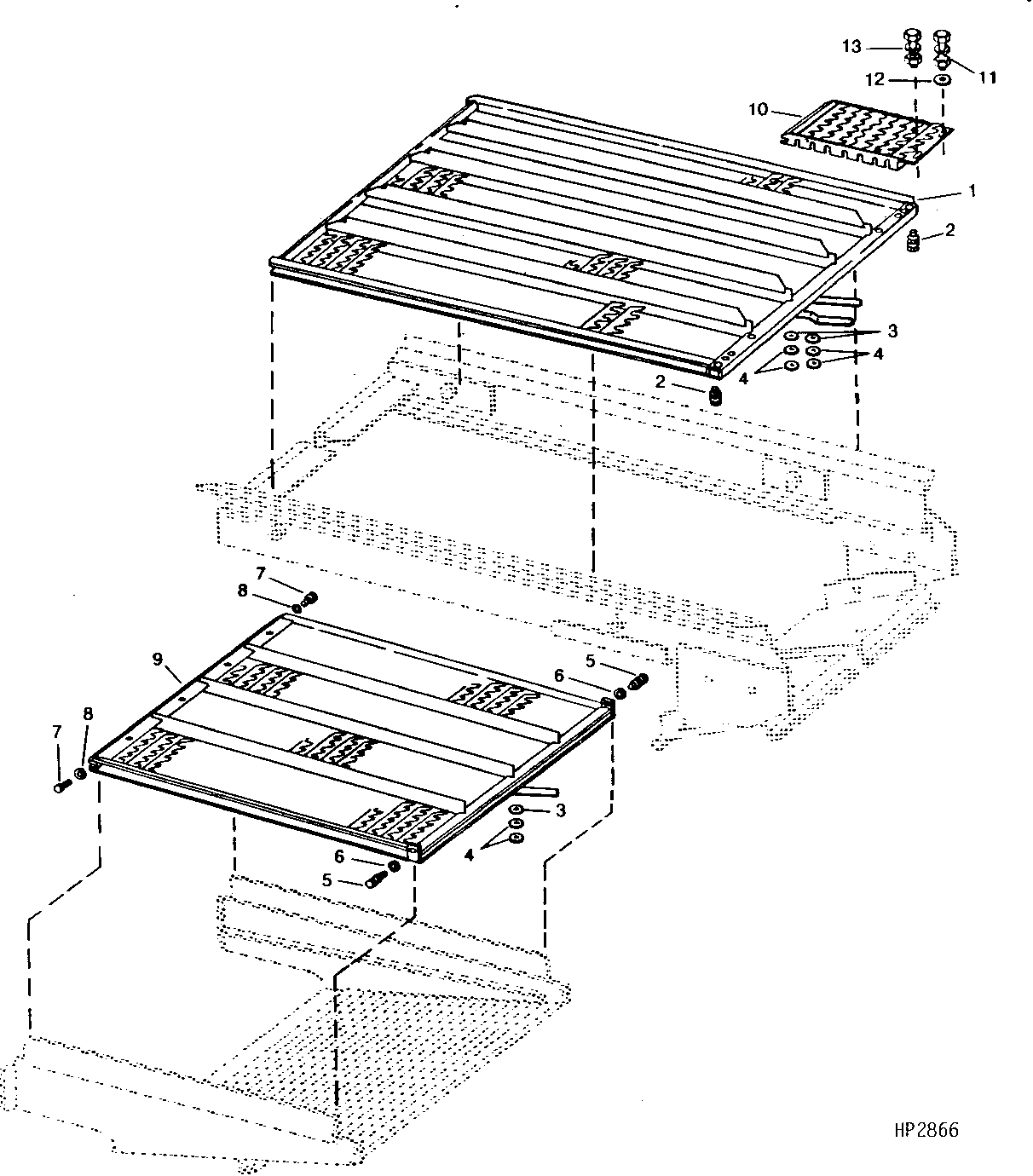

CHAFFER AND SIEVE ( - 620205)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH99748	1	Chaffer	(29 MM (1-1/8")), (REGULAR TOOTH SPACING)
1	AH118060	1	Chaffer	(USE WITH AH117075), (SUB AH125833)
1	AH125833	1	Chaffer	(29 MM (1-1/8"), (REGULAR TOOTH), (SUB AH130378)
1	AH99749	1	Chaffer	REGULAR TOOTH
1	AH118061	1	Chaffer	(USE WITH AH117767), (SUB AH125834)
1	AH125834	1	Chaffer	(41 MM (1-5/8"), (REGULAR TOOTH SPACING), (USE WITH AH117767) (SUB AH130379)
1	AH76947	1	Chaffer	(SUB AH99750)
1	AH99750	1	Chaffer	(41 MM (1-5/8"), (DEEP TOOTH SPACING)
1	AH118062	1	Chaffer	(USE WITH AH117081) (SUB AH125835)
1	AH125835	1	Chaffer	(1-5/8"), (DEEP TOOTH SPACING), (SUB AH130380)
1	AH128754	1	Chaffer	NON-ADJUSTABLE AIRFOIL
1	AH76939	1	Chaffer	(SUB AH99748)
2	14H809	2	Nut	1/2"
2	12H301	2	Lock Washer	1/2"
2	14H785	2	Nut	5/16"
2	19H1905	2	Cap Screw	5/16" X 1"
2	19H1805	2	CAP SCREW	1/2" X 2-1/4"
3	H126933	1	Washer	FRICTION (2 USED, CHAFFER; 1 USED, SIEVE)
4	H126934	1	Washer	SPRING (4 USED, CHAFFER; 2 USED, SIEVE)
5	12H301	2	Lock Washer	1/2", (USE WITH ADJUSTABLE SIEVE)
5	14H785	2	Nut	5/16", (USE WITH ROUND HOLE SIEVE)
5	12H303	2	Lock Washer	5/16", (USE WITH ROUND HOLE SIEVE)
5	19H1900	2	Cap Screw	5/16" X 3/4", (USE WITH ROUND HOLE SIEVE)
5	19H3530	2	Cap Screw	1/2" X 7/8", (SUB FOR 19H2548) (USE WITH ADJUSTABLE SIEVE)
5	14H785	2	Nut	5/16"
5	12H303	2	Lock Washer	5/16"
5	19H1900	2	Cap Screw	5/16" X 3/4", (USED WITH ROUND HOLE SIEVE)
6	24H1136	1	Washer	11/32" X 11/16" X 0.065", (2 USED WITH ADJUSTABLE SIEVE; 4 USED, RD. HOLE SIEVE)
6	24H1111	2	Washer	17/32" X 1-1/16" X 0.090", (USE WITH ADJUSTABLE SIEVE)
6	24H1136	2	Washer	11/32" X 11/16" X 0.065", (USE WITH ROUND HOLE SIEVE)
7	19H3530	2	Cap Screw	1/2" X 7/8", (USED WITH ADJUSTABLE SIEVE)
7	14H785	2	Nut	5/16"
7	12H303	2	Lock Washer	5/16"
7	12H301	2	Lock Washer	1/2"
7	19H1900	2	Cap Screw	5/16" X 3/4", (USED WITH RD. HOLE SIEVE)
8	24H1111	2	Washer	17/32" X 1-1/16" X 0.090", (USED WITH ADJUSTABLE SIEVE)
8	24H1136	2	Washer	11/32" X 11/16" X 0.065", (USED WITH RD. HOLE SIEVE)
9	AH125843	1	Sieve	DEEP TOOTH, (SUB FOR AH118064) (SUB AH127284)
9	AH127284	1	Sieve	DEEP TOOTH, (SUB AH130388)
9	AH98002	1	Sieve	DEEP TOOTH
9	AH118980	1	Sieve	(3 MM (1/10"), (FIXED RD. HOLES)
9	AH77804	1	Sieve	(3 MM (1/10"), (FIXED RD. HOLES)
9	AH118986	1	Sieve	(10 MM (3/8"), (FIXED RD. HOLES)
9	AH118983	1	Sieve	(7 MM (9/32"), (FIXED RD. HOLES)
9	AH77802	1	Sieve	(7 MM (9/32"), (FIXED RD. HOLES)
9	AH127283	1	Sieve	REGULAR TOOTH, (SUB AH130387)
9	AH125842	1	Sieve	REGULAR TOOTH, (SUB FOR AH118063) (SUB AH127283)
9	AH85352	1	Sieve	ADJUSTABLE
9	AH77803	1	Sieve	(10 MM (3/8"), (FIXED RD. HOLES)
10	AH117075	2	Chaffer	(USE WITH AH118060, AH125833 OR AH130378)
10	AH117081	2	Chaffer	(USE WITH AH118062, AH125835 OR AH130380)
10	AH117767	2	Chaffer	(USE WITH AH118061, AH125834 OR AH130379)
11	19H1913	2	Cap Screw	5/16" X 2-1/4", (WITH HARVESTRAK AND HEAVY DUTY REAR AXLE)
11	14H785	2	Nut	5/16"
11	12H303	2	Lock Washer	5/16"
11	19H1901	2	Cap Screw	5/16" X 2", (LESS HARVESTRAK, WITH HARVESTRAK AND ADJUSTABLE REAR AXLE)
12	24H1136	2	Washer	11/32" X 11/16" X 0.065", (LESS HARVESTRAK, WITH HARVESTRAK AND ADJUSTABLE REAR AXLE)
13	19H1913	2	Cap Screw	5/16" X 2-1/4", (WITH HARVESTRAK)
13	19H1901	2	Cap Screw	5/16" X 2", (LESS HARVESTRAK)
13	12H303	2	Lock Washer	5/16"
13	14H785	2	Nut	5/16"

CHAFFER AND SIEVE ( - 620205)
