TRANSMISSION ASSEMBLY & REVERSE SECOND SHAFT

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F121303RM	1	Transmission Reman	(SUB FOR <service-part qty="1">F121303</service-part>)13.7HR33624-5
2	-	1	Part 2	Electric
3	F432743	1	Pump	-
4	-	1	Part 4	-
5	-	1	Part 5	-
9	F432581	1	FLANGE -	-
11	F017021	1	Washer	(SUB FOR 841829000)
12	F432583	1	NUT*METRIC M40X1.5 -	-
13	F433217	1	O-RING -	-
14	F432581	1	FLANGE -	-
16	F017021	1	Washer	(SUB FOR 841829000)
17	F432583	1	NUT*METRIC M40X1.5 -	-
18	F433217	1	O-RING -	-
21	F432585	3	RING-PISTON -	-
22	F432605	1	RETAINING RING -	-
24	F434058	1	SHIM*.105-.108 -	.105 - .108
24	F432605	1	RETAINING RING -	If Required
24	F434061	1	SHIM*.090-.093 -	.090 - .093
24	F434060	1	SHIM*.095-.098 -	.095 - .098
24	F434059	1	SHIM*.100-.103 -	.100 - .103
24	F434057	1	SHIM*.110-.113 -	.110 - .113
25	F432587	1	BEARING -	-
26	JD9114	2	Bearing Cup	(SUB FOR <service-part qty="1">F433048</service-part>)CUP
27	F432588	1	RETAINING RING -	-
29	JD9049	2	Bearing Cone	(SUB FOR <service-part qty="1">F433045</service-part>)CONE
30	F433049	2	RING -	-
31	F432591	1	GEAR*36T -	-
32	T50616	1	Snap Ring	(SUB FOR 842252700)
34	F39010215	1	Snap Ring	(SUB FOR F432592)
35	F432593	1	RETAINER -	-
36	F432594	1	SPRING -	-
37	T50623	1	Snap Ring	(SUB FOR 840631000)
38	841412600	1	PLATE -	-
39	T39767	8	Clutch Plate	(SUB FOR <service-part qty="1">840619400</service-part>)OUTER
40	F432198	8	CLUTCH DISC - INNER	Inner
41	F432596	1	PISTON -	-
42	T39762	1	Piston Ring	(SUB FOR 840619500)
43	F432595	1	SEAL -	-
44	F434062	1	SHFT, DRUM & PL -	-
45	T39763	1	Seal	(SUB FOR 840623400)
46	T39762	1	Piston Ring	(SUB FOR 840619500)
47	843078900	1	PISTON -	-
48	T39767	7	Clutch Plate	(SUB FOR <service-part qty="1">840619400</service-part>)OUTER
49	841412500	7	CLUTCH DISC - INNER	Inner
50	841412600	1	PLATE -	-
51	T50623	1	Snap Ring	(SUB FOR 840631000)
52	F435665	1	RETAINER - CONSISTS OF TWO PIECES	CONSISTS OF TWO PIECES
53	F433047	1	SPRING -	-
56	T14931	1	Snap Ring	(SUB FOR 840636200)
57	D10259	1	Snap Ring	(SUB FOR 842816600)
58	F432601	1	RETAINING RING -	-
59	F432602	1	RING - LOCATING*.129/.127	LOCATING*.129 - .127
59	F432699	1	RING - LOCATING*.125/.123	LOCATING*.125 - .123
59	F432700	1	RING - LOCATING*.121/.119	LOCATING*.121 - .119
59	F432701	1	RING - LOCATING*.117/.115	LOCATING*.117 - .115
59	F432702	1	RING - LOCATING*.113/.111	LOCATING*.113 - .111
60	T50616	1	Snap Ring	(SUB FOR 842252700)
61	F432603	1	HUB 2ND CLUTCH -	-
62	F432646	1	BEARING - ROLLER	Roller
..	F433219	1	Seal Kit	TRANSMISSION SEAL KIT

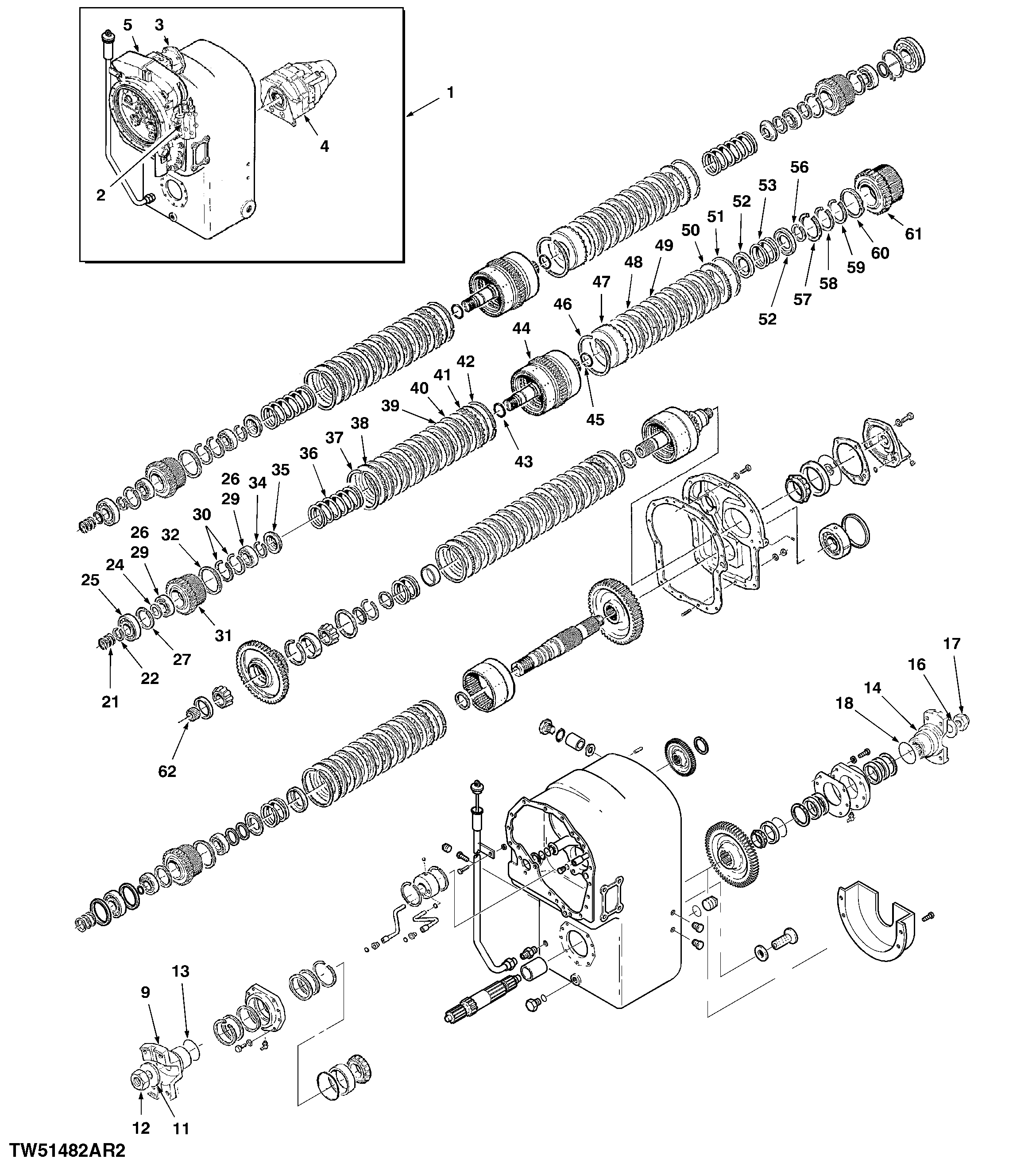

TRANSMISSION ASSEMBLY & REVERSE SECOND SHAFT
