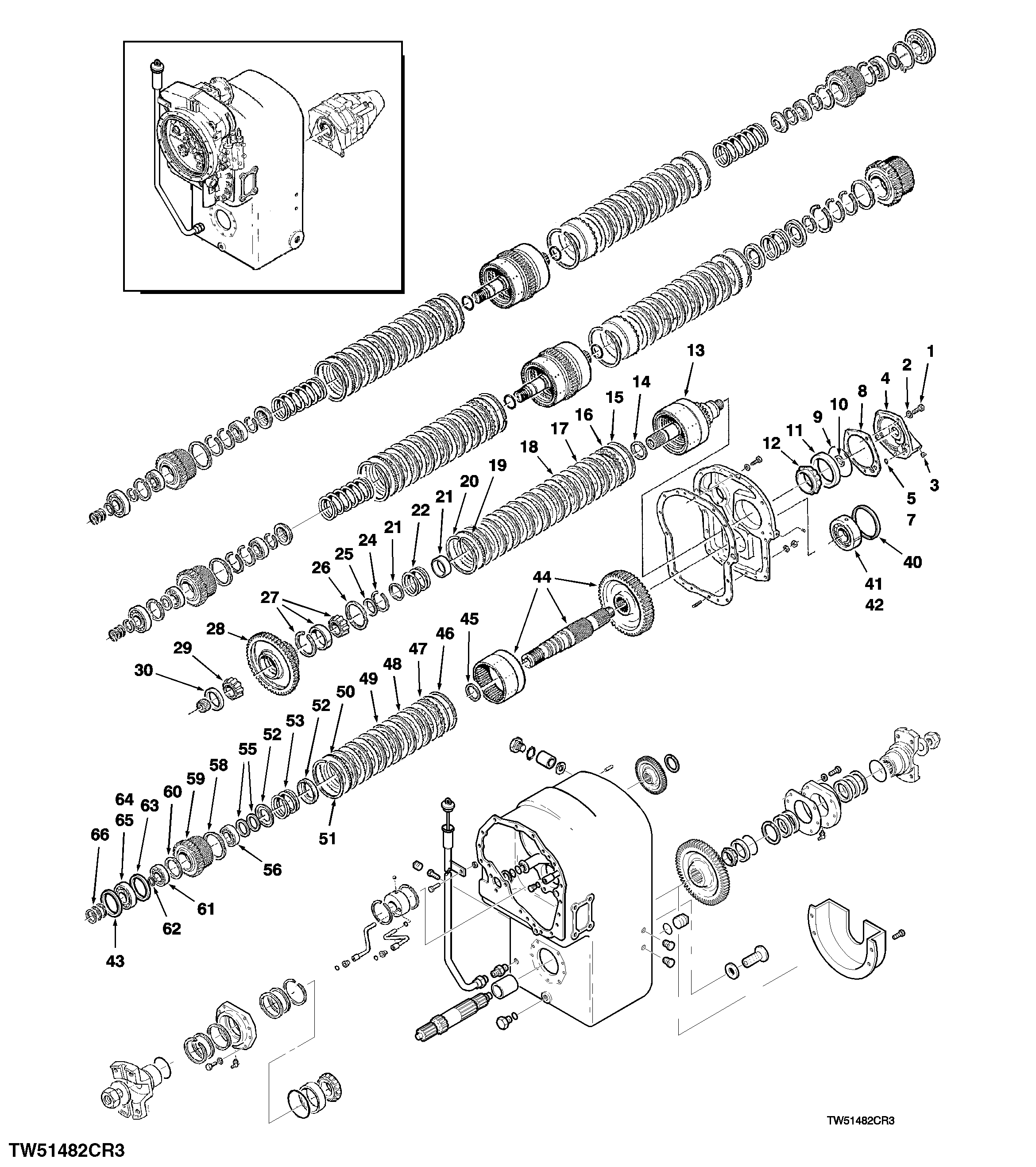

LOW CLUTCH GROUP & IDLER SHAFT

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8011	6	Cap Screw	M12 X 30, (SUB FOR 810985000)
2	F433279	6	WASHER -	(SUB FOR 843143600)
3	F004021	2	PLUG	(SUB FOR 810882200)
4	F432616	1	CAP -	-
5	R394R	1	O-Ring	(SUB FOR 841717200)
7	R394R	1	O-Ring	(SUB FOR 841717200)
8	F432617	1	SHIM*.007 -	.007
8	F432618	1	SHIM*.010 -	.010
8	F432619	1	SHIM*.015 -	.015
9	841167600	1	O`RING -	-
10	AT166861	2	Kit	(SUB FOR F432197)
11	JD8286	1	Bearing Cup	(SUB FOR F432620)
12	JD10024	1	Bearing Cone	(SUB FOR F432621)CONE
13	F432622	1	SHAFT DRUM & PLUG -	-
14	T39763	1	Seal	(SUB FOR 840623400)
15	F432623	1	RING -	-
16	F432624	1	PISTON -	-
17	F432625	8	DISC -	-
18	F432626	8	DISC -	-
19	F432627	1	END PLATE -	-
20	F432628	1	RETAINER RING -	-
21	F435665	1	RETAINER - CONSISTS OF TWO PIECES	CONSISTS OF TWO PIECES
22	F433047	1	SPRING -	-
24	T14931	1	Snap Ring	(SUB FOR 840636200)
25	F433051	1	RETAINER -	-
26	T50616	1	Snap Ring	(SUB FOR 842252700)
27	AT49239	1	Tapered Roller Bearing	(SUB FOR 840636100)
28	F432630	1	GEAR-80T -	-
29	F432644	1	BEARING CONE -	-
30	F432645	1	CUP -	-
40	F432618	1	SHIM*.010 -	.010
40	F432619	1	SHIM*.015 -	.015
40	F432617	1	SHIM*.007 -	.007
41	JD8286	1	Bearing Cup	(SUB FOR F432620)
42	JD10024	1	Bearing Cone	(SUB FOR F432621)
43	F432651	1	SPACER -	-
44	F432652	1	SHAFT - IDLER	Idler
45	T39763	1	Seal	(SUB FOR 840623400)
46	T39762	1	Piston Ring	(SUB FOR 840619500)
47	843078900	1	PISTON -	-
48	T39767	6	Clutch Plate	(SUB FOR 840619400)
49	841412500	6	CLUTCH DISC - INNER	-
50	841412600	1	PLATE -	-
51	T50623	1	Snap Ring	(SUB FOR 840631000)
52	F435665	1	RETAINER - CONSISTS OF TWO PIECES	CONSISTS OF TWO PIECES
53	F433047	1	SPRING -	-
55	T50652	2	Snap Ring	(SUB FOR 840636500)
56	JD9959	1	Cylindrical Roller Bearing	(SUB FOR 810604400)
58	T50616	1	Snap Ring	(SUB FOR 842252700)
59	F432653	1	GEAR*38T -	-
60	840619000	1	SPACER	-
61	JD9959	1	Cylindrical Roller Bearing	(SUB FOR 810604400)
62	T50652	1	Snap Ring	(SUB FOR 840636500)
63	F432650	1	WASHER - THRUST	Thrust
64	JD9058	1	Bearing Cone	(SUB FOR F432649)
65	JD9121	1	Bearing Cup	(SUB FOR <service-part qty="1">F432648</service-part>)CUP
66	T163266	3	Ring	(SUB FOR F433060)
..	F433219	1	Seal Kit	TRANSMISSION SEAL KIT
