HYDRAULIC SYSTEM - HYDRALOC (ZF)(660D, 001259- ) (848G, 001029 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F432220	1	Hydraulic Pressure Valve	(SUB FOR F434669)
1	F122261	1	Elec-Hyd Proportional Valve	-
1	F434671	1	Seal Kit	-
1	F433509	1	Solenoid Hydraulic Valve	-
1	F431900	1	SOLENOID COIL -	(SUB FOR F434670)
2	19M8183	2	Cap Screw	M10 X 90, (SUB FOR 811168900)
3	14M7518	2	Flange Nut	M10, (SUB FOR 811707000)
4	810280500	2	ELBOW-90 DEG. -	-
5	F122149	1	Hydraulic Hose	-
6	810707000	1	HOSE-HYD*0.38X78	-
7	H87779	1	Fitting	(SUB FOR 810565100)
8	AH75164	1	Elbow Fitting	(SUB FOR 810433800)
9	X253T-6-6	1	Tee Fitting	(SUB FOR 810568300)
10	811218200	1	HOSE-HYD*0.38X66	-
11	811020000	1	Tee Fitting	-
12	AT183869	1	Filter Element	848G
12	AT183869	1	Filter Element	660D
13	F121039	1	Hydraulic Hose	-
14	X05CP-4	1	Fitting Plug	(SUB FOR 810583800)
15	X4-6F5OX-S	1	Adapter Fitting	(SUB FOR 810862800 ) (SUB FOR X0503-6-4)
16	X2P5ON-S	1	Fitting Plug	(SUB FOR <service-part qty="1">810609700</service-part> ) (SUB FOR <service-part qty="1">X05CP-6</service-part>)660D
16	X2P5ON-S	1	Fitting Plug	(SUB FOR <service-part qty="1">810609700</service-part> ) (SUB FOR <service-part qty="1">X05CP-6</service-part>)848G
17	810280500	2	ELBOW-90 DEG. -	-
19	810309900	2	Washer	-
20	AU43156	1	Elbow Fitting	(SUB FOR 811675600)
31	-	1	Part 26	SEE INDEX; FRONT AXLE
32	19M7782	8	Cap Screw	M24 X 180, (SUB FOR 811865900)
33	810020200	8	WASHER*1	-
34	826991500	4	BLOCK -	-
35	F284913	2	DOWEL -	-
36	F383542	1	Guard	(848G) WELDMENT, GUARD
36	F383541	1	Guard	(660D) WELDMENT, GUARD
37	F295258	2	Bar	-
38	-	1	Part 34	SEE INDEX; REAR AXLE
39	811055400	12	Bolt	-
40	A31871	12	Lock Nut	(SUB FOR 811268800)
41	810020200	24	WASHER*1	-
42	X4-6F5OX-S	1	Adapter Fitting	(SUB FOR 810862800 ) (SUB FOR X0503-6-4)
45	F295128	2	Guard	-
46	19M7865	6	Screw	M8 X 16, (SUB FOR 811697500)
49	19M7969	4	Cap Screw	M20 X 110
50	24M7351	4	Washer	25 X 44 X 4 mm, (SUB FOR F123565)
51	19M8290	4	Screw	M6 X 35, (SUB FOR W40550)
54	X4M10F8OMXS	2	Adapter Fitting	(SUB FOR 811515400)
55	850093100	1	SPACER	-
56	F391926	1	Guard	DIFF. LOCK HOSE
57	19M8064	1	Cap Screw	M8 X 35, (SUB FOR 811697900)
59	811774700	2	Hydraulic Hose	Fabricate
60	811775400	1	Hydraulic Hose	-
61	810959400	1	Tee Fitting	-
62	X6C6X-S	1	Elbow Fitting	(SUB FOR 810335500 ) (SUB FOR X3903-6-6)
63	X6WTX-WLN-S	3	Union Fitting	(SUB FOR 810269500)
65	F123723	1	Hydraulic Hose - Fabricate	Fabricate
72	F122450	1	Hydraulic Hose	-
73	X6F65OX-S	1	Adapter Fitting	(SUB FOR 811166500)
74	F122289	1	Check Valve	-
75	14M7518	2	Flange Nut	M10, (SUB FOR 811707000)
76	AH97280	2	Clip	(SUB FOR F121081)
77	F122450	1	Hydraulic Hose	-

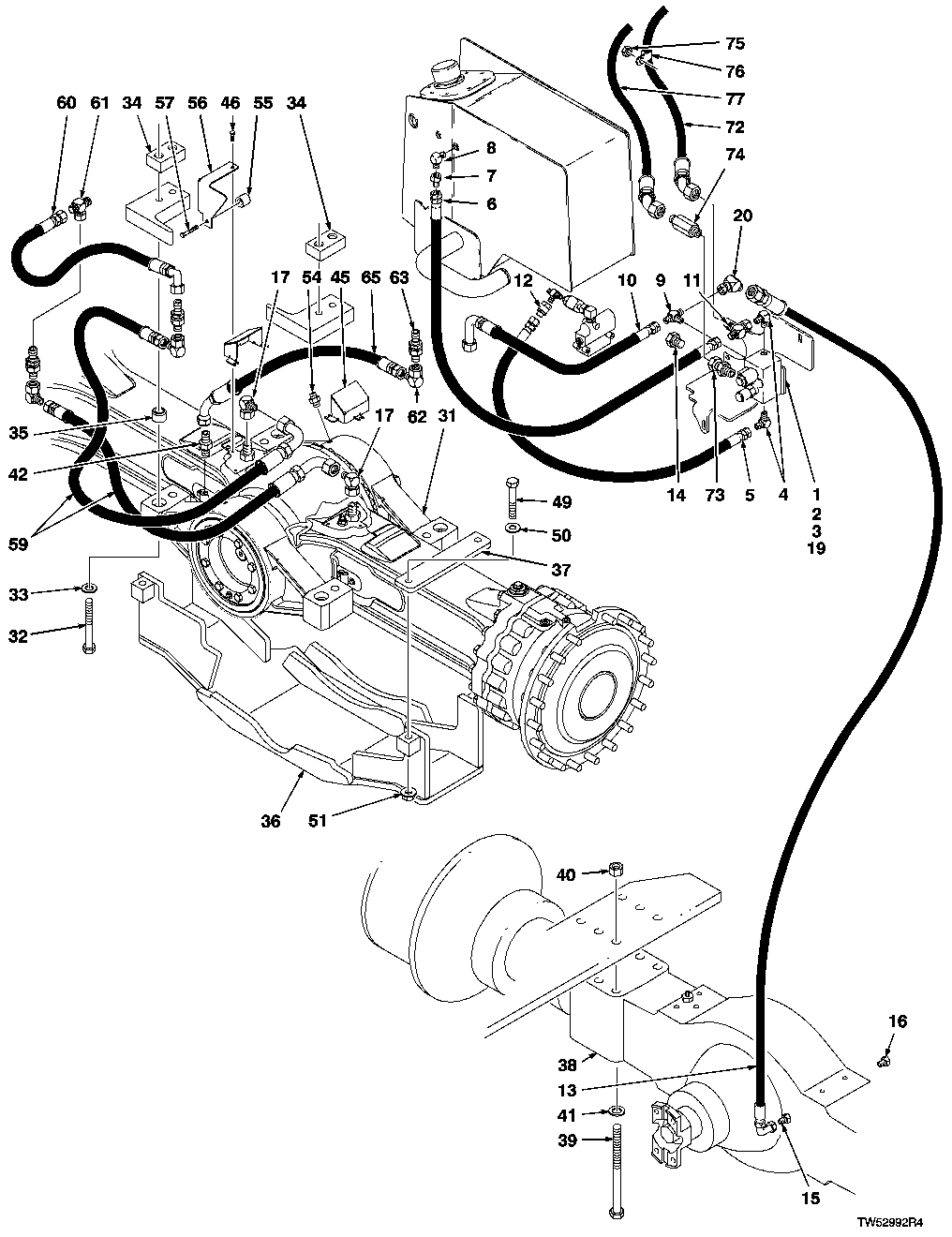

HYDRAULIC SYSTEM - HYDRALOC (ZF)(660D, 001259- ) (848G, 001029 - )
