HYDRAULIC SYSTEM - HYDRALOC (DANA)(660D, -001258)(848G,-001028)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F432220	1	Hydraulic Pressure Valve	(SUB FOR F434669)
1	F122261	1	Elec-Hyd Proportional Valve	-
1	F434671	1	Seal Kit	-
1	F433509	1	Solenoid Hydraulic Valve	-
1	F431900	1	SOLENOID COIL -	(SUB FOR F434670)
2	19M8183	2	Cap Screw	M10 X 90, (SUB FOR 811168900)
3	14M7518	2	Flange Nut	M10, (SUB FOR 811707000)
4	810280500	2	ELBOW-90 DEG. -	-
5	F122149	1	Hydraulic Hose	-
6	810707000	1	HOSE-HYD*0.38X78	-
7	H87779	1	Fitting	(SUB FOR 810565100)
8	AH75164	1	Elbow Fitting	(SUB FOR 810433800)
9	X253T-6-6	1	Tee Fitting	(SUB FOR 810568300)
10	F123633	1	Hydraulic Hose - Fabricate	-
11	811020000	1	Tee Fitting	-
13	F121039	1	Hydraulic Hose	-
14	X253T-4-4	1	Tee Fitting	(SUB FOR 811202600)
15	F123632	1	Hose	-
18	F121040	1	Hydraulic Hose	-
19	810309900	2	Washer	-
20	AU43156	1	Elbow Fitting	(SUB FOR 811675600)
21	X4V6X-S	1	Elbow Fitting	(SUB FOR 810609500 ) (SUB FOR X3703-4-4)
35	F278963	2	GUARD -	660D
35	F299684	2	Guard	848G
36	19M7877	4	Cap Screw	M14 X 30, (SUB FOR 811314600)
40	X4V6X-S	1	Elbow Fitting	(SUB FOR 810609500 ) (SUB FOR X3703-4-4)
41	AH89069	1	Elbow Fitting	(SUB FOR 810640100)
44	810630800	2	FITTING -	-
45	827013800	1	SPACER -	-
46	F284757	1	GUARD - (TW142)	660D
46	F299686	1	Hose Guard	848G
47	811865800	2	BOLT*M14X2.00-70 -	-
48	24M7338	2	Washer	17 X 30 X 3 mm, (SUB FOR F123563 AND 810632900)
49	811775400	2	Hydraulic Hose	-
50	811775400	1	Hydraulic Hose	-
51	810959400	1	Tee Fitting	-
52	X6C6X-S	5	Elbow Fitting	(SUB FOR 810335500 ) (SUB FOR X3903-6-6)
53	X6WTX-WLN-S	3	Union Fitting	(SUB FOR 810269500)
54	X4-6F5OX-S	2	Adapter Fitting	(SUB FOR 810862800 ) (SUB FOR X0503-6-4)
55	F303930	1	Hydraulic Hose	-
56	AH89069	3	Elbow Fitting	(SUB FOR 810640100)
57	810685800	2	ADAPTER -	-
58	810466300	1	HOSE-HYD*0.25X18 -	-
59	R35352	2	Fitting	(SUB FOR 810280700)
60	X1/8GG-S	2	Coupling	(SUB FOR 811134100 ) (SUB FOR X0202-2-2)
61	U14273	2	Breather	(SUB FOR 810609000)
62	AH79175	1	Clip	(SUB FOR 811851200)
63	19M7784	1	Screw	M10 X 20, (SUB FOR 811699300)
64	14M7518	1	Flange Nut	M10, (SUB FOR 811707000)
65	F122186	1	HOSE*.25 X 30 -	-
66	F123192	1	Hydraulic Hose	-
68	T76252	2	Clamp	(SUB FOR 810626700)
69	811998700	1	HOSE-HYD*.25 X 52 -	-
72	F122450	1	Hydraulic Hose	-
73	X6F65OX-S	1	Adapter Fitting	(SUB FOR 811166500)
74	F122289	1	Check Valve	-
75	14M7518	2	Flange Nut	M10, (SUB FOR 811707000)
76	AH97280	2	Clip	(SUB FOR F121081)
77	F122450	1	Hydraulic Hose	-

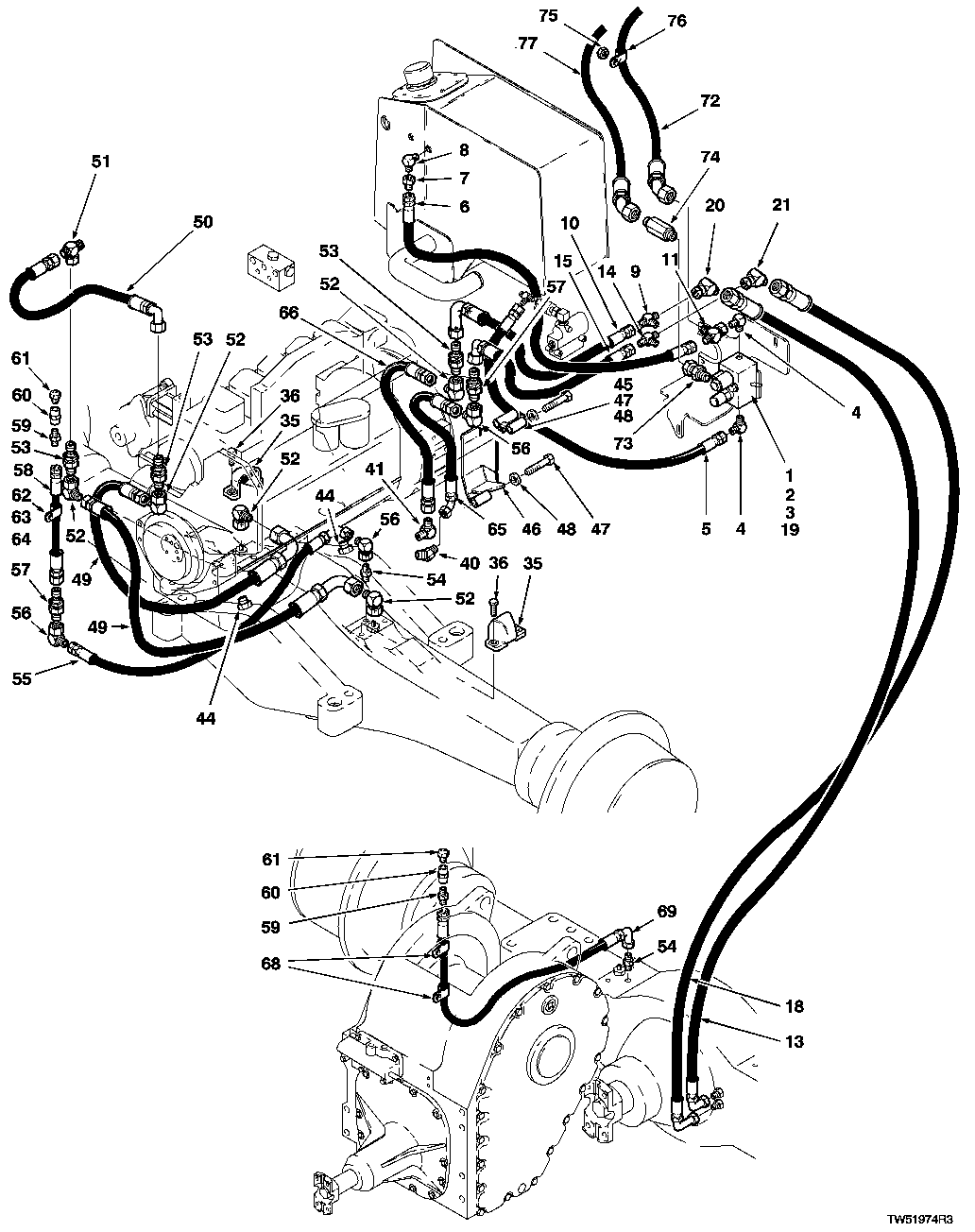

HYDRAULIC SYSTEM - HYDRALOC (DANA)(660D, -001258)(848G,-001028)
