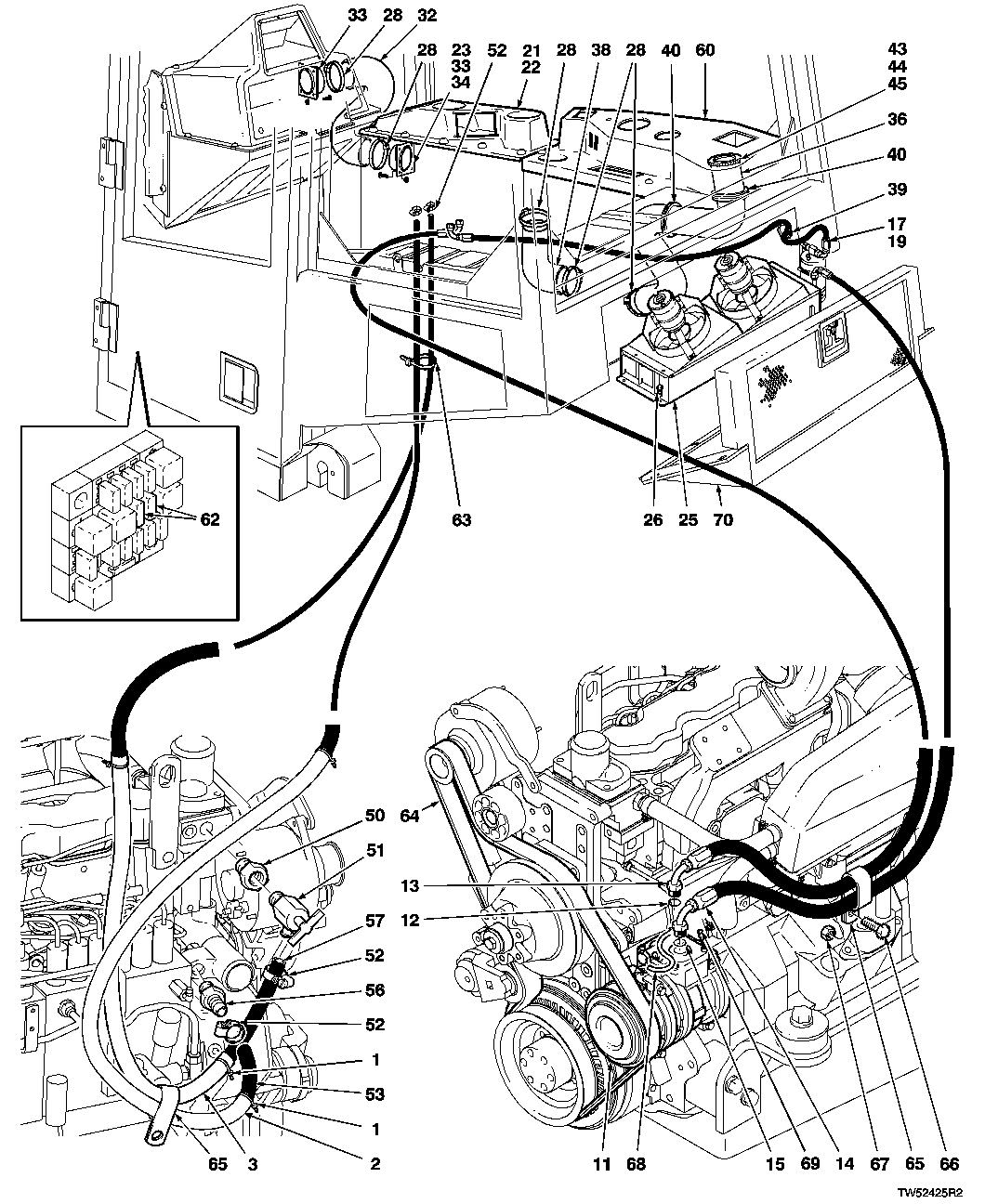

HEATER/ AIR CONDITIONER INSTALLATION

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	4	Part 1	( <service-part>F122130</service-part> NLA)
2	XPS-B-17	1	Hose Guard	(2.64M), (SUB FOR F122131)
3	XPS-B-17	1	Hose Guard	(2.64M), (SUB FOR F122131)
11	-	1	Part 4	SEE ENGINE
12	811916200	2	O-RING -	-
13	F123465	1	Refrigerant Hose	-
14	F125237	1	Hose	-
15	R33259	2	O-Ring	(SUB FOR <service-part qty="1">811916300</service-part>) <service-part >10</service-part>
17	F122291	1	Refrigerant Hose	001RIG
19	R10093	2	O-Ring	(SUB FOR <service-part qty="1">811916100</service-part>)NO.6
21	-	1	Part 11	-
22	19M7783	2	Screw	M10 X 16, (SUB FOR 811699200)
23	19M7862	3	Screw	M6 X 20, (SUB FOR 811822200)
25	-	1	Part 14	-
26	19M7923	4	Cap Screw	M6 X 12, (SUB FOR 811858800)
28	TY22471	6	Clamp	(SUB FOR 810784500)
32	-	1	Part 17	(0.275M), (MAKE FROM PM620WDWS250 ) (SUB FOR 811632000)
33	700779100	1	Adapter Fitting	-
34	811957100	4	CAPSCREW*#6X.500 -	-
36	-	1	Part 20	(0.560M), (MAKE FROM PM620WDWS250 ) (SUB FOR 811632000)
38	-	1	Part 21	(0.30M), (MAKE FROM PM620WDWS250 ) (SUB FOR 811632000)
39	F122643	1	GROMMET -	-
40	F435647	1	Channel	(0.50M), (SUB FOR 811932700)
43	842838500	1	ADAPTER -	-
44	841745800	1	LOUVER -	-
45	811959400	4	SCREW*#6X.500 -	-
50	810820700	1	Adapter Fitting	-
51	AT35831	1	Drain Valve	(SUB FOR 810337900)
52	RE32361	4	Hose Clamp	(SUB FOR 810117900)
53	TY22328	1	Bulk Hose	(SUB FOR <service-part qty="1">F120951</service-part>)HEATER - 2.69 M
56	AT144207	1	Elbow Fitting	-
57	T60811	1	Bulk Hose	HEATER - 2.69 M
60	F292781	1	CONSOLE -	-
62	811872300	2	CIRCUIT BREAKER - 25 AMP	25 AMP
63	H77698	1	Tie Band	(SUB FOR 840866000)
64	-	1	Part 36	SEE ENGINE MOUNTS
65	-	2	Part 37	SEE ENGINE MOUNTS
66	19M7867	1	Screw	M8 X 25, (SUB FOR 811697700)
67	14M7298	1	Flange Nut	M8, (SUB FOR 811706900)
68	-	1	Part 40	0.3 M, (MAKE FROM PM38CNBS-375 ) (SUB FOR 811512800)
69	21H1298	1	Screw	0.190" X 3/8", (SUB FOR 810657000)
70	-	1	Part 42	SEE CAB INTERIOR ENCL. HTR &amp; A/C

HEATER/ AIR CONDITIONER INSTALLATION
