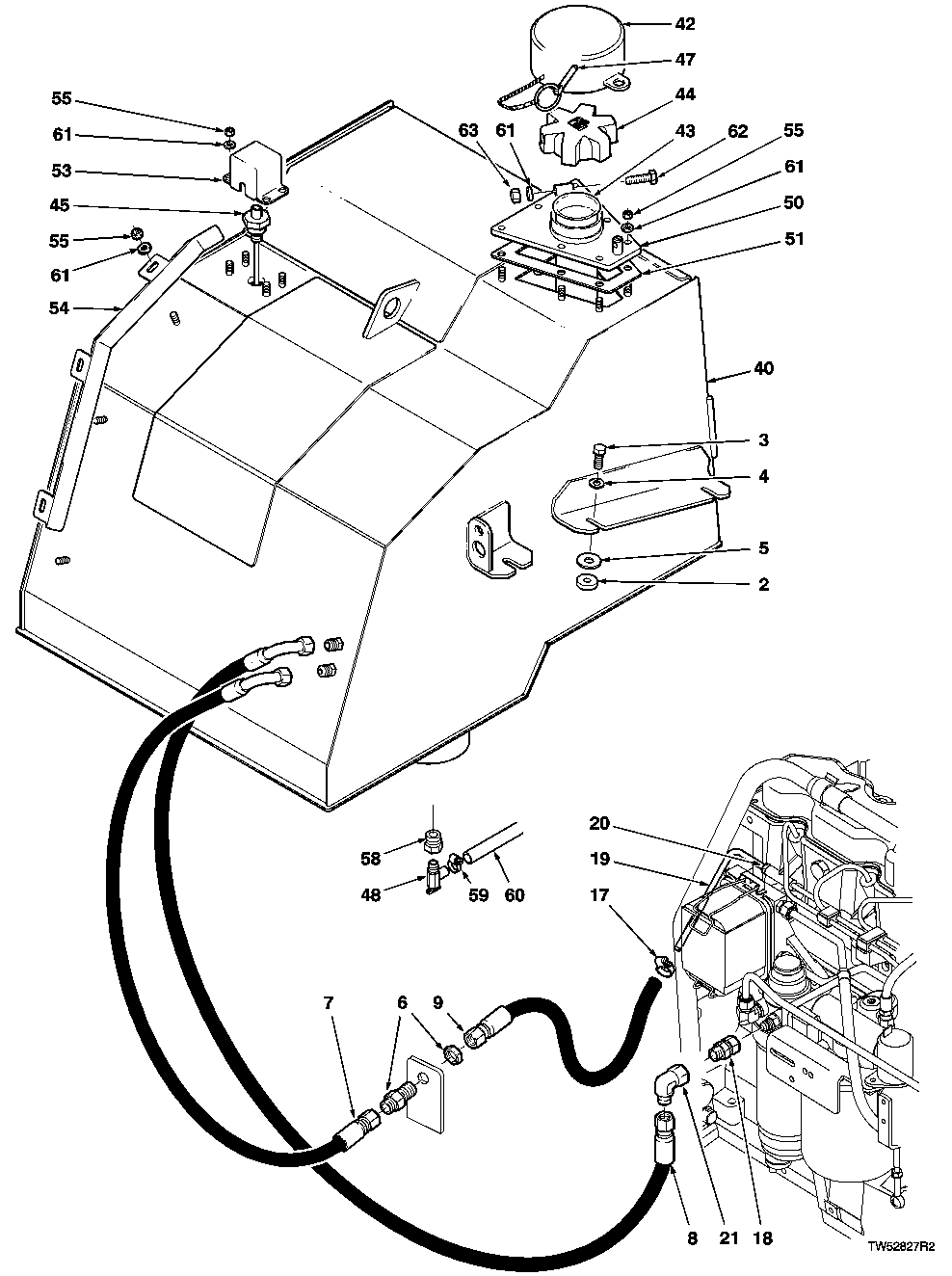

FUEL SYSTEM (GRAPPLE) - (001229- )(660D) (001016- )(848G)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	822952200	6	SORBTEX WASHER	-
3	19M7791	6	Bolt	M12 X 40, (SUB FOR 811701600)
4	810000500	6	WASHER*5/8	-
5	810000500	6	WASHER*5/8	(SUB FOR 810222900)
6	X6WTX-WLN-S	1	Union Fitting	(SUB FOR 810269500)
7	811120200	1	Hydraulic Hose	-
8	811218300	1	HOSE-HYD*0.50X195	-
9	F123280	1	Hydraulic Hose	-
17	RE32361	1	Hose Clamp	(SUB FOR 810117900)
18	F303895	1	Adapter Fitting	-
19	T61199	1	Line	-
20	R51936	1	Sealing Washer	-
21	AH75164	1	Elbow Fitting	(SUB FOR 810433800)
40	F382287	1	Fuel Tank	660D
40	F382287	1	Fuel Tank	848G, (SUB FOR F382288)
40	F382293	1	Fuel Tank	848G (89.6GAL/339.15L)
42	F299741	1	Cover	-
43	811809000	1	Strainer	-
44	AE38448	1	Pressure Relief Valve	(SUB FOR <service-part qty="1">810783000</service-part>)TOP
44	811875000	1	Gasket	-
44	827022400	1	Cap	-
44	811026200	1	Breather	Side
47	811930000	1	Pin Fastener	NLA; ORDER AT409782 OR AH163361 AND 11M7084
47	AT409782	1	Quick Lock Pin	195 mm
47	AH163361	1	PART MISSING IN WISE	75 mm
47	11M7084	1	Cotter Pin	5 X 25 mm
48	AT35831	1	Drain Valve	(SUB FOR 810337900)
50	F299743	1	Filler Neck	-
51	F285771	1	Gasket	-
53	F382326	1	Cover	-
54	F299747	1	Guard	-
55	14M7274	14	Nut	M10, (SUB FOR 810975700)
58	U45789	1	Adapter Fitting	(SUB FOR 810874100)
59	TY22466	1	Clamp	(SUB FOR 810054400)
60	TY24400	1	Bulk Hose	(SUB FOR <service-part qty="1">811625600</service-part>).58 M
61	24M7433	14	Washer	10.500 X 20 X 2 mm, (SUB FOR 810309800)
62	F003483	1	Screw	(SUB FOR 841972900)
63	14M7518	1	Flange Nut	M10, (SUB FOR 811707000)
64	811805700	1	SENDER UNIT -	-

FUEL SYSTEM (GRAPPLE) - (001229- )(660D) (001016- )(848G)
