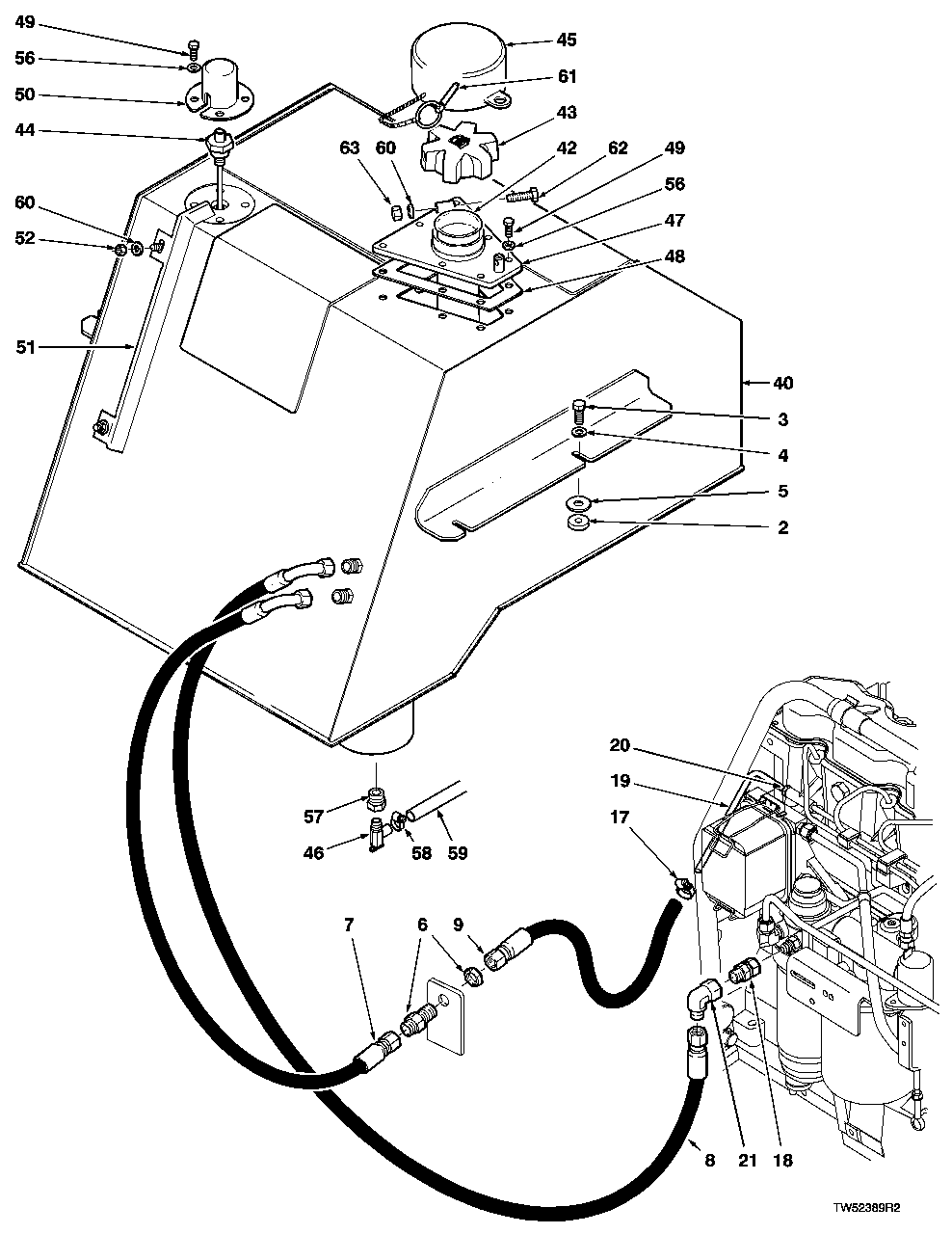

FUEL SYSTEM (CABLE) - ( -001246)(660D)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	822952200	4	SORBTEX WASHER	-
3	19M7791	4	Bolt	M12 X 40, (SUB FOR 811701600)
4	810000500	4	WASHER*5/8	-
5	810000500	4	WASHER*5/8	(SUB FOR 810222900)
6	X6WTX-WLN-S	1	Union Fitting	(SUB FOR 810269500)
7	811120200	1	Hydraulic Hose	-
8	F123280	1	Hydraulic Hose	-
9	F305894	1	Hydraulic Hose	-
17	RE32361	1	Hose Clamp	(SUB FOR 810117900)
18	F303895	1	Adapter Fitting	-
19	T61199	1	Line	-
20	R51936	1	Sealing Washer	-
21	AH75164	1	Elbow Fitting	(SUB FOR 810433800)
40	F287224	1	Fuel Tank	-
42	811809000	1	Strainer	-
43	827022400	1	Cap	-
43	811875000	1	Gasket	-
43	811026200	1	Breather	-
43	AE38448	1	Pressure Relief Valve	(SUB FOR 810783000)
44	811805700	1	SENDER UNIT -	-
45	827123400	1	COVER -	-
46	AT35831	1	Drain Valve	(SUB FOR 810337900)
47	F285538	1	FILLER NECK -	-
48	F285771	1	Gasket	-
49	19H2676	11	Cap Screw	3/8" X 1", (SUB FOR 810080100)
50	827143500	1	COVER -	-
51	F278137	1	Guard	-
52	14M7274	2	Nut	M10, (SUB FOR 810975700)
56	24M7433	11	Washer	10.500 X 20 X 2 mm, (SUB FOR 810309800)
57	U45789	1	Adapter Fitting	(SUB FOR 810874100)
58	TY22466	1	Clamp	(SUB FOR 810054400)
59	TY24400	1	Bulk Hose	(SUB FOR <service-part qty="1">827313100</service-part>)(BULK CUT-TO-LENGTH .58 M)
60	810309900	3	Washer	-
61	811930000	1	Pin Fastener	NLA; ORDER AT409782 OR AH163361 AND 11M7084
61	AT409782	1	Quick Lock Pin	195 mm
61	AH163361	1	PART MISSING IN WISE	75 mm
61	11M7084	1	Cotter Pin	5 X 25 mm
62	F003483	1	Screw	(SUB FOR 841972900)
63	14M7518	1	Flange Nut	M10, (SUB FOR 811707000)

FUEL SYSTEM (CABLE) - ( -001246)(660D)
