Открытый узел

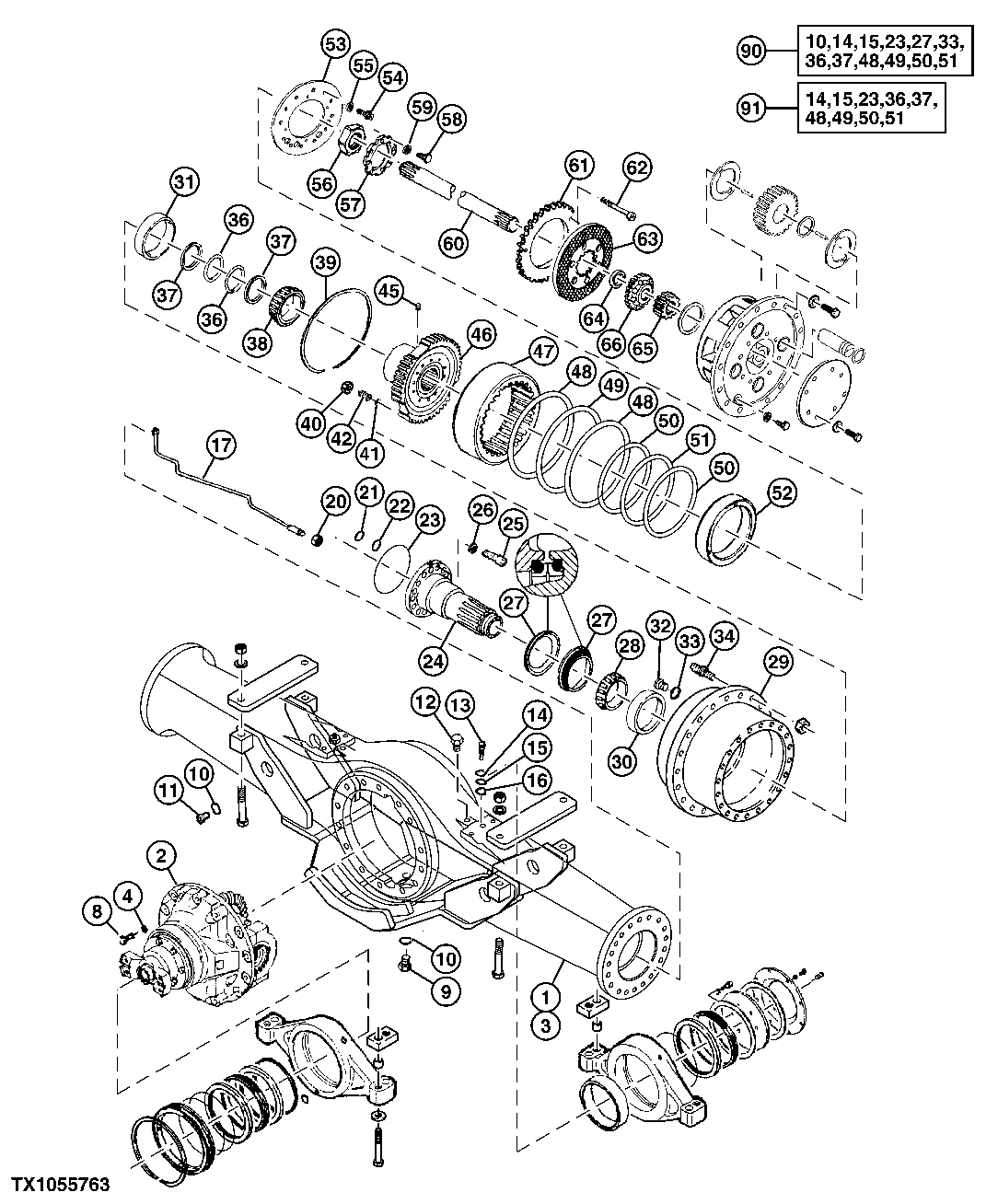

FRONT AXLE-42R112 (TW142D)(DANA)(660D, -001258)(848G, -001028)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	(SUB FOR <service-part qty="1">F123184</service-part>)848G - INCLUDES ITEMS 2 TO 66 NLA <service-part>F122406</service-part>
1	-	1	Part 1	660D - INCLUDES ITEMS 2 TO 66 NLA <service-part>F122406</service-part >
2	F434917	1	Differential	HYDRALOC (5.555:1)RATIO
3	F434918	1	HOUSING -	-
4	841614200	28	WASHER	-
8	F433867	28	CAPSCREW -	-
9	F432941	1	PLUG - MAGNETIC	Magnetic
10	R26906	2	O-Ring	(SUB FOR 840287100)
11	F432941	1	PLUG - MAGNETIC	-
12	X05HP-6	1	Fitting Plug	(SUB FOR 810605700)
13	F433232	2	FITTING -	-
14	841428600	2	O-RING -	-
15	F433020	2	SEAL RING -	-
16	F433233	2	RETAINING RING -	-
17	F434919	2	Brake Line	-
20	F434936	2	Nut	-
21	F434107	2	BACK-UP RING -	-
22	F433763	2	SEAL RING -	-
23	843042900	2	SEAL -	-
24	F433295	2	SPINDLE -	-
25	F003458	40	SCREW	(SUB FOR 841806500)
26	843100400	40	WASHER*METRIC 24 -	-
27	842265300	2	SEAL-ASSY -	-
27	F433596	2	SEAL -	-
28	843043900	2	CONE -	-
29	F433301	2	HUB -	(INCLUDES F433781 AND JD9149)
30	JD9149	2	BEARING CUP	(SUB FOR <service-part qty="1">841622400</service-part>)INNER
31	F433781	2	BEARING-CUP - OUTER	Outer
32	F432941	2	PLUG - MAGNETIC	-
33	R26906	2	O-Ring	(SUB FOR 840287100)
34	F433242	38	STUD -	-
36	F433243	4	SEAL -	-
37	F433244	4	BACK-UP RING -	-
38	840361800	2	BEARING-CONE	Outer
39	843100500	2	RETAINING RING -	-
40	F433909	6	NUT -	-
41	841627200	6	WASHER -	-
42	F433249	6	SPRING -	-
45	F433251	2	BLEEDER -	-
46	F433296	2	GEAR - & HOUSING - BRAKE	(SUB FOR <service-part qty="1">F433782</service-part>)BRAKE
47	843043700	2	GEAR -	-
48	F433254	4	BACK-UP RING - OUTER	Outer
49	F433255	2	SEAL - OUTER	Outer
50	F433256	4	BACK-UP RING - INNER	Inner
51	F433594	2	RING-PISTON SEAL - INNER	Inner
52	F433258	2	PISTON - BRAKE	(SUB FOR <service-part qty="1">F434937</service-part>)BRAKE
53	F434921	2	Retainer	-
54	19M7550	24	Cap Screw	M10 X 35, (SUB FOR 810899400)
55	843147500	24	WASHER*METRIC -	-
56	843044000	2	NUT-ADJUSTING*M105 -	-
57	843044100	2	LOCK -	-
58	F433783	8	BOLT -	-
59	843142700	8	WASHER*METRIC -	-
60	F432276	2	SHAFT-AXLE -	-
61	F434146	2	PLATE - PRESSURE -	Pressure
62	F433869	6	BOLT -	-
63	F433307	2	DISC - FRICTION	Friction
64	F433265	2	THRUST WASHER -	-
65	841937000	2	GEAR -	-
66	F433303	2	COUPLING - DISC	Disc
90	F433592	1	KIT*SEAL-AXLE - TRUNION - K1	-
91	F433593	1	KIT*SEAL 42R - K2	-

FRONT AXLE-42R112 (TW142D)(DANA)(660D, -001258)(848G, -001028)

Нет текстового описания
