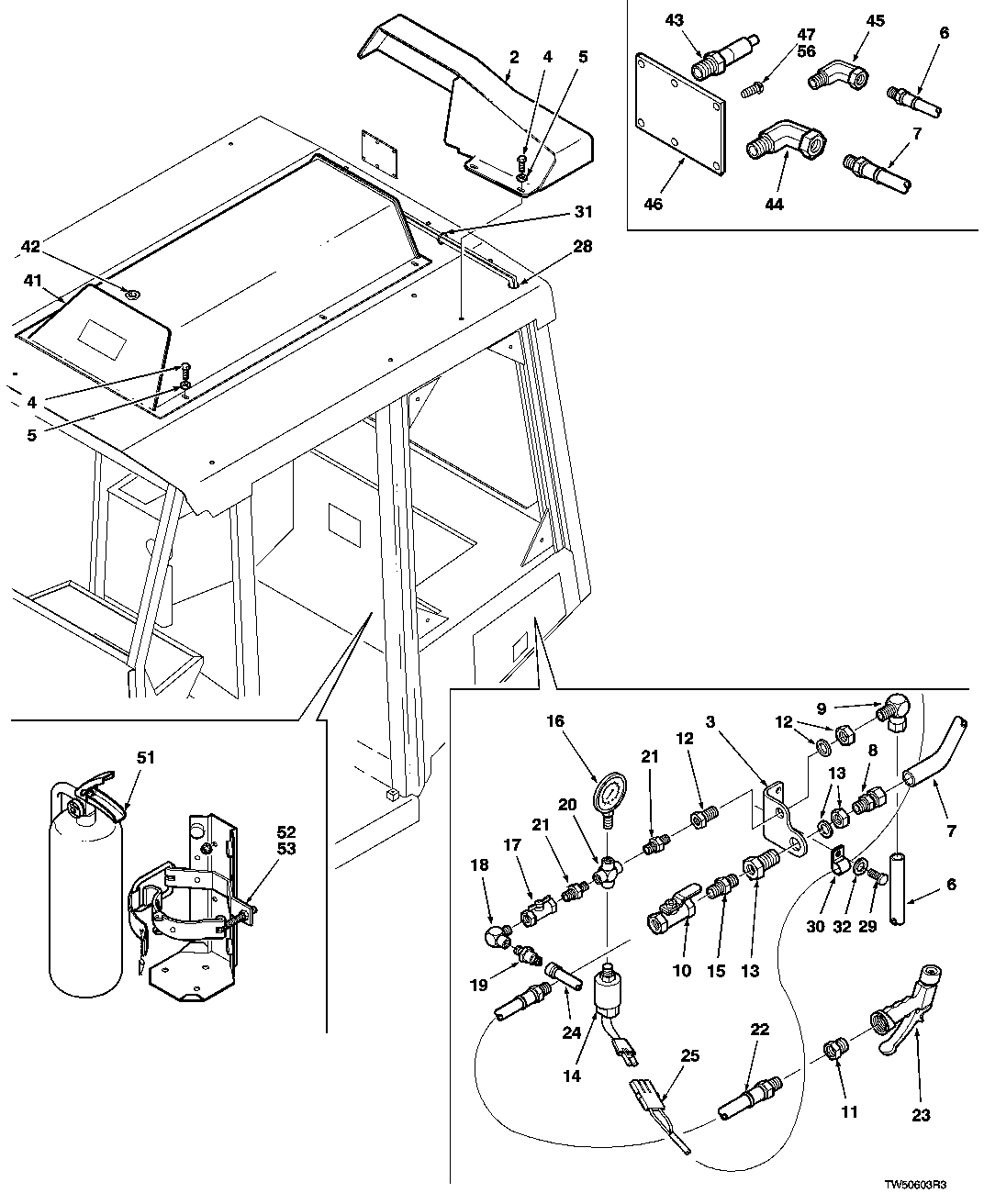

FIRE SUPPRESSION (5 LB. FIRE EXTINGUISHER)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	F380296	1	Guard	USE WITH WATER TANK ONLY (848G)
2	827354900	1	GUARD - *USE WITH WATER TANK ONLY	USE WITH WATER TANK ONLY (660D)
2	F380297	1	Guard	USE WITH WATER TANK ONLY (848G)
3	F380294	1	Bracket	-
4	-	11	Part 5	(SEE CAB SECTION)
5	24M7433	11	Washer	10.500 X 20 X 2 mm, (SUB FOR 810309800)
6	826941900	1	HOSE .375O.D. -	-
7	827018900	1	HOSE -	-
8	811873900	1	CONNECTOR -	-
9	AW25385	1	Union Fitting	(SUB FOR 811662700)
10	811874200	1	Hand Operated Valve	-
11	X79GH-12-6	1	Adapter Fitting	(SUB FOR 811951100)
12	X207ACBH-4	1	Coupling	(SUB FOR 811852200)
13	X207ACBH-6	1	Coupling	(SUB FOR 811852300)
14	F121949	1	SWITCH - PRESSURE	WATER PRESSURE
15	X216P-6	1	Threaded Nipple	(SUB FOR 811852500)
16	AT379313	1	Pressure Gauge	(SUB FOR <service-part qty="1">AT119708</service-part>)PRESSURE
17	811874300	1	VALVE -	-
18	811622200	1	ELBOW-90 DEG. -	-
19	XH2C	1	Pneum Internal Half Coupler	(SUB FOR 811852100)
20	X022X-4	1	Union Fitting	(SUB FOR <service-part qty="1">810907800</service-part>)CROSS
21	X0101-4-4	2	Threaded Nipple	(SUB FOR 810120000)
22	811951300	1	HOSE -	-
23	AT119576	1	Nozzle	-
24	827019200	1	HOSE -	-
25	-	1	Part 26	SEE ELECTRICAL
28	810651100	1	GROMMET -	-
29	19M7407	2	Cap Screw	M8 X 25, (SUB FOR 810917400)
30	T78974	1	Clamp	(SUB FOR 810785400)
31	R44302	1	Tie Band	(SUB FOR 810402100)
32	24M7433	2	Washer	10.500 X 20 X 2 mm, (SUB FOR 810309800)
41	F380293	1	Reservoir	WATER - INCL. ITEMS 42 TO 47 (848G)
41	F393019	1	Reservoir	WATER - INCL. ITEMS 42 TO 47 (848G)
41	F280357	1	TANK - WATER	WATER - INCL. ITEMS 42 TO 47 (660D)
42	X3/4HHP-S	1	Fitting Plug	(SUB FOR 810638200)
43	F120754	1	VALVE - SAFETY	Safety
44	X269NTA-10-6	1	Elbow Fitting	(SUB FOR 811873700)
45	AW25385	1	Union Fitting	(SUB FOR 811662700)
47	-	1	Part 39	-
51	AT189487	1	Fire Extinguisher	(SUB FOR <service-part qty="1">810775500</service-part>)5LB.
52	F309077	1	Bracket	(SUB FOR <service-part qty="1">840848500</service-part>)5LB., NLA
53	21M7271	4	Screw	M5 X 16, (SUB FOR <service-part qty="1">811975400</service-part>)5LB.
55	P43110	6	Screw	(SUB FOR 811320800)

FIRE SUPPRESSION (5 LB. FIRE EXTINGUISHER)
