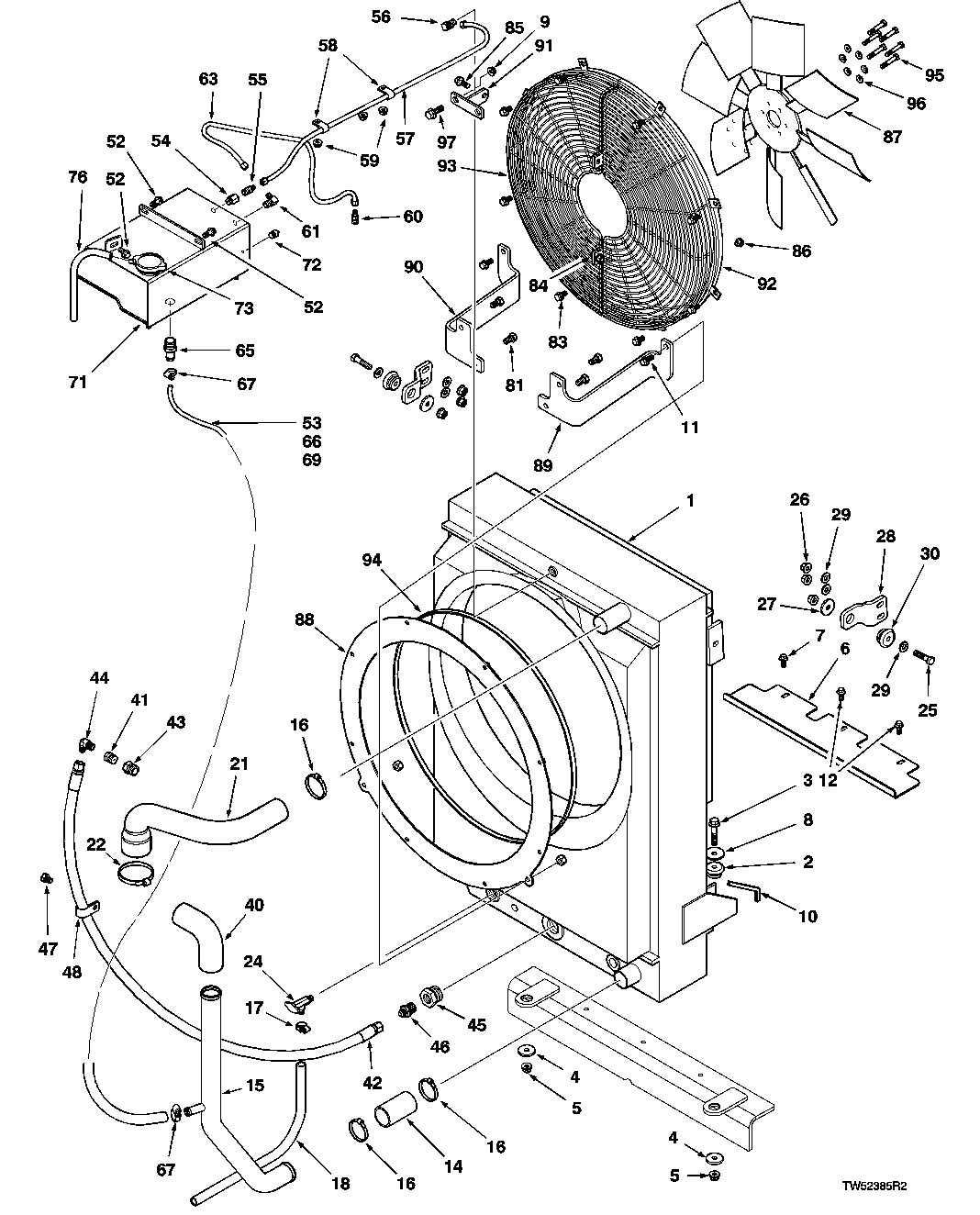

COOLING SYSTEM (CONTINUED) (660D, -001284) (848G, -001065)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
71	F278898	1	TANK -	-
72	F286159	1	Sensor	660D MODEL LOW COOLANT LEVEL SENSOR
72	X1/4HP-S	1	Fitting Plug	(SUB FOR <service-part qty="1">810603300</service-part> ) (SUB FOR <service-part qty="1">X01CP-4</service-part>)660D MODEL
72	F286159	1	Sensor	848G MODEL LOW COOLANT LEVEL SENSOR
72	X1/4HP-S	1	Fitting Plug	(SUB FOR <service-part qty="1">810603300</service-part> ) (SUB FOR <service-part qty="1">X01CP-4</service-part>)848G MODEL
73	AT84988	1	FILLER CAP	(SUB FOR 811913300)
76	TY24397	1	Bulk Hose	(SUB FOR <service-part qty="1">827307200</service-part>)900MM
81	19H2472	4	Cap Screw	1/2" X 1", (SUB FOR 810082100)
83	19M7784	8	Screw	M10 X 20, (SUB FOR 811699300)
84	19M7785	1	Screw	M10 X 25, (SUB FOR 811699400)
85	19M7786	1	Screw	M10 X 30, (SUB FOR 811699500)
86	14M7518	1	Flange Nut	M10, (SUB FOR 811707000)
87	F123198	1	Fan Blade	Standard
87	F123767	1	Fan	OPTION (USED DURING WINTER OPERATION)
88	F299648	1	Housing	-
89	F391060	1	Support	(SUB FOR F299706)
90	F299707	1	Support	-
91	F299710	1	Support	-
92	F380186	1	Guard	-
93	F380238	1	Guard	-
94	F380341	1	Seal	-
95	19H2676	6	Cap Screw	3/8" X 1", (SUB FOR 810080100)
96	24M7433	6	Washer	10.500 X 20 X 2 mm, (SUB FOR 810309800)
97	19M7791	2	Bolt	M12 X 40, (SUB FOR 811701600)

COOLING SYSTEM (CONTINUED) (660D, -001284) (848G, -001065)
