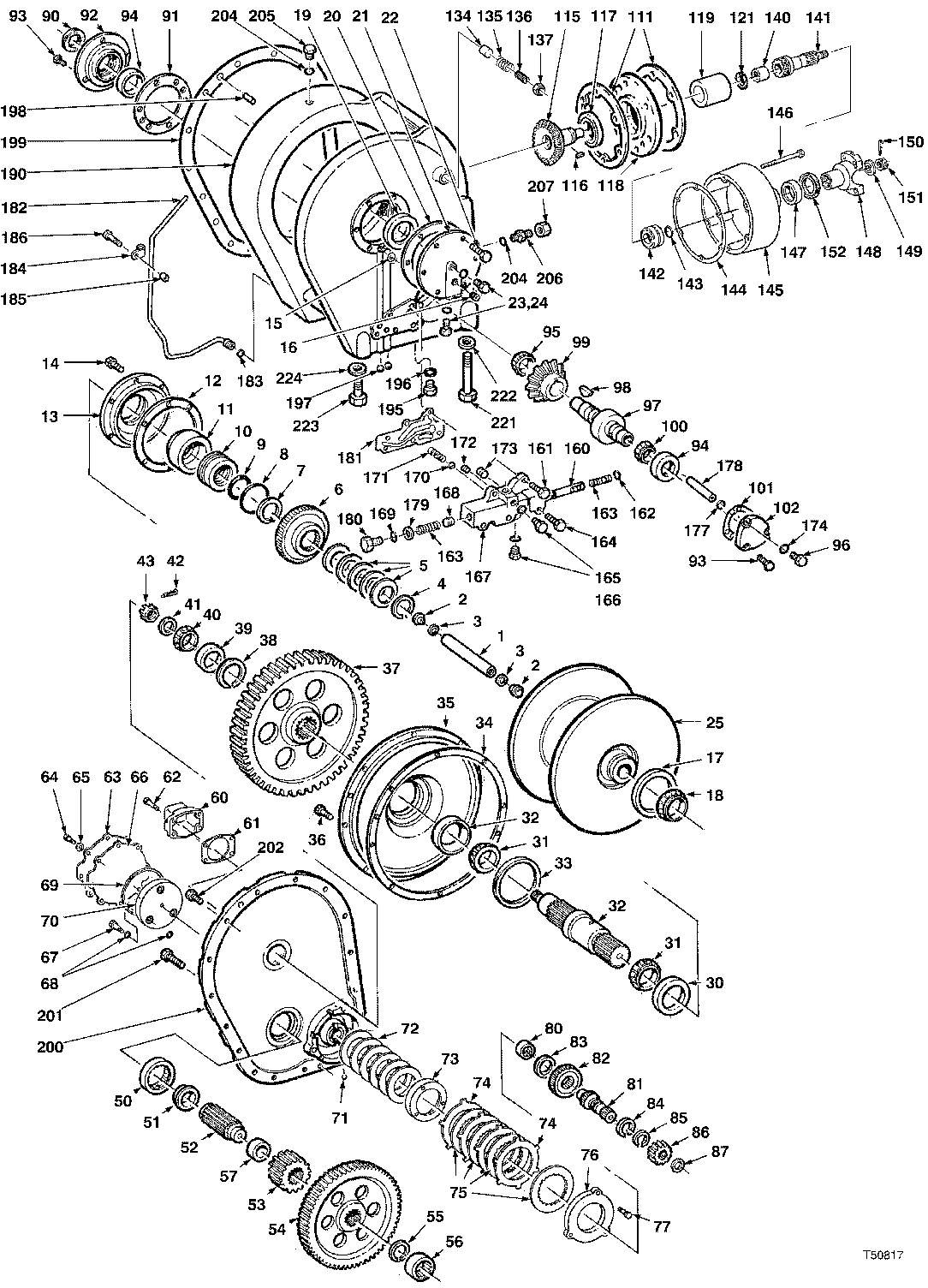

WINCH ASSY T60 ( 10EC1079 - ) 4143-022/10 [4143-022/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	841040700	1	OIL PIPE	-
2	841046200	2	RETAINING RING	-
3	841050300	2	SEAL RING	-
4	841050200	1	RETAINING RING	-
5	841152400	17	DISK	-
6	841040500	1	HUB - 25 & 48 TEETH	-
7	841050500	1	RETAINING RING	-
8	841050600	1	O-RING	-
9	841050700	1	O-RING	-
10	841041200	1	PISTON - FREE SPOOL	-
11	841041300	1	HSG PISTON	-
12	842820300	1	GASKET -	-
13	842820400	1	COVER - WINCH DRUM	-
14	810965500	12	BOLT*M10X1.50-30 -	-
15	810440800	1	O-RING	-
16	841052700	1	PLUG	-
17	842820200	2	SEAL -	-
18	840259300	1	BEARING-CONE	-
19	840258700	1	BEARING-CUP	-
20	841040800	3	SHIM - .010 (0.25 MM)	-
21	842820500	1	COVER -	-
22	810082200	6	BOLT*1/2-13UNCX1-1/4	-
23	841050400	2	PLUG	-
24	810529400	2	O-RING -	-
25	842820900	1	DRUM -	-
30	840258700	2	BEARING-CUP	-
31	840259300	2	BEARING-CONE	-
32	841042900	1	SHAFT - 25 TEETH	-
33	842820200	1	SEAL -	-
34	842821700	1	GASKET -	-
35	842821800	1	CARRIER -	-
36	810082200	7	BOLT*1/2-13UNCX1-1/4	-
37	841043000	1	GEAR - FINAL DRIVE - 25 & 74 TEETH	-
38	841051200	1	RETAINING RING	-
39	841050000	1	BEARING-CUP	-
40	841051700	1	BEARING-CONE	-
41	841040200	1	WASHER - SPECIAL	-
42	811563900	1	COTTER PIN -	-
43	811287600	1	NUT,CASTLE X 1.250	-
50	841053500	1	BEARING -	-
51	841052900	1	BEARING RACE -	-
52	842821900	1	SHAFT - 19 TEETH	-
53	841043200	1	PINION - 19 & 15 TEETH	-
54	841043300	1	GEAR - 38 & 9 TEETH	-
55	841051300	1	RETAINING RING -	-
56	842822000	1	BEARING-ROLLER -	-
57	842822100	1	BEARING-RACE -	-
60	841041500	1	COVER - BEARING	-
61	841041600	1	GASKET	-
62	810695700	4	BOLT3/8-16UNC1-3/8	-
63	842821300	1	COVER -	-
64	840035800	8	BOLT*3/8-16UNCX7/8 -	-
65	841049500	8	WASHER	-
66	842821400	1	GASKET -	-
67	842821500	3	BOLT	-
68	842492300	6	O RING	-
69	841042300	1	PACKING	-
70	841042200	1	PISTON	-
71	840808400	1	BALL	-
72	841041700	6	SPRING - BELLEVILLE	-
73	841041800	1	PLATE - INNER	-
74	841041900	4	PLATE	-
75	842488300	4	DISK -	-
76	841042000	1	PLATE - OUTER	-
77	810082300	3	BOLT*1/2-13UNCX1-1/2	-
80	841181900	1	BEARING	-
81	841042500	1	SHAFT - 21, 25 & 26 TEETH	-
82	841042600	1	HUB - 26 & 54 TEETH	-
83	-------	1	O-RING	-
84	842821600	1	RETAINING RING - EXTERNAL	-
85	841050900	1	RETAINING RING	-
86	841042700	1	PINION - 25 & 12 TEETH	-
87	841051000	1	BACK UP RING	-
90	841052200	1	OIL SEAL	-
91	841044500	1	SHIM*.002 - (0.05 MM)	-
92	841044800	1	COVER	-
93	810080200	6	BOLT*3/8-16UNCX1-1/4	-
94	841049800	2	BEARING CUP	-
95	841152200	1	BEARING-CONE	-
96	842487600	1	FITTING	-
97	F432246	1	SHAFT -	-
98	810803100	1	KEY - WOODRUFF	-
99	843133400	1	GEAR - BEVEL - 26 TEETH	-
100	841052800	1	BEARING CONE	-
101	841045200	1	SHIM*.003 - (0.08 MM)	-
102	841046400	1	RETAINER	-
111	842822200	1	GASKET -	-
115	842491000	1	GEAR	-
116	842491100	1	KEY	-
117	842491200	1	BEARING, BALL	-
118	842822300	1	HOUSING, BEARING -	-
119	843133800	1	COUPLER -	-
121	841051400	1	RETAINING RING	-
134	842484600	1	STOP -	-
135	842484700	1	SPRING -	-
136	842484800	1	SET SCREW*METRIC -	-
137	842484900	1	NUT*METRIC24 -	-
140	841053000	1	BEARING-ROLLER	-
141	842822500	1	SHAFT - 21 & 26 TEETH	-
142	841052000	1	BEARING-ROLLER	-
143	842822600	1	O-RING -	-
144	842822200	1	GASKET -	-
145	842822700	1	COVER - INPUT CLUTCH	-
146	810886300	6	BOLT3/8-16UNC4-3/4	-
147	842822800	1	OIL SEAL -	-
148	842822900	1	YOKE -	-
149	841044400	1	WASHER - SPECIAL	-
150	810053300	1	COTTER PIN	-
151	810133800	1	HEX NUT 3/4-10 UNC	-
152	842823000	1	SEAL -	-
160	841045700	1	SPOOL	-
161	810080200	2	BOLT*3/8-16UNCX1-1/4	-
162	842492300	1	O RING	-
163	841045800	2	SPRING	-
164	810080800	3	BOLT*3/8-16UNCX2-3/4	-
165	810529400	2	O-RING -	-
166	841050400	2	PLUG	-
167	842826400	1	HOUSING	-
168	810068900	1	Plug	-
169	840287100	1	O-RING -	-
170	841052400	1	BALL	-
171	841046000	1	SPRING	-
172	F433761	1	ORIFICE -	-
173	841052500	1	PLUG	-
179	842492600	1	SHIM*.024 - (0.61 MM)	-
180	842821000	1	PLUG-SPECIAL -	-
181	841047000	1	GASKET	-
182	842826500	1	TUBE -	-
183	843011400	1	O-RING -	-
184	843011500	1	CLIP -	-
185	842826600	1	BUSHING -	-
186	810082500	1	BOLT*1/2-13UNCX2	-
190	842820600	1	HOUSING -	-
195	842485600	2	FITTING -	-
196	840287000	2	O-RING	-
197	841050100	2	BEARING-BALL	-
198	841040000	2	PIN -	-
199	842820700	1	GASKET -	-
200	842820800	1	COVER -	-
201	810877400	4	BOLT1/2-13UNC3-1/4	-
202	810082200	14	BOLT*1/2-13UNCX1-1/4	-
204	840287100	2	O-RING -	-
205	842821000	1	PLUG-SPECIAL -	-
206	842821100	1	FITTING -	-
207	842821200	1	FITTING -	-
221	810963000	2	BOLT*M20X2.50-60 -	-
222	810002100	2	WASHER*3/4	-
223	811338700	4	BOLT*M20X2.50-45 -	-
224	810002100	4	WASHER*3/4	-
-	811181500	4	BOLT*M20X2.50-70 -	-
-	-	1	Part 164	-
-	811844400	1	WINCH -	-
-	-	1	Part 163	-
-	811181400	4	BOLT*M20X2.50-50 -	-
-	841045500	4	SHIM*.006 - (0.15 MM)	-
-	841045400	1	SHIM*.010 - (0.25 MM)	-
-	841045300	1	SHIM*.005 - (0.13 MM)	-
-	841044700	1	SHIM*.010 - (0.25 MM)	-
-	841044600	1	SHIM*.005 - (0.13 MM)	-
-	842486000	1	SLEEVE	-
-	841041000	3	SHIM - .003 (0.08 MM)	-
-	841040900	2	SHIM - .005 (0.13 MM)	-
-	810529000	1	O-RING - FOR JAMNUT	-
-	842486000	1	SLEEVE	-
