Открытый узел

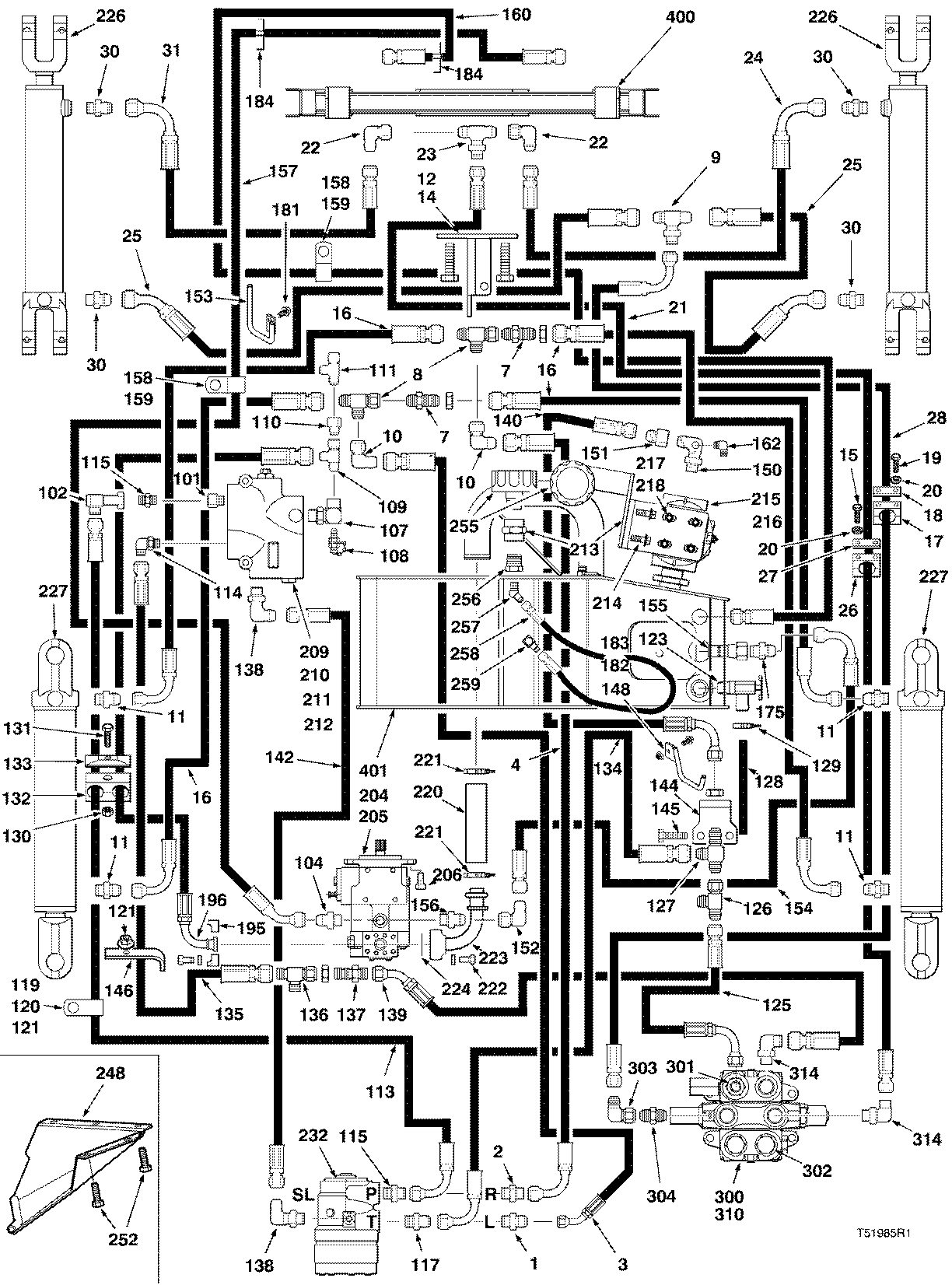

HYDRAULIC SYSTEM POWER FRAME CABLE ( 10EC1079 - ) 2000-481/10 [2000-481/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	810490900	1	FITTING 1/2 MJIC 3/4 -	-
2	810490900	1	FITTING 1/2 MJIC 3/4 -	-
3	F121199	1	HOSE-HYD* .50 X 55 -	-
4	F121200	1	HOSE-HYD* .50 X 53 -	-
7	810328400	2	ADAPTER -	-
8	810579400	2	TEE-JIC/JIC/JIC -	-
9	811993200	1	TEE - BULKHEAD	-
10	810433800	2	ELBOW-90 DEG.	-
11	810490900	4	FITTING 1/2 MJIC 3/4 -	-
12	F287404	1	BULKHEAD -	-
14	811314500	2	BOLT*M12X1.75-45 -	-
15	810080800	2	BOLT*3/8-16UNCX2-3/4	-
16	811779000	4	HOSE-HYD*0.5X27 -	-
17	F120712	1	Clamp	-
18	F120714	1	Plate	-
19	810080600	2	BOLT*3/8-16UNCX2-1/4 -	-
20	810309800	4	FLAT WASHER 3/8 - HARDENED	-
21	811273100	1	HOSE-HYD*0.75X116C -	-
22	810433800	2	ELBOW-90 DEG.	-
23	827318000	1	TEE-SPECIAL -	-
24	F122313	1	HOSE-HYD*.50X29 -	-
25	811540500	2	HOSE-HYD*0.50X19 -	-
26	F120713	1	CLAMP -	-
27	811989400	1	Plate	-
28	F121258	1	HOSE-HYD*.50 X 118 -	-
30	810490900	4	FITTING 1/2 MJIC 3/4 -	-
31	810932800	1	HOSE-HYD*0.50X38	-
101	811601200	1	ADAPTER -	-
102	811730800	1	ELBOW-90 DEG. -	-
104	810116400	1	FITTING*METRIC -	-
107	827318900	1	FITTING REWORK -	-
108	700578000	1	COUPLER-TEST -	-
109	811697300	1	TEE -	-
110	811880600	1	Adapter Fitting	-
111	811880700	1	TEE -	-
113	F122136	1	HOSE-HYD*0.75X90C -	-
114	811437600	1	ELBOW-90 -	-
115	811439600	2	ADAPTER -	-
117	810115800	1	FITTING 3/4 MJIC 3/4	-
119	810771900	1	Clamp	-
120	811699400	1	SCREW*M10X1.50-25mm -	-
121	811707000	2	LOCKNUT*M10X1.50 -	-
123	811453300	1	Drain Valve	-
125	F122451	1	Hydraulic Hose	-
126	810399500	1	TEE -	-
127	811649300	1	TEE -	-
128	827326800	1	HOSE -	-
129	810054400	1	CLAMP*12 -	-
130	810208800	1	NUT*.313-18 UNC -	-
131	810102800	1	HEX HEAD BOLT 5/16-18 UNC X 3	-
132	F122111	1	CLAMP -	-
133	F122110	1	PLATE -	-
134	810771400	1	HOSE ASSEMBLY	-
135	F122391	1	HOSE-HYD*.75X55 -	-
136	811697300	1	TEE -	-
137	811634100	1	ADAPTER -	-
138	810057600	2	ELBOW-90 DEG. -	-
139	F122625	1	Hydraulic Hose	-
140	F121347	1	HOSE-HYD*.75 X 68 -	-
142	811412200	1	HOSE-HYD*0.25X74 -	-
144	F276647	1	BRACKET -	-
145	811699300	2	SCREW*M10X1.50-20 -	-
146	F287031	1	BAR -	-
148	F279375	1	GUIDE -	-
150	F279451	1	ELBOW -	-
151	810293100	1	FITTING -	-
152	810447100	1	ELBOW-90 DEG. -	-
153	F279146	1	SUPPORT -	-
154	811613200	1	HOSE-HYD*0.75X21 -	-
155	F120241	1	VALVE - CHECK	-
156	810115800	1	FITTING 3/4 MJIC 3/4	-
157	F122018	1	HOSE-HYD*1.00X130C -	-
158	F122314	2	CLAMP -	-
159	811699200	2	SCREW*M10X1.50-16 -	-
160	F122017	1	HOSE-HYD*1.00X134C -	-
162	-------	1	O-RING	-
175	810074600	1	CONNECTOR	-
181	811701300	1	SCREW*M12X1.75-25 -	-
182	811699400	1	SCREW*M10X1.50-25mm -	-
183	810975700	1	NUT*M10-1.5 -	-
184	810654700	2	TIE STRAP -	-
195	811168000	1	FLANGE KIT -	-
196	F120355	1	HOSE-HYD*.75 X 24 -	-
204	-------	1	O-RING	-
205	840779100	1	SEALANT-SILICONE	-
206	811703700	2	SCREW*M16X2.00-40mm -	-
209	811937100	1	VALVE - PRIORITY	-
210	810956900	2	BOLT*M8X1.25-90 -	-
211	811706900	2	LOCKNUT*M8X1.25 -	-
212	810309800	2	FLAT WASHER 3/8 - HARDENED	-
213	F279227	1	BRACKET - FILTER	-
214	811699400	2	SCREW*M10X1.50-25mm -	-
215	810554700	1	O-RING -	-
216	F123155	1	FILTER -	-
217	840035800	4	BOLT*3/8-16UNCX7/8 -	-
218	810309800	4	FLAT WASHER 3/8 - HARDENED	-
220	827014400	1	HOSE -	-
221	700580500	2	CLAMP -	-
222	810082300	4	BOLT*1/2-13UNCX1-1/2	-
223	811871700	1	ELBOW-90 DEG. -	-
224	810694900	1	O-RING -	-
226	-------	2	O-RING	-
227	-------	2	O-RING	-
232	-------	1	O-RING	-
248	F289740	1	PLATE -	-
252	811699400	4	SCREW*M10X1.50-25mm -	-
255	F120560	1	CAP -	-
256	810850100	1	Adapter Fitting	-
257	810577900	1	ELBOW-45 DEG. -	-
258	811019400	1	Hydraulic Hose	-
259	810273500	1	Elbow Fitting	-
300	-------	1	O-RING	-
301	810270000	1	FITTING*METRIC -	-
302	810381800	1	PLUG	-
303	810433800	1	ELBOW-90 DEG.	-
304	810490900	1	FITTING 1/2 MJIC 3/4 -	-
310	811701600	3	SCREW*M12X1.75-40 -	-
314	811437600	2	ELBOW-90 -	-
400	-------	1	O-RING	-
401	-------	1	O-RING	-
-	811730800	1	ELBOW-90 DEG. -	-
-	811439600	1	ADAPTER -	-
-	-------	1	O-RING	-
-	841732700	1	INDICATOR KIT -	-
-	842816700	1	SENDER -	-
-	F435201	1	ELEMENT -	-

HYDRAULIC SYSTEM POWER FRAME CABLE ( 10EC1079 - ) 2000-481/10 [2000-481/10]

Нет текстового описания
