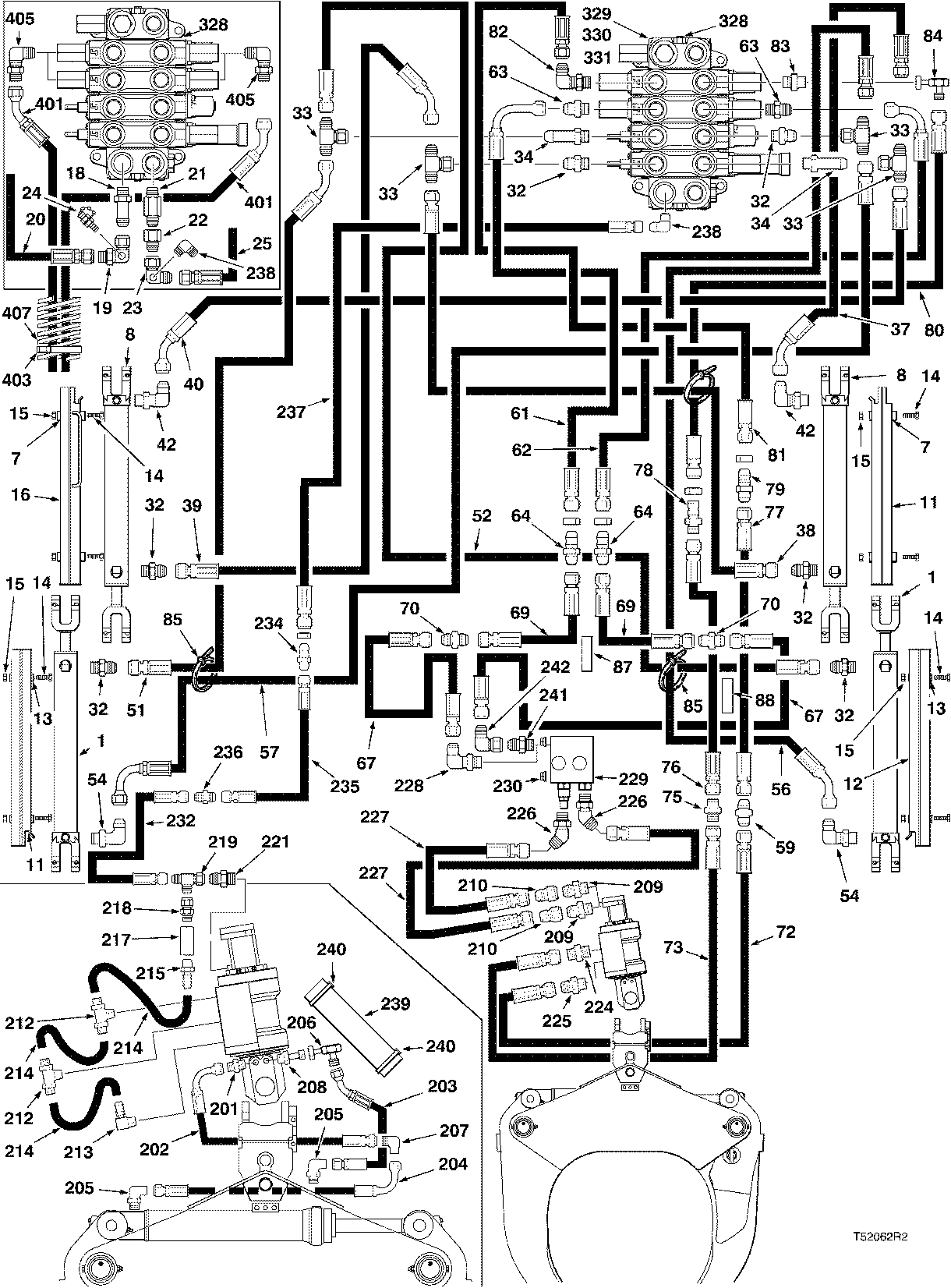

HYDRAULIC SYSTEM CARR. FRAME GRAPPLE D/A TJ110`` ( 10EC1079 - ) 2000-491/10 [2000-491/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-------	2	O-RING	-
7	826896600	4	BAND -	-
8	-------	2	O-RING	-
11	F291234	2	COVER -	-
12	F291233	1	COVER -	-
13	826906300	4	BAND -	-
14	811700900	8	SCREW*M10X1.50-110 -	-
15	811268300	8	LOCKNUT*M10X1.5 -	-
16	F292146	1	COVER -	-
18	F122757	1	Adapter Fitting	-
19	F292339	1	FITTING REWORK -	-
20	F122363	1	HOSE-HYD*.75X32 -	-
21	811540100	1	ADAPTOR -	-
22	810293100	1	FITTING -	-
23	F297641	1	FITTING -	-
24	700578000	1	COUPLER-TEST -	-
25	811931600	1	HOSE-HYD*.75 X 39 -	-
32	810490900	6	FITTING 1/2 MJIC 3/4 -	-
33	811033800	4	TEE -	-
34	F121913	2	ADAPTER -	-
37	F122500	1	HOSE-HYD* .50 X 27 -	-
38	F122499	1	HOSE-HYD* .50 X 60 -	-
39	F122501	1	HOSE-HYD* .50 X 59 -	-
40	F122490	1	Hydraulic Hose	-
42	810292900	2	ELBOW-90 DEG. -	-
51	F122401	1	HOSE-HYD*.50X96 -	-
52	F122409	1	HOSE-HYD*.50X98 -	-
54	810292900	2	ELBOW-90 DEG. -	-
56	F122350	1	HOSE-HYD*.50X67 -	-
57	F122402	1	Hydraulic Hose	-
59	810348700	1	FITTING -	-
61	F122487	1	HOSE-HYD*.38 X 56 -	-
62	F122488	1	Hydraulic Hose	-
63	810425400	2	FITTING 3/8 MJIC 3/4	-
64	810269500	2	ADAPTER	-
67	812002600	2	HOSE-HYD* .38 X 60 -	-
69	F120837	2	HOSE-HYD.* .38X77 -	-
70	810630200	2	FITTING -	-
72	811743600	1	HOSE-HYD* .50 X 81`` -	-
73	811761300	1	HOSE-HYD*0.75X83 -	-
75	811464300	1	FITTING -	-
76	F120845	1	HOSE-HYD.*.75X77 -	-
77	811100100	1	HOSE-HYD*.50 X 77`` -	-
78	811634100	1	ADAPTER -	-
79	810328400	1	ADAPTER -	-
80	F122391	1	HOSE-HYD*.75X55 -	-
81	F122489	1	Hydraulic Hose	-
82	810292900	1	ELBOW-90 DEG. -	-
83	811439600	1	ADAPTER -	-
84	811730800	1	ELBOW-90 DEG. -	-
85	810654700	4	TIE STRAP -	-
87	811938900	1	SLEEVE - 1.524 M	-
88	811938800	1	Hose Guard	-
201	811439600	1	ADAPTER -	-
202	811957800	1	HOSE-HYD*.75 X 40 -	-
203	811283800	1	HOSE-HYD*0.75X38 -	-
204	F120922	1	HOSE-HYD*.75 X 30 -	-
205	811437600	2	ELBOW-90 -	-
206	811730800	1	ELBOW-90 DEG. -	-
207	811732700	1	ELBOW-90 DEG. -	-
208	811439800	1	ADAPTER -	-
209	810270000	2	FITTING*METRIC -	-
210	810749600	2	FITTING MJIC/FJIC	-
212	811204500	2	FITTING-TEE -	-
213	811172100	1	ELBOW -	-
214	811939000	1	TUBE - .914 M	-
215	811172000	1	FITTING -	-
217	811160400	1	VALVE-CHECK	-
218	F120234	1	ADAPTER -	-
219	811020000	1	Tee Fitting	-
221	810887400	1	FITTING -	-
224	811439600	1	ADAPTER -	-
225	810490900	1	FITTING 1/2 MJIC 3/4 -	-
226	810564700	2	ELBOW-45 DEG. -	-
227	811661100	2	HOSE-HYD*0.38X27 -	-
228	810280500	1	ELBOW-90 DEG. -	-
229	F122355	1	VALVE -	-
230	811706900	2	LOCKNUT*M8X1.25 -	-
232	810186300	1	HOSE-HYD*0.38X80 -	-
234	810269500	1	ADAPTER	-
235	811985000	1	HOSE-HYD*.38 X 77 -	-
236	810630200	1	FITTING -	-
237	F122494	1	HOSE-HYD*.38 X 41 -	-
238	810189400	1	ELBOW-90 DEG.	-
239	811938800	1	Hose Guard	-
240	810402100	3	TIE WRAP -	-
241	810328600	1	FITTING 3/8 MJIC 3/8	-
242	810335500	1	ELBOW-90 DEG. -	-
328	-------	1	O-RING	-
329	811701600	1	SCREW*M12X1.75-40 -	-
330	810011600	2	WASHER*1/2	-
331	F122276	2	CAPSCREW-M12X1.7 -	-
401	F122426	4	HOSE-HYD*.25X68 -	-
403	F013024	1	Strap With Buckle	-
405	F122933	4	ELBOW -	-
407	F122734	1	Guard	-
-	F435504	1	SEAL KIT -	-
