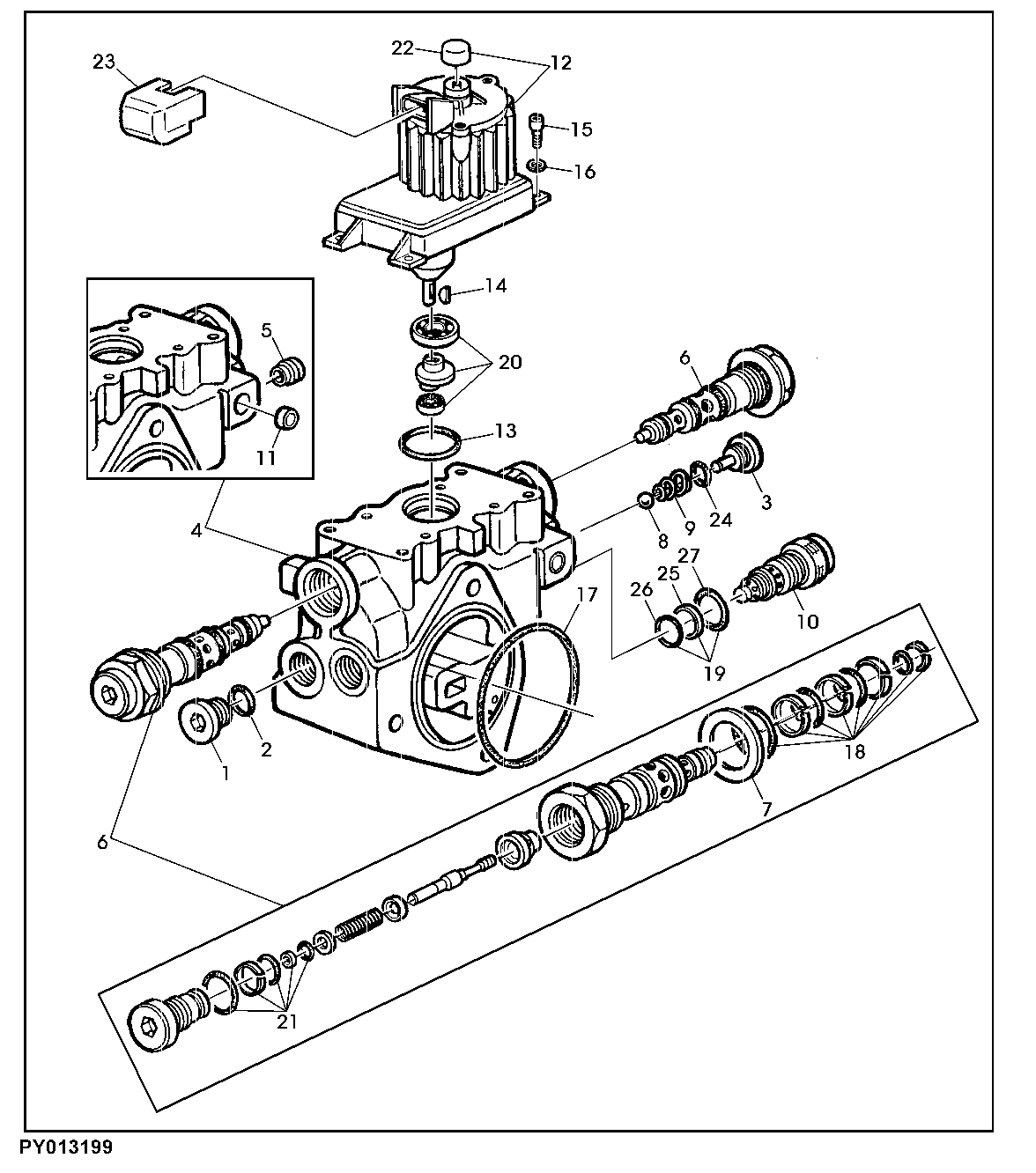

ROCKSHAFT CONTROL VALVE WITH STEPPERMOTOR

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L78975	1	Fitting Plug	ALSO ORDER 51M7045
2	51M7045	1	O-Ring	19.300 X 2.200 mm
3	L78972	1	Fitting Plug	-
4	AL110267	1	Housing	(WITHOUT SELECTIVE CONTROL VALVE POS.3) (ORDER (2) AL64588, AL172261, L158359, L158360, (3) L169844, 51M7045, 38H5243, T77932)
4	AL110267	1	Housing	(WITH SELECTIVE CONTROL VALVE POS.3) (ORDER (2) AL64588, AL161388, AL172261, L158359, L158360, R95493, 51M7045, 38H5243, T77932)
5	L78964	1	Valve Seat	-
6	AL77042	2	Hyd Actuated Control Valve	-
7	AL79037	1	Shim Kit	KIT
8	L38741	1	Ball	-
9	L75758	1	Compression Spring	-
10	AL61753	1	Pressure Relief Valve	(ORDER W/ T75972, T44948, L53817)
11	30M7010	1	Plug	-
12	AL181805	1	Electric Motor	(SUB FOR AL78213)
13	L75747	1	O-Ring	-
14	26M5447	1	Shaft Key	2 X 10 mm
15	19M8618	4	Screw	M6 X 12
16	24M7267	4	Washer	6.400 X 11 X 1.600 mm
17	R95494	1	O-Ring	-
18	AL80393	1	Gasket Kit	-
19	AL80394	1	Gasket Kit	CNLA, ORDER L53817, T44948, T75972
20	AL80395	1	Bearing Kit	-
21	AL80440	1	Gasket Kit	-
22	L37963	1	Cap	-
23	L100259	1	Elec. Connector Accessory	-
24	L59901	1	O-Ring	-
25	T75972	1	Back-Up Ring	-
26	T44948	1	O-Ring	-
27	L53817	1	O-Ring	-

ROCKSHAFT CONTROL VALVE WITH STEPPERMOTOR
