Открытый узел

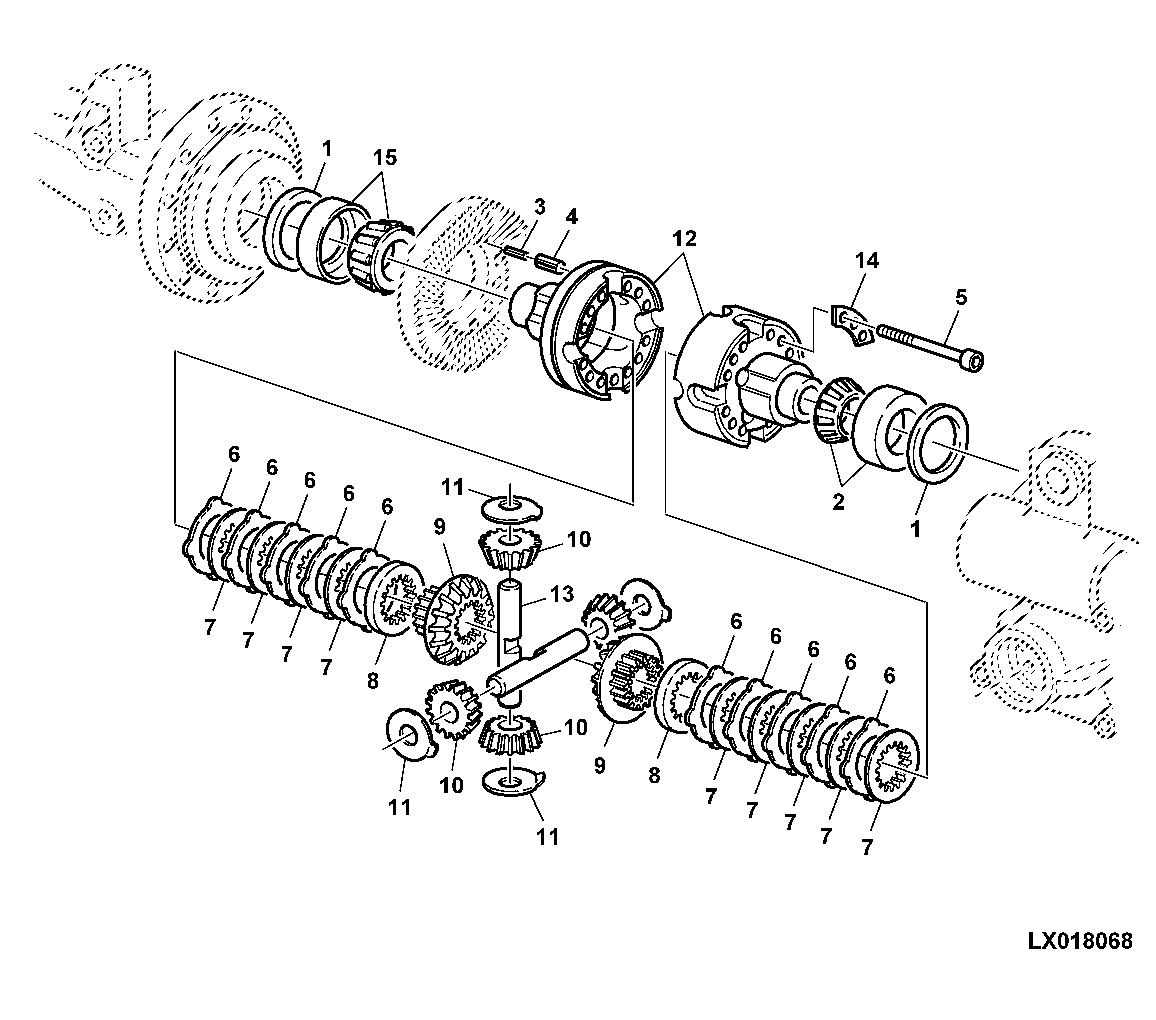

MULTIPLE DISK SELF-LOCK. DIFFERENTIAL, MFWD-AXLE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L112206	1	Washer	TK = 1.60MM, NLA; ORDER L40998 AND L41000
1	L40997	1	Washer	TK = 1.20MM, NLA; ORDER L40998 AND L41004
1	L112219	1	Washer	TK = 1.25MM
1	L112220	1	Washer	TK = 1.30MM
1	L112221	1	Washer	TK = 1.35MM
1	L112210	1	Washer	TK = 1.40MM, NLA; ORDER L40998 AND L41002
1	L112209	1	Washer	TK = 1.45MM, NLA; ORDER L40998 AND L101689
1	L112208	1	Washer	TK = 1.50MM, NLA; ORDER L40998 AND L41001
1	L112207	1	Washer	TK = 1.55MM, NLA; ORDER L40998 AND L101690
1	L41004	1	Shim	TK = 0.20MM
1	L112205	1	Washer	TK = 1.65MM, NLA; ORDER L40998 AND L112211
1	L112204	1	Washer	TK = 1.70MM, NLA; ORDER L40998 AND L112212
1	L112203	1	Washer	TK = 1.75MM, NLA; ORDER L40998 AND L112213
1	L112202	1	Washer	TK = 1.80MM, NLA; ORDER L40998 AND L40999
1	L112201	1	Washer	TK = 1.85MM, NLA; ORDER L40998 AND L112214
1	L112200	1	Washer	TK = 1.90MM, NLA; ORDER L40998 AND L112215
1	L112199	1	Washer	TK = 1.95MM, NLA; ORDER L40998 AND L112216
1	L112198	1	Washer	TK = 2.00MM
1	L112217	1	Washer	TK = 1.10MM
1	L41005	1	Shim	TK = 0.10MM
1	L41003	1	Shim	TK = 0.30MM
1	L41002	1	Shim	TK = 0.40MM
1	L101689	1	Shim	TK = 0.45MM
1	L41001	1	Shim	TK = 0.50MM
1	L101690	1	Shim	TK = 0.55MM
1	L41000	1	Shim	TK = 0.60MM
1	L112211	1	Washer	TK = 0.65MM
1	L112213	1	Washer	TK = 0.75MM
1	L40999	1	Washer	TK = 0.80MM
1	L112214	1	Washer	TK = 0.85MM
1	L112215	1	Washer	TK = 0.90MM
1	L112216	1	Washer	TK = 0.95MM
1	L40998	1	Washer	TK = 1.00MM
1	L112222	1	Washer	TK = 1.05MM
1	L112218	1	Washer	TK = 1.15MM
1	L112212	1	Washer	TK = 0.70MM
2	JD37087	1	Tapered Roller Bearing	-
3	34M7047	4	Spring Pin	8 X 40 mm
4	34M7135	4	Spring Pin	14 X 40 mm
5	19M8119	12	Screw	M12 X 130, M12X130 (12.9)
6	L100150	1	Disk With Outer Spline	TK = 1.00MM
6	L100151	1	Disk With Outer Spline	TK = 1.10MM
6	L100152	1	Disk With Outer Spline	TK = 1.20MM
7	L100153	8	Disk With Inner Spline	-
8	L100154	2	Thrust Washer	-
9	L101697	2	Bevel Gear	-
10	L101698	4	Bevel Gear	-
11	L40253	4	Washer	-
12	L101699	1	Housing	-
13	L39983	2	Axle With Differential	-
14	R75522	12	Lock Washer	(SUB FOR L40254)
15	JD37219	1	Tapered Roller Bearing	RH (SUB FOR AL81823)

MULTIPLE DISK SELF-LOCK. DIFFERENTIAL, MFWD-AXLE
