Открытый узел

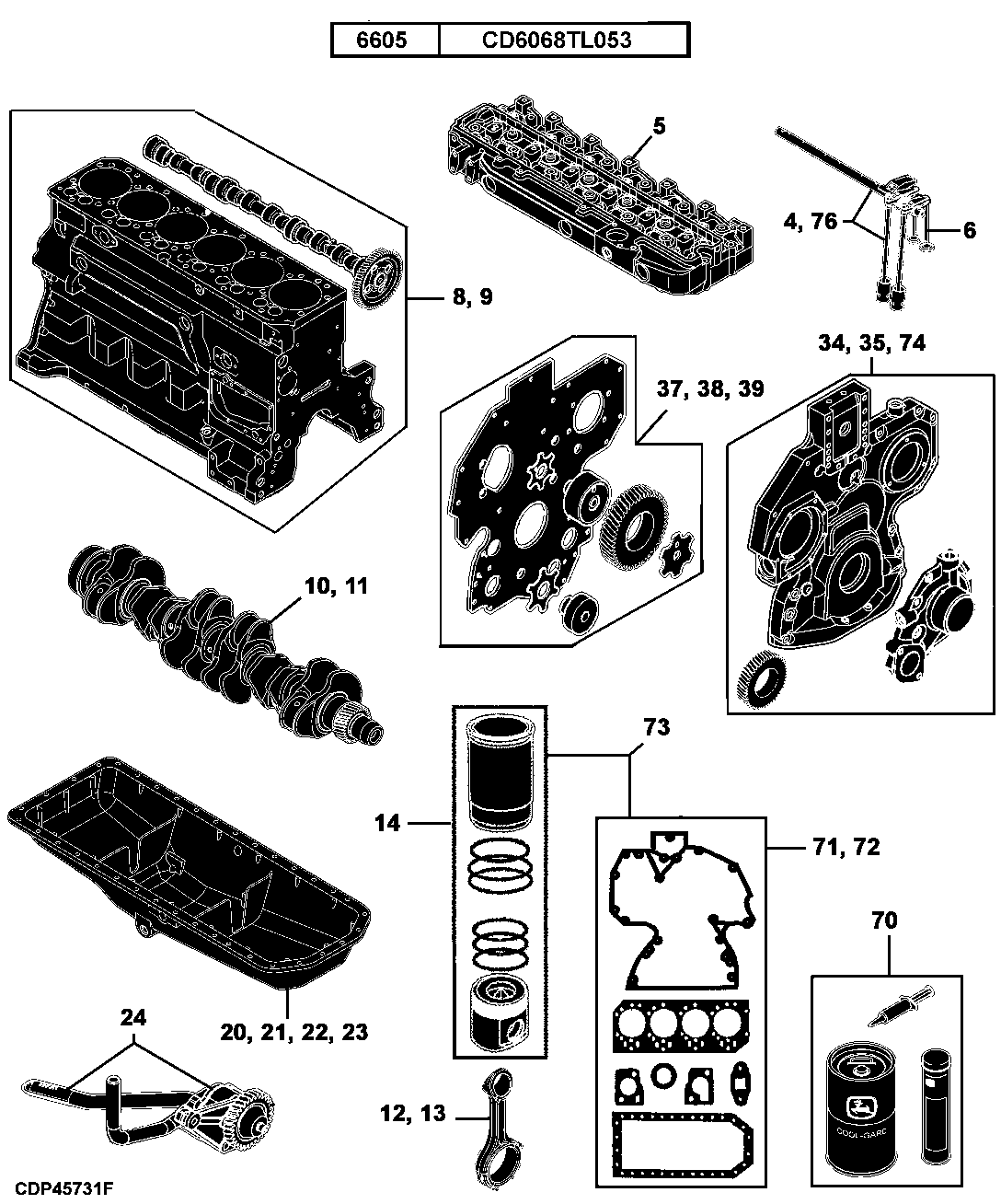

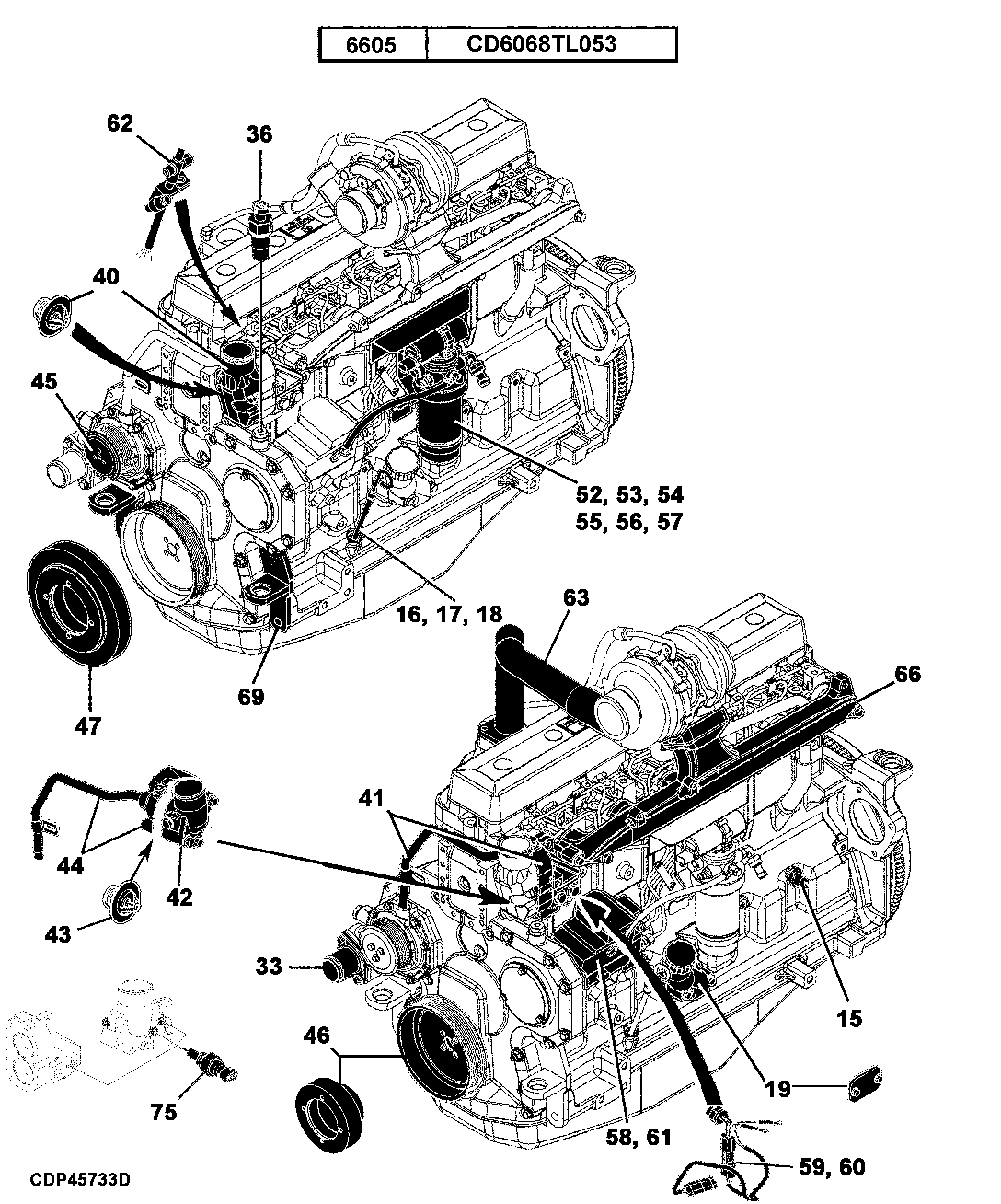

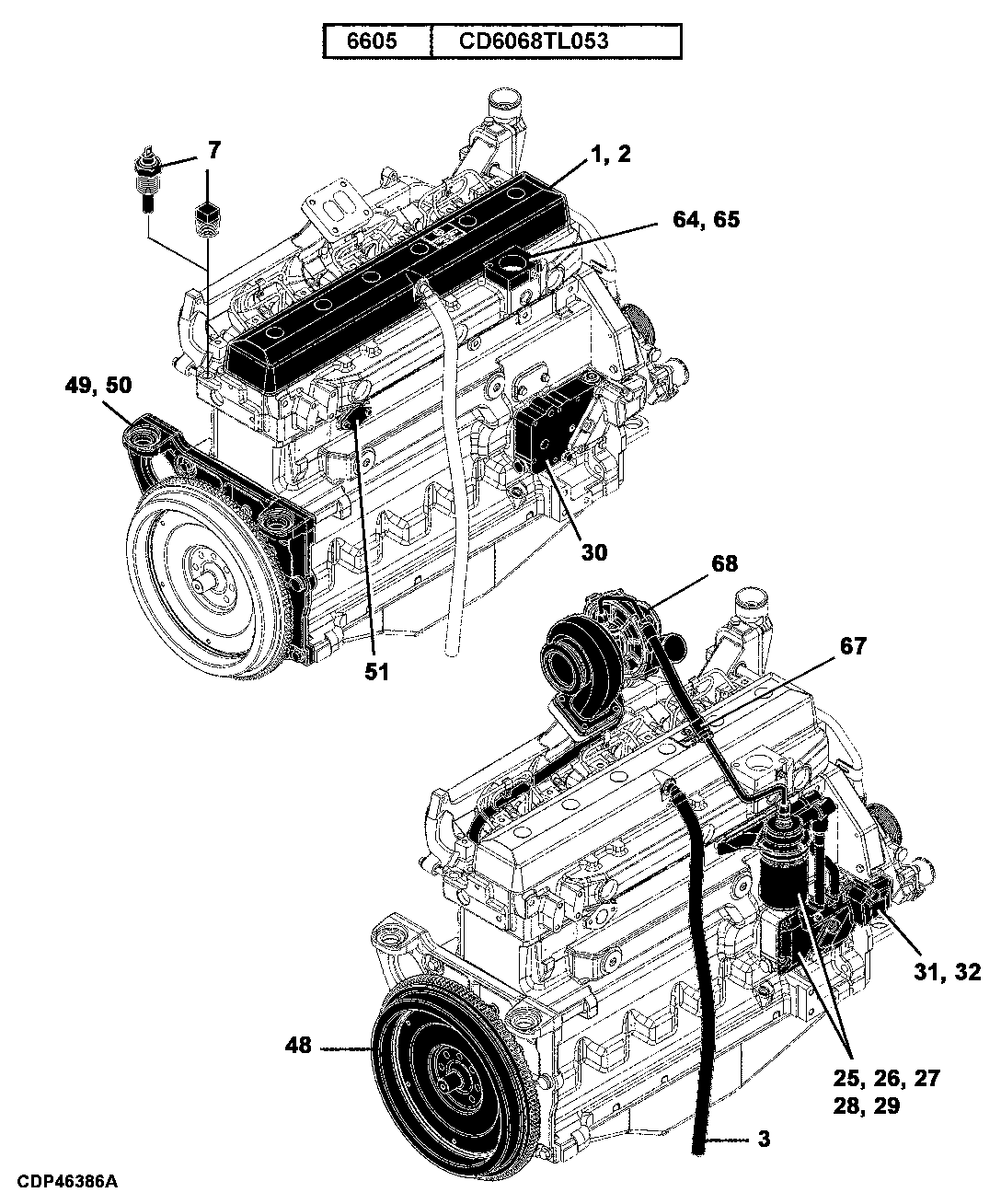

20 ENGINE, 6605 (6068TL053)

20 ENGINE, 6605 (6068TL053)

20 ENGINE, 6605 (6068TL053)

20 ENGINE, 6605 (6068TL053)

20 ENGINE, 6605 (6068TL053)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

20 ENGINE, 6605 (6068TL053)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	OIL FILTER / ADAPTER	-
-	-	1	ROCKER ARM / SHAFT / TAPPET / PUSH ROD	-
-	-	1	ROCKER ARM / SHAFT / TAPPET / PUSH ROD	-
-	-	1	PISTON / LINER - KIT	-
-	-	1	OIL PUMP	-
-	-	1	OIL PAN, CONVERSION KIT	-
-	-	1	Oil Pan - Late Design	-
-	-	1	Oil Pan - Early Design	-
-	-	1	OIL PAN - EARLY DESIGN	-
-	-	1	OIL FILTER, ADAPTER, OIL LINES	-
-	-	1	SHORT BLOCK ASSEMBLY	-
-	-	1	OIL FILLER NECK (LEFT HAND SIDE)	-
-	-	1	OIL COOLER	-
-	-	1	MAGNETIC PICK-UP	-
-	-	1	LIQUID GASKET, GREASE FOR CAMSHAFT BUSHING, COOLANT	-
-	-	1	KIT, PRIMARY FUEL FILTER ( ACCESSORY )	-
-	-	1	KIT, PRIMARY FUEL FILTER ( ACCESSORY )	-
-	-	1	INTERMEDIATE HOUSING (OIL COOLER / WATER PUMP)	-
-	-	1	INTERMEDIATE HOUSING (OIL COOLER / WATER PUMP)	-
-	-	1	INTAKE MANIFOLD	-
-	-	1	TIMING GEAR COVER, WATER PUMP (CAST IRON, WITH INSERT), LOWER IDLE GEAR	-
-	-	1	WATER TEMPERATURE SENSOR (WITH 2-POST ROLL GARD) - PLUG	-
-	-	1	WATER TEMPERATURE SENSOR	-
-	-	1	WATER PUMP PULLEY	-
-	-	1	WATER PUMP INTAKE	-
-	-	1	VALVE COVER	-
-	-	1	VALVE COVER	-
-	-	1	VALVE / VALVE SEAT / SPRING / ROTATOR	-
-	-	1	TURBOCHARGER OIL LINES	-
-	-	1	TURBOCHARGER	-
-	-	1	INJECTION NOZZLE	-
-	-	1	TIMING GEAR COVER, WATER PUMP (CAST IRON, WITH INSERT), LOWER IDLE GEAR	-
-	-	1	TIMING GEAR COVER, WATER PUMP (ALUMINIUM, W/O INSERT), LOWER IDLE GEAR	-
-	-	1	THERMOSTAT HOUSING / BY PASS TUBE TO WATER PUMP (SINGLE THERMOSTAT)	-
-	-	1	THERMOSTAT HOUSING / BY PASS TUBE TO WATER PUMP (DOUBLE THERMOSTAT)	-
-	-	1	THERMOSTAT COVER (SINGLE THERMOSTAT)	-
-	-	1	THERMOSTAT / COVER (DOUBLE THERMOSTAT)	-
-	-	1	THERMOSTAT (SINGLE)	-
-	-	1	SWITCH, OIL PRESSURE	-
-	-	1	COVER, WITHOUT FUEL PUMP	-
-	-	1	DIPSTICK / GUIDE (LEFT HAND SIDE)	-
-	-	1	DIPSTICK / GUIDE (LEFT HAND SIDE)	-
-	-	1	DIPSTICK / GUIDE (LEFT HAND SIDE)	-
-	-	1	CYLINDER HEAD	-
-	-	1	CYLINDER BLOCK	-
-	-	1	CRANKSHAFT WITH TAPER NOSE / BEARINGS	-
-	-	1	CRANKSHAFT WITH STRAIGHT NOSE / BEARINGS	-
-	-	1	CRANKSHAFT PULLEY AND TORSIONAL DAMPENER FOR CRANKSHAFT WITH STRAIGHT NOSE	-
-	-	1	CRANKSHAFT PULLEY , WITH TORSIONAL DAMPENER FOR CRANKSHAFT WITH TAPER NOSE	-
-	-	1	ENGINE FRONT BRACKETS	-
-	-	1	CONVERSION KIT, OIL FILTER ADAPTER / OIL LINES	-
-	-	1	CONNECTING ROD / BEARINGS	-
-	-	1	CONNECTING ROD / BEARINGS	-
-	-	1	BREATHER	-
-	-	1	AIR HEATER (LATE DESIGN)	-
-	-	1	AIR HEATER (EARLY DESIGN)	-
-	-	1	ADAPTER / OIL LINES	-
-	-	1	ADAPTER / OIL LINES	-
-	-	1	FLYWHEEL HOUSING	-
-	-	1	IDLE GEAR (UPPER) , CONVERSION KIT	-
-	-	1	IDLE GEAR (UPPER)	-
-	-	1	GASKET KIT, TUNE-UP	-
-	-	1	FUEL LINES	-
-	-	1	FUEL INJECTION PUMP WIRING HARNESS AND SENSOR	-
-	-	1	FUEL INJECTION PUMP WIRING HARNESS AND SENSOR	-
-	-	1	FUEL INJECTION PUMP	-
-	-	1	FRONT PLATE AND UPPER IDLE GEAR	-
-	-	1	FLYWHEEL HOUSING	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	FLYWHEEL	-
-	-	1	FINAL FUEL FILTER / FUEL LINE	-
-	-	1	FINAL FUEL FILTER / FUEL LINE	-
-	-	1	FINAL FUEL FILTER / FUEL LINE	-
-	-	1	FINAL FUEL FILTER	-
-	-	1	EXHAUST MANIFOLD	-
-	-	1	ENGINE OVERHAUL KIT	-
-	-	1	ENGINE GASKET SET, OVERHAUL	-
