Открытый узел

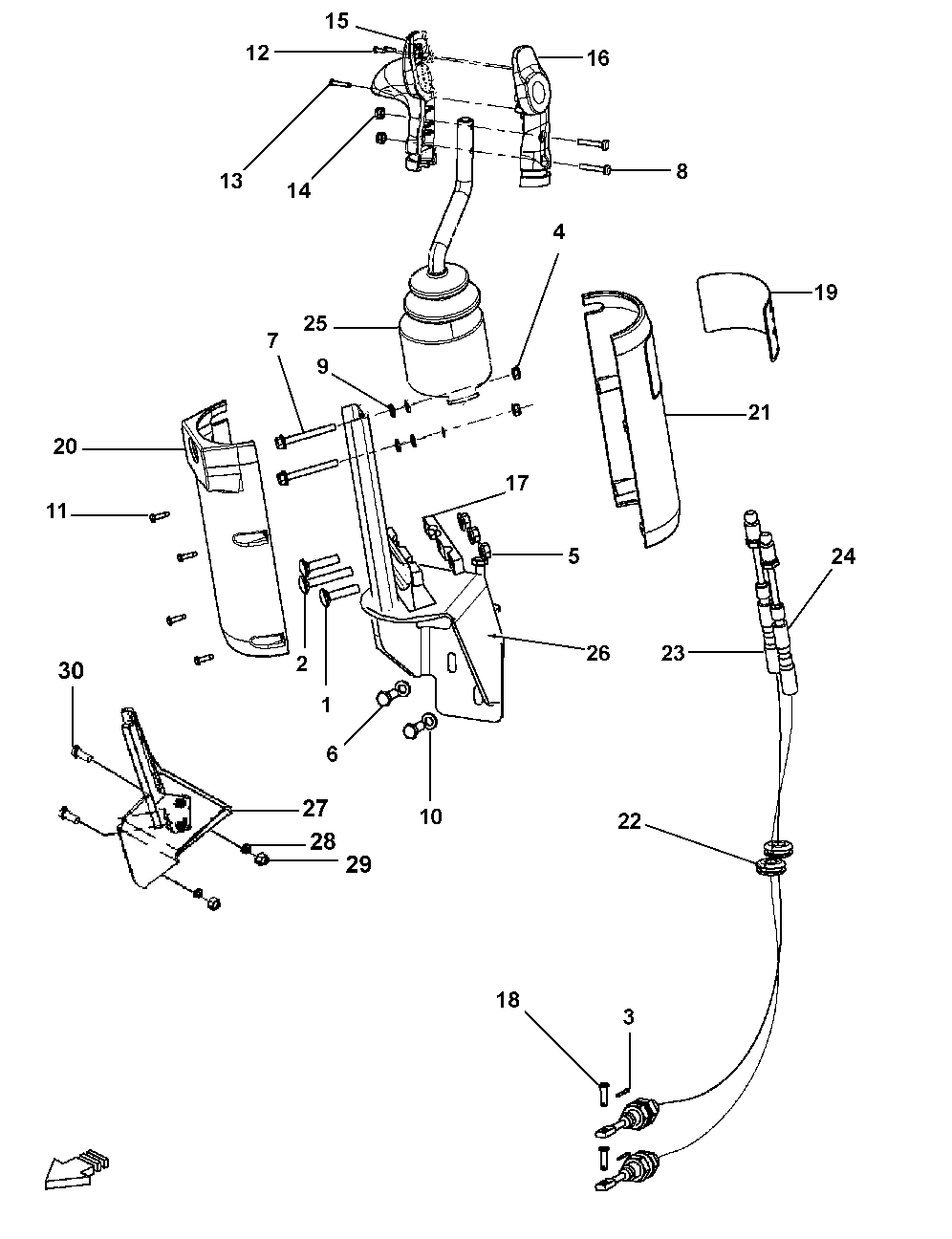

DUAL SCV JOYSTICK (CAB AND OOS TRACTORS)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7187	2	Bolt	(CAB TRACTORS) (OOS TRACTORS) M8 X 35
2	03M7216	1	Bolt	(CAB TRACTORS) (OOS TRACTORS) M8 X 50
3	11M7080	2	Cotter Pin	(CAB TRACTORS) (OOS TRACTORS) 2.500 X 16 mm
4	14M7165	2	Lock Nut	(CAB TRACTORS) (OOS TRACTORS) M6
5	14M7298	3	Flange Nut	(CAB TRACTORS) (OOS TRACTORS) M8
6	19M7881	3	Screw	(CAB TRACTORS) M8 X 20
7	19M8069	2	Screw	(CAB TRACTORS) (OOS TRACTORS) M6 X 55
8	21H1486	2	Screw	(CAB TRACTORS) (OOS TRACTORS) 0.190" X 1-1/8"
9	24M7054	4	Washer	(CAB TRACTORS) (OOS TRACTORS) 6.400 X 12 X 1.600 mm
10	24M7055	3	Washer	(CAB TRACTORS) 8.400 X 16 X 1.600 mm
11	37M7068	4	Screw	(CAB TRACTORS) (OOS TRACTORS)
12	37M7355	2	Screw	(CAB TRACTORS) (OOS TRACTORS)
13	37M7356	1	Screw	(CAB TRACTORS) (OOS TRACTORS)
14	LVA12162	2	Lock Nut	(CAB TRACTORS) (OOS TRACTORS)
15	LVU16701	1	Grip	(CAB TRACTORS) (OOS TRACTORS)
16	LVU16651	1	Grip	(CAB TRACTORS) (OOS TRACTORS)
17	R109390	2	Clamp	(CAB TRACTORS) (OOS TRACTORS)
18	R128357	2	Pin Fastener	(CAB TRACTORS) (OOS TRACTORS) 6.310 X 20.500 mm (0.248" X 0.807")
19	R130950	1	Label	(CAB TRACTORS) (OOS TRACTORS)
20	R208766	1	Shield	(CAB TRACTORS) (OOS TRACTORS)
21	R218827	1	Shield	(CAB TRACTORS) (OOS TRACTORS)
22	R70350	2	Grommet	(CAB TRACTORS) (OOS TRACTORS)
23	SJ10695	1	Cable	(CAB TRACTORS) (OOS TRACTORS)
24	SJ10695	1	Cable	(CAB TRACTORS) (OOS TRACTORS)
25	RE207317	1	Basic Control Unit	(CAB TRACTORS) (OOS TRACTORS)
26	RE224901	1	Bracket	(CAB TRACTORS)
27	RE192850	1	Bracket	(OOS TRACTORS)
28	12M7066	2	Lock Washer	(OOS TRACTORS) 10 mm
29	14M7274	2	Nut	(OOS TRACTORS) M10
30	19M7402	2	Cap Screw	(OOS TRACTORS) M10 X 25

DUAL SCV JOYSTICK (CAB AND OOS TRACTORS)

Нет текстового описания
