VARIABLE SPEED CYLINDER CONTROL ON SEPARATOR SIDE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34H283	2	Spring Pin	3/16" X 1-1/8"
2	H76501	2	Chain Sprocket	(SUB H84541)
2	H84541	2	Chain Sprocket	Z=20
2	H89035	2	Chain Sprocket	Z=14
3	03H1505	1	Bolt	5/16" X 1-3/4"
3	14H785	1	Nut	5/16"
4	H76518	1	Tightener	BLOCK
5	-	1	Part 8	CONTROL, 81 LINKS, 3/8" PITCH ROLLER CHAIN (ASSEMBLE FROM 79 LINKS OF AH168527, SW35OLUS, AND SW35COUS)
5	-	1	Part 9	CONTROL, ROLLER, TYPE 65, 13 MM (1/2") PITCH, 61 LINKS (ASSEMBLE FROM 59 LINKS OF AB18594, AB17232, AND AB14025)
6	24H1305	2	Washer	13/32" X 13/16" X 0.065"
7	P47883	2	Tightener	BLOCK
8	14H812	3	NUT	3/8"
8	19H1731	3	Cap Screw	3/8" X 1"
9	H82542	1	Bracket	-
10	03H1468	2	Bolt	3/8" X 1-3/4"
10	03H2020	2	Bolt	3/8" X 2"
10	14H812	2	NUT	3/8"
11	-	1	Part 18	CONTROL, ROLLER, TYPE 35, 3/8" PITCH, 171 LINKS (ASSEMBLE FROM 169 LINKS OF AH168527, SW35OLUS, AND SW35COUS)
11	-	1	Part 19	CONTROL, ROLLER, TYPE 65, 13 MM (1/2") PITCH, 129 LINKS (ASSEMBLE FROM 127 LINKS OF AB18594, AB14025, AND AB17232)
12	AH80953	1	Bracket	-
13	H86170	1	Support	-
14	24H1305	2	Washer	13/32" X 13/16" X 0.065"
15	H76529	1	Shaft	-
16	24H1294	1	Washer	11/32" X 1-1/8" X 1/16"
17	H96911	1	Strap	-

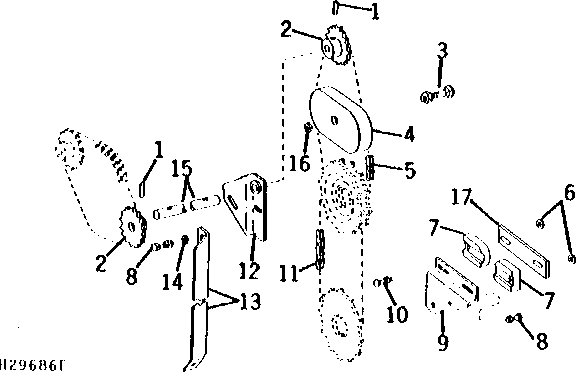

VARIABLE SPEED CYLINDER CONTROL ON SEPARATOR SIDE
