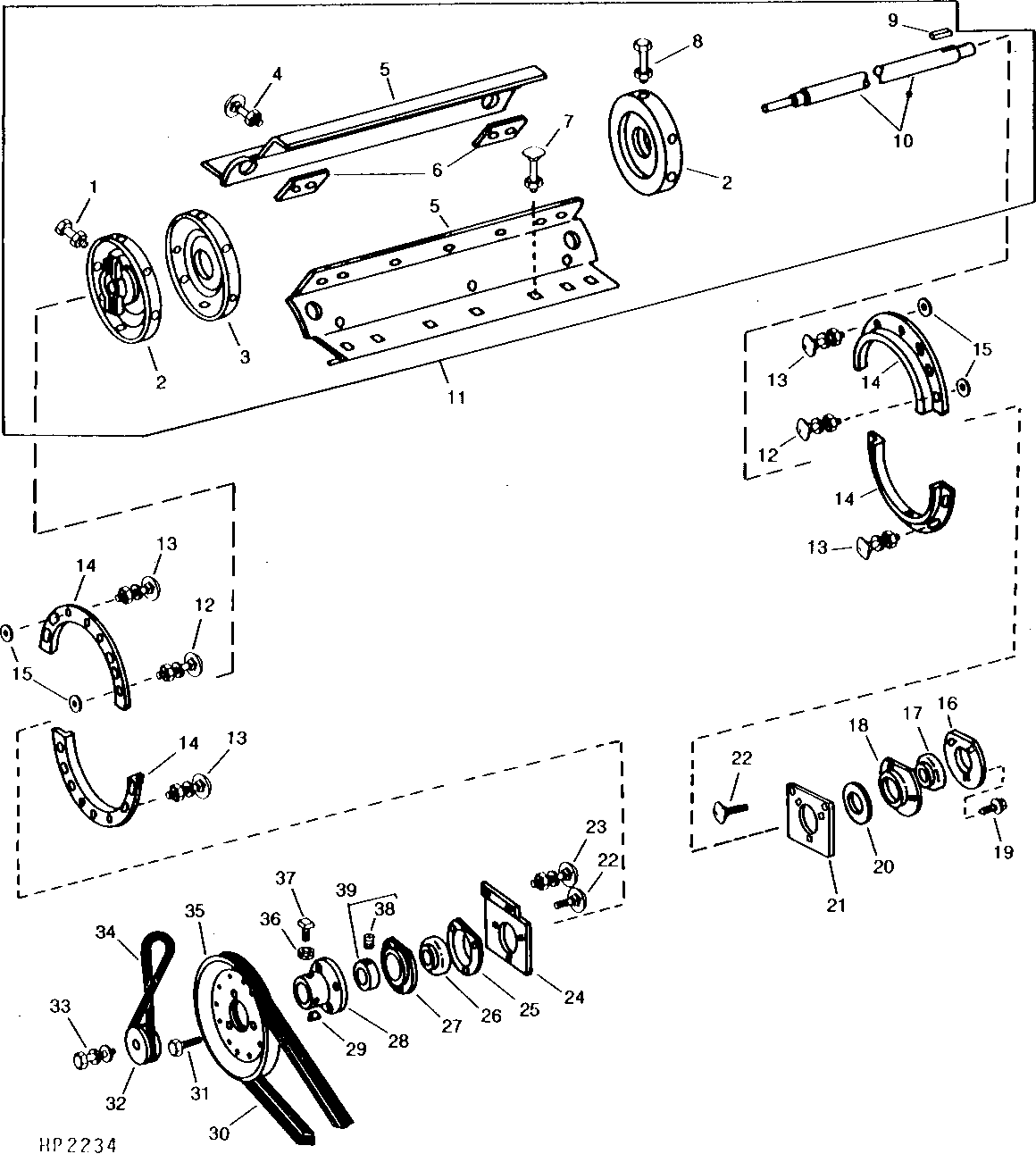

ROTARY DEFLECTOR AND TACHOMETER DRIVE (SIX-WING) (CONVERSION)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H301	2	Lock Washer	1/2"
1	03H1439	2	Bolt	1/2" X 1-3/4"
1	14H1040	2	Nut	1/2"
2	AH113355	2	Cylinder Head	-
3	AH113362	1	Cylinder Head	-
4	03H1480	1	Bolt	3/8" X 1-1/4"
4	12H304	1	Lock Washer	3/8"
4	14H812	1	NUT	3/8"
5	H117550	6	Beater	-
6	H110734	1	Strap	-
6	H110736	1	Strap	-
6	24H1781	1	Washer	13/32" X 7/8" X 1/4", (USE WITH H110734)
6	24H1307	1	Washer	13/32" X 1" X 1/16", (USE WITH H110736)
7	03H1519	36	Bolt	3/8" X 1"
7	12H304	36	Lock Washer	3/8"
7	14H812	36	NUT	3/8"
8	19H1936	18	Cap Screw	3/8" X 3/4"
8	12H304	18	Lock Washer	3/8"
9	-	1	Part 19	10 MM X 10 MM X 50 MM (3/8" X 3/8" X 2"), (CUT FROM H64376 IN AH64587 KEY STOCK KIT)
10	H110004	1	Shaft	-
11	AH114806	1	Beater	-
12	03H1709	2	Bolt	5/16" X 1"
12	12H303	2	Lock Washer	5/16"
12	14H785	2	Nut	5/16"
13	03H1540	2	Bolt	5/16" X 3/4"
13	12H303	2	Lock Washer	5/16"
13	14H785	2	Nut	5/16"
14	H98955	4	Seal	-
15	24H1136	1	Washer	11/32" X 11/16" X 0.065"
16	AH93700	1	Pressed Flanged Housing	(USE WITH JD7845)
16	JD7845	1	Elbow Fitting	-
17	JD9335	1	Ball Bearing	-
18	H84356	3	Pressed Flanged Housing	-
19	H76139	3	Screw	-
20	H84357	1	Ring	-
21	H79665	1	Bracket	-
22	03H1500	3	Bolt	3/8" X 1"
23	03H1522	4	Bolt	1/2" X 1-1/4"
23	12H301	4	Lock Washer	1/2"
24	H79666	1	Bracket	-
25	N34367	1	Pressed Flanged Housing	-
26	JD10007	1	Ball Bearing	(SUB FOR JD9367)
27	H93864	1	Pressed Flanged Housing	-
27	JD7845	1	Elbow Fitting	-
28	H82323	1	Hub	-
29	26H92	1	Shaft Key	7/32" X 1-1/4"
30	H101352	1	V-Belt	-
31	19H1936	3	Cap Screw	3/8" X 3/4"
32	H101529	1	Idler	-
33	19H1732	1	Cap Screw	3/8" X 1-1/4"
33	12H304	1	Lock Washer	3/8"
33	24H1305	1	Washer	13/32" X 13/16" X 0.065"
34	H83077	1	O-Ring	-
35	AH100302	1	Pulley	178 MM (7") DIA.
36	14H732	2	Nut	3/8"
37	22H836	1	Set Screw	3/8" X 1"
38	22H775	1	Set Screw	5/16" X 1/4"
39	JD8544	1	Bearing	-

ROTARY DEFLECTOR AND TACHOMETER DRIVE (SIX-WING) (CONVERSION)
