ROTARY DEFLECTOR AND TACHOMETER DRIVE (FOUR-WING) (353601 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(CUT FROM H64376 IN AH64587 KEY STOCK KIT)
4	24H1311	1	Washer	13/32" X 1-1/4" X 0.220"
5	19H1731	1	Cap Screw	3/8" X 1"
7	-	4	Part 14	(SUB AH108553)
8	AH92069	2	Cylinder Head	(SUB AH108553)
9	AH100271	2	Cylinder Head	-
9	AH96255	2	Cylinder Head	(SUB AH100271, 03H1439, 12H301 AND 14H1040)
10	AH101474	1	Cylinder Head	(SUB AH108553)
11	H101799	4	Blade	-
12	H101798	1	Drum	-
14	AH105938	1	Deflector	(SUB AH108553)
15	14H812	1	NUT	3/8"
15	12H304	1	Lock Washer	3/8"
15	08H4678	1	Bolt	3/8" X 2-1/2"
16	24H1305	4	Washer	13/32" X 13/16" X 0.065"
17	AH108553	1	Beater	(SUB AH114806)
18	24H1136	1	Washer	11/32" X 11/16" X 0.065"
19	H98955	4	Seal	-
20	14H785	2	Nut	5/16"
20	12H303	2	Lock Washer	5/16"
20	03H1540	2	Bolt	5/16" X 3/4"
21	03H1709	2	Bolt	5/16" X 1"
21	12H303	2	Lock Washer	5/16"
21	14H785	2	Nut	5/16"
22	AH93700	1	Pressed Flanged Housing	(USE WITH JD7845)
22	JD7845	1	Elbow Fitting	-
23	JD9335	1	Ball Bearing	-
24	H84356	1	Pressed Flanged Housing	-
25	H76139	3	Screw	-
26	H84357	1	Ring	-
27	H79665	1	Bracket	RH
28	03H1500	3	Bolt	3/8" X 1"
29	03H1522	4	Bolt	1/2" X 1-1/4"
29	12H301	4	Lock Washer	1/2"
29	14H1040	4	Nut	1/2"
30	H79666	1	Bracket	LH
31	22H775	1	Set Screw	5/16" X 1/4"
32	JD8544	1	Bearing	-
33	22H836	1	Set Screw	3/8" X 1"
34	14H732	2	Nut	3/8"
35	AH100302	1	Pulley	-
36	H83077	1	O-Ring	-
37	19H1732	1	Cap Screw	3/8" X 1-1/4"
37	12H304	1	Lock Washer	3/8"
37	24H1305	1	Washer	13/32" X 13/16" X 0.065"
38	H101529	1	Idler	-
38	H101285	1	Idler	(SUB H101529)
39	19H1936	3	Cap Screw	3/8" X 3/4"
40	H101352	1	V-Belt	-
41	H82323	1	Hub	-
42	26H92	1	Shaft Key	7/32" X 1-1/4"
43	JD7845	1	Elbow Fitting	-
43	H93864	1	Pressed Flanged Housing	-
44	JD10007	1	Ball Bearing	(SUB FOR JD9367)
45	N34367	1	Pressed Flanged Housing	-
2A	-	1	Part 2	(CUT FROM H64376 IN AH64587 KEY STOCK KIT)
2B	-	1	Part 3	(CUT FROM H64376 IN AH64587 KEY STOCK KIT)
3A	H101367	1	Shaft	(SUB H110004)
3B	H110004	1	Shaft	-
6A	14H1040	3	Nut	1/2"
6A	03H1439	3	Bolt	1/2" X 1-3/4"
6A	12H301	3	Lock Washer	1/2"
6B	14H1040	2	Nut	1/2"
6B	12H301	2	Lock Washer	1/2"
6B	03H1439	2	Bolt	1/2" X 1-3/4"
13A	19H1731	16	Cap Screw	3/8" X 1"
13A	12H304	16	Lock Washer	3/8"
13B	14H812	16	NUT	3/8"
13B	19H1732	16	Cap Screw	3/8" X 1-1/4"
13B	12H304	16	Lock Washer	3/8"
13C	19H1732	16	Cap Screw	3/8" X 1-1/4"
13C	12H304	16	Lock Washer	3/8"

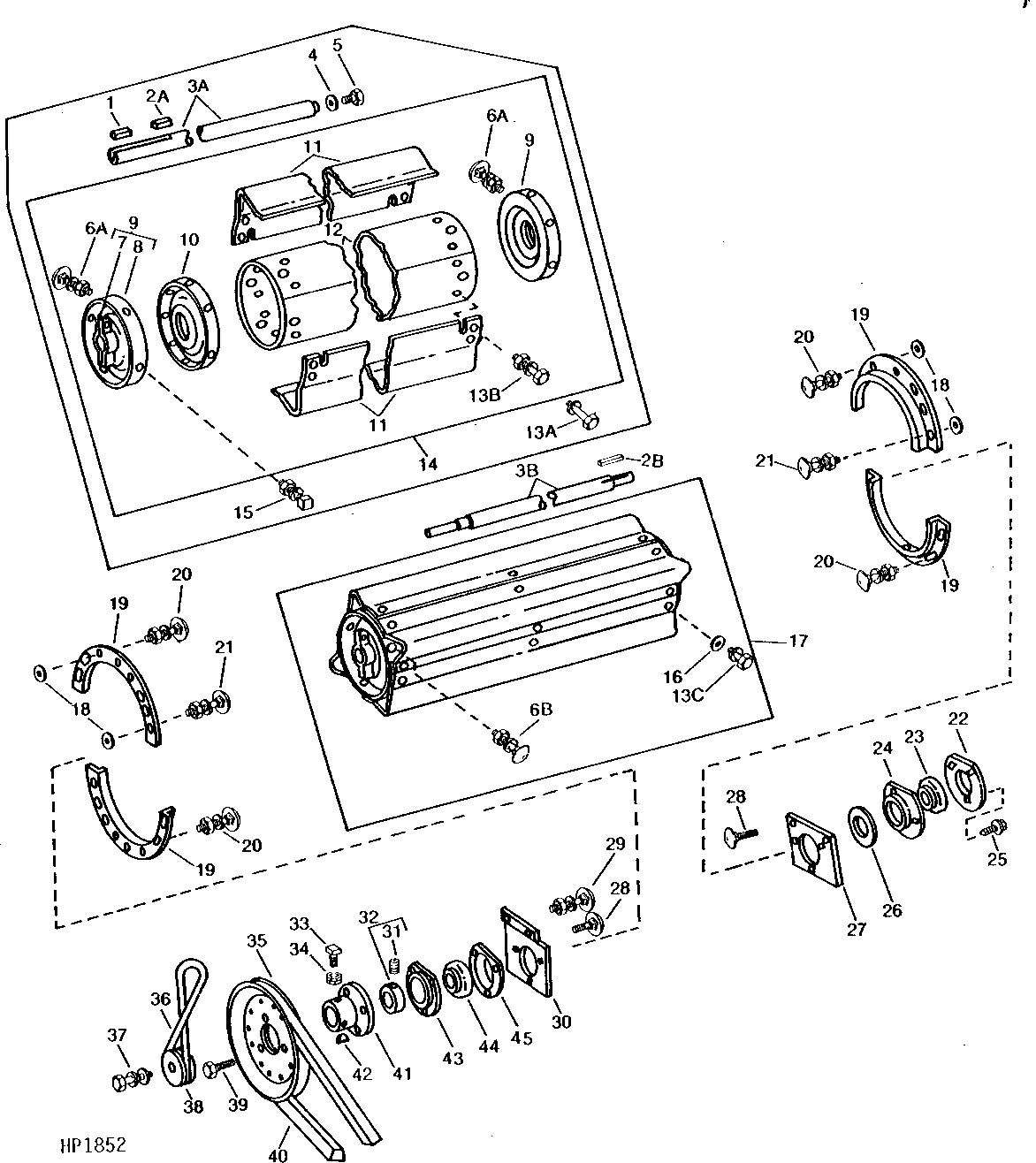

ROTARY DEFLECTOR AND TACHOMETER DRIVE (FOUR-WING) (353601 - )
