PLATFORM ROCKER, PIVOT PIN, AND BRACES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH80037	1	Rocker	OUTER
2	24H1305	10	Washer	13/32" X 13/16" X 0.065"
3	PK641H	6	Washer	BEVEL
4	19H1800	2	Cap Screw	3/8" X 1-1/2"
4	14H812	2	NUT	3/8"
5	AH79638	1	Pin	-
6	19H1721	16	CAP SCREW	1/2" X 1-1/2"
6	12H301	16	Lock Washer	1/2"
6	14H1040	16	Nut	1/2"
7	JD7759	1	Lubrication Fitting	-
8	14H975	2	Nut	1-1/4"
9	H65322	1	Washer	-
10	10H1028	4	Bolt	3/8" X 1-1/2"
10	14H812	4	NUT	3/8"
11	14H812	4	NUT	3/8"
11	19H1800	4	Cap Screw	3/8" X 1-1/2"
12	H75901	2	Anchor	-
13	19H1731	17	Cap Screw	3/8" X 1"
13	14H812	17	NUT	3/8"
14	H65387	1	Bracket	BRACE, RH, OUTER
15	H81968	2	Brace	-
16	H81969	1	Bracket	BRACE, RH, INNER
17	19H1815	4	Cap Screw	1/2" X 1-1/4"
17	12H301	4	Lock Washer	1/2"
17	14H1040	4	Nut	1/2"
18	14H812	8	NUT	3/8"
19	24H1303	8	WASHER	13/32" X 11/16" X 0.065"
20	P41720	4	U-Bolt	-
21	AH83778	1	Rocker	INNER
21	AH79649	1	Rocker	(SUB AH83778)
22	19H1821	2	CAP SCREW	7/16" X 1-1/4"
22	12H293	2	Lock Washer	7/16"
22	14H813	2	Nut	7/16"
23	H81205	1	Brace	RH
24	H81827	1	Seal	RH
25	H82305	1	Guide	PLATFORM, LOWER
26	H81828	1	Seal	LH
27	H81204	1	Brace	LH
28	19H1732	2	Cap Screw	3/8" X 1-1/4"
28	14H812	2	NUT	3/8"
29	H81970	1	Bracket	BRACE, LH, INNER
30	H65388	1	Bracket	BRACE, LH, OUTER
31	24H1287	9	Washer	9/32" X 5/8" X 0.065"
32	19H1914	9	Cap Screw	1/4" X 1"
32	14H786	9	Nut	1/4"
33	24H1371	5	Washer	21/32" X 1-3/8" X 0.194"
34	AP26398	5	Ball Bearing	-
35	19H1734	5	Cap Screw	5/8" X 2"
36	H82609	1	Shim	0.030" THICK
37	H83939	1	Strap	0.060" THICK
38	19H1721	4	CAP SCREW	1/2" X 1-1/2", (20' PLATFORM)
38	12H301	4	Lock Washer	1/2"
38	14H1040	4	Nut	1/2"
39	H84178	2	Brace	END (20' PLATFORM)

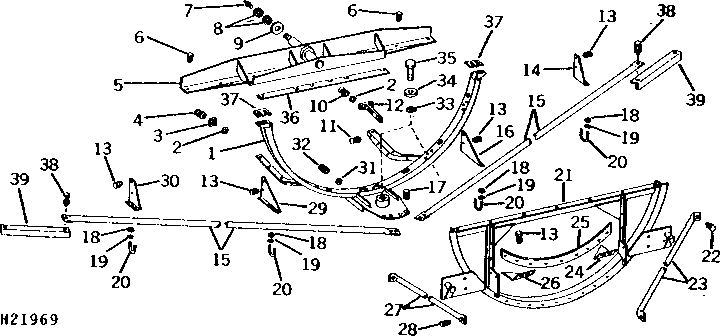

PLATFORM ROCKER, PIVOT PIN, AND BRACES
