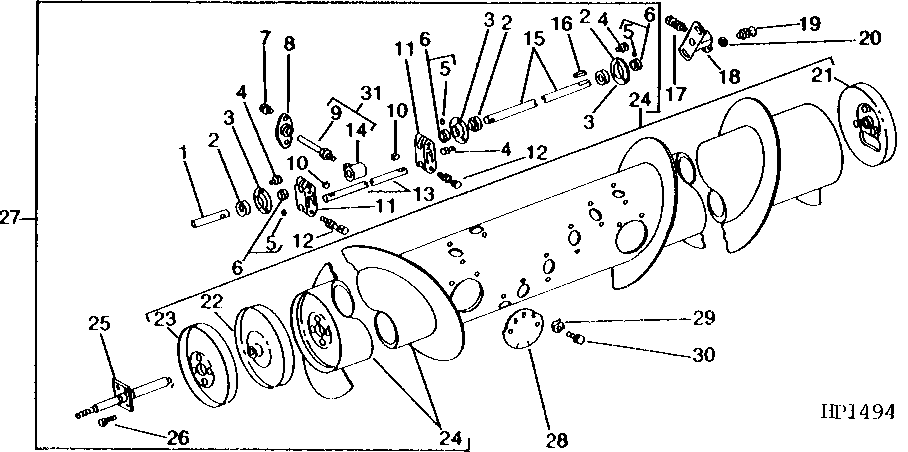

PLATFORM AUGER, SHAFTS, AND FINGERS

PLATFORM AUGER, SHAFTS, AND FINGERS

PLATFORM AUGER, SHAFTS, AND FINGERS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

PLATFORM AUGER, SHAFTS, AND FINGERS

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	P39829	1	Pin Fastener	-
2	JD8555	3	BALL BEARING	(SUB JD8665, THIS APPLICATION)
2	JD8665	3	Ball Bearing	-
3	H87472	3	Pressed Flanged Housing	(SUB FOR P47232)
3	H84555	6	Pressed Flanged Housing	-
4	H65108	9	Screw	-
4	19H1900	9	Cap Screw	5/16" X 3/4"
4	12H303	9	Lock Washer	5/16"
5	22H897	3	Set Screw	1/4" X 1/4"
6	JD8554	3	Eccentric Locking Collar	-
7	H78354	26	SCREW	-
8	H77515	13	Guide	-
8	H85241	13	Guide	-
9	H86054	13	Finger	(SUB FOR H84546)
9	AH235414	13	Finger	SUB FOR H86054
9	H65229	13	Finger	-
10	26H14	2	SHAFT KEY	3/16" X 3/4"
11	H89702	2	Crank	(SUB FOR H11347 OR H86744)
12	19H1801	6	CAP SCREW	3/8" X 2"
12	19H1726	6	Cap Screw	3/8" X 2-1/4"
12	P51186	6	Lock Nut	(SUB H86656 AND 19H1801)
12	H99923	6	Lock Nut	(SUB FOR H86656)
13	H34592	1	Shaft	-
14	AH89833	1	Bearing	-
14	H84549	1	Bearing	(SUB FOR AH89832)
15	H60200	1	Shaft	20', RH
15	H85234	1	Shaft	18', RH
15	H62716	1	Shaft	(SUB H85234)
16	-	1	Part 29	(CUT FROM H64373 IN AH64587 KEY STOCK KIT)
17	19H1726	1	Cap Screw	3/8" X 2-1/4"
17	14H812	1	NUT	3/8"
18	H63076	1	Support	ADJUSTABLE
19	03H1500	2	Bolt	3/8" X 1"
19	14H812	2	NUT	3/8"
20	24H1305	2	Washer	13/32" X 13/16" X 0.065"
21	H34589	1	Hub	RH, OUTER
21	AH87861	1	Hub	(SUB FOR AH84989) RH, OUTER
22	AH83396	1	Hub	LH, INNER
23	AH84326	1	Hub	LH, OUTER
24	AH87853	1	Auger	LESS SHAFTS AND FINGERS (18' PLATFORM) (WITH AH87193, SUB FOR AH80971, AH84339, AND AH84996)
24	AH87855	1	Auger	LESS SHAFTS AND FINGERS (20' PLATFORM) (WITH AH87193, SUB FOR AH84341 AND AH84997)
25	AH63649	1	Drive Shaft	-
26	19H1815	4	Cap Screw	1/2" X 1-1/4"
26	12H301	4	Lock Washer	1/2"
28	H36018	2	Cover	-
29	P41706	4	Nut	-
30	19H1919	4	Cap Screw	1/4" X 5/8"
31	AH20348	13	Finger	(WITH BEARING), (SUB AH89833 AND H65229)
31	AH84987	13	Finger	(WITH BEARING), (SUB AH87177)
31	AH87177	13	Finger	(WITH BEARING), (SUB AH89832), ORDER AH235414
31	AH235414	1	Finger	-
99	AH87193	1	Auger	(CONSISTS OF (13) AH87177, (26) H78354, (6) H84555, (13) H85241, (9) 12H303, AND (9) 19H1900), (SUB FOR AH86636)
