HYDROSTATIC DRIVE SPEED RANGE CONTROL VALVE ( - 353600)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34H251	1	Spring Pin	1/8" X 1"
2	H63240	1	ACTUATOR	-
3	H97032	1	TORSION SPRING	(SUB FOR H63239), (FOR SUNDSTRAND MODEL NO. 90-4002)
4	H97033	1	Sleeve	(SUB FOR H63238), (FOR SUNDSTRAND MODEL NO. 90-4002)
5	H63237	1	Snap Ring	-
6	R30828	6	SNAP RING	-
6	R30828	1	SNAP RING	-
8	H63235	2	PIN FASTENER	(FOR SUNDSTRAND MODEL NO. 90-4002, PRIOR TO SERIAL NO. PREFIX 10)
9	H97227	1	LINK	(FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. PREFIX 10 AND UP)
9	H81631	1	LINK	(FOR SUNDSTRAND MODEL NO. 90-4002, PRIOR TO SERIAL NO. PREFIX 10)
10	H81632	1	STOP	-
11	H81633	1	LINK	-
12	H63231	1	SHAFT	-
13	A3917R	1	O-Ring	-
14	H81628	1	BUSHING	-
15	U15242	1	O-RING	-
16	H81621	1	WASHER	(B)
17	H81622	1	HANDLE	(B), (FOR SUNDSTRAND MODEL NO. 90-4002, PRIOR TO SERIAL NO. PREFIX 09)
17	H97704	1	STRAP	(B), (FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. PREFIX 10 AND UP)
18	12H297	1	Lock Washer	1/4", (B)
19	14H850	1	NUT	1/4", (B)
20	H214561	1	Gasket	(SUB FOR H63222)
21	P46051	2	O-Ring	(USE WITH SPOT-FACED SEAT OR ORIFICE)
21	H81608	2	O-Ring	(A), (B)(USE WITH GROOVED SEAT)
22	-	1	Part 27	(SUB AH80069)
23	24H1286	9	Washer	9/32" X 1/2" X 1/16", (B)
24	19H2333	7	Cap Screw	1/4" X 2-1/4", (B)
25	R28782	2	O-Ring	-
26	AH63282	2	FITTING PLUG	-
27	19H2102	2	Cap Screw	1/4" X 1-3/4", (B)
28	H63228	1	LOCK NUT	-
29	U15980	1	O-Ring	-
30	H63227	1	HOUSING	-
31	-	1	Part 36	(SUB AH80069)
32	H63225	2	WASHER	-
33	H81629	1	CAP	-
34	14H904	1	Nut	3/4"
35	H63223	1	SCREW	-
36	R28776	1	O-Ring	-
37	H63226	1	SPRING	-
38	H63229	1	WASHER	-
39	H81609	1	ORIFICE	(B)
40	H89092	5	SNAP RING	(SUB R27507)
40	R27507	1	Snap Ring	(FOR SUNDSTRAND MODEL NO. 90-4002, PRIOR TO SERIAL NO. PREFIX 10, (5) USED; PREFIX 10 AND UP, (1) USED)
99	AH96639	1	Control Valve	(FOR SUNDSTRND MODEL NO.90-4002, SERIAL NO. PREFIX 10 AND UP)
99	AH80067	1	Gasket Kit	INCLUDES PARTS MARKED (A)
99	AH80069	1	CONTROL	(PARTS MARKED WITH A (B) ARE NOT INCLUDED WITH AH80069 CONTROL VALVE) (FOR SUNDSTRND MODEL NO. 90-4002, PRIOR TO SERIAL NO. PREFIX 10)
7A	H63236	2	LINK	(SUB FOR H81627), CONTROL VALVE (FOR SUNDSTRAND MODEL NO. 90-4002, PRIOR TO SERIAL NO. PREFIX 10)
7B	AH97059	1	Link	CONTROL VALVE (FOR SUNDSTRAND MODEL NO. 90-4002, SERIAL NO. PREFIX 10 AND UP)

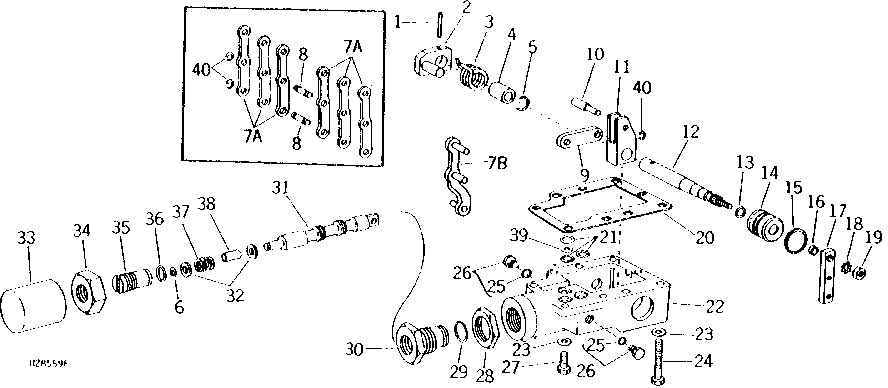

HYDROSTATIC DRIVE SPEED RANGE CONTROL VALVE ( - 353600)
