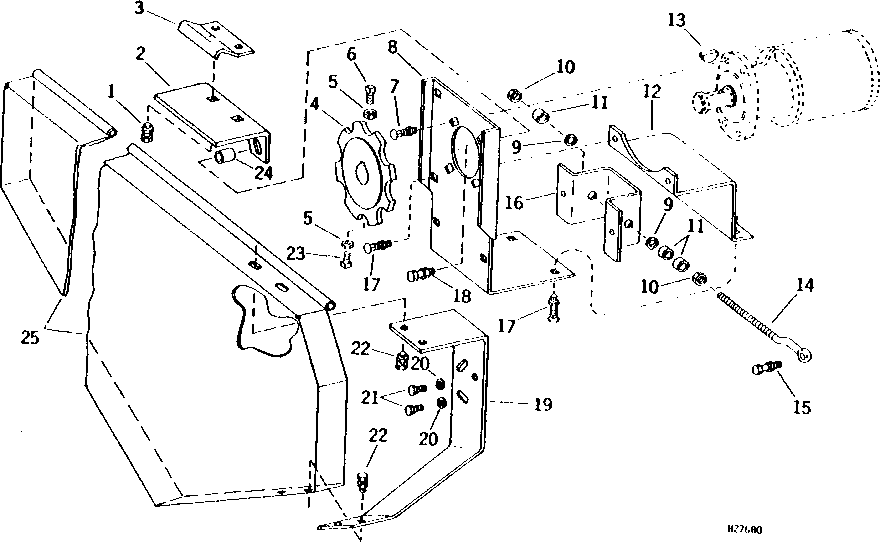

Hydrostatic Drive Reel Motor Supports/ Shield/ Sprockets (Platform Serial No. 212801- )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N10213	1	Lock Nut	-
1	03H1524	2	Bolt	5/16" X 1"
2	H93569	1	Bracket	-
3	H92600	1	Clip	-
4	AH66504	1	Chain Sprocket	Z=30, (SLAT REEL)
4	AH77367	1	Chain Sprocket	Z=20, (PICK - UP REEL)
5	14H611	1	Nut	5/16"
6	22H834	2	Set Screw	5/16" X 5/8"
7	14H1040	4	Nut	1/2"
7	12H301	4	Lock Washer	1/2"
7	03H1731	4	Bolt	1/2" X 1-1/2"
8	H85388	1	Bracket	-
9	24H1111	2	Washer	(A) 17/32" X 1-1/16" X 0.090"
10	14H826	2	Nut	(A) 1/2"
11	H83224	3	Bushing	(A)
12	H83841	1	Bracket	-
13	26H22	1	Shaft Key	1/4" X 1"
14	H88941	1	Eyebolt	(A)
15	19H1945	1	Cap Screw	(A) 1/2" X 3-1/4"
15	14H1040	1	Nut	1/2"
15	12H301	1	Lock Washer	1/2"
16	H88942	1	Bracket	(A)
17	03H1500	6	Bolt	3/8" X 1"
17	12H304	6	Lock Washer	3/8"
17	14H812	6	NUT	3/8"
18	03H1495	2	Bolt	3/8" X 1-1/2"
18	N10215	1	Lock Nut	-
19	H93555	1	Bracket	-
20	24H1136	2	Washer	11/32" X 11/16" X 0.065"
21	19H1813	3	CAP SCREW	5/16" X 5/8"
22	19H1813	4	CAP SCREW	5/16" X 5/8"
22	N10213	1	Lock Nut	-
23	22H934	1	Set Screw	5/16" X 1"
24	28H1689	2	Spacer	0.493" X 0.675" X 5/8", 1/4" X 11/16"
25	AH92213	1	Shield	-
99	AH91498	1	Support	KIT, SUPPORT ASSEMBLY
