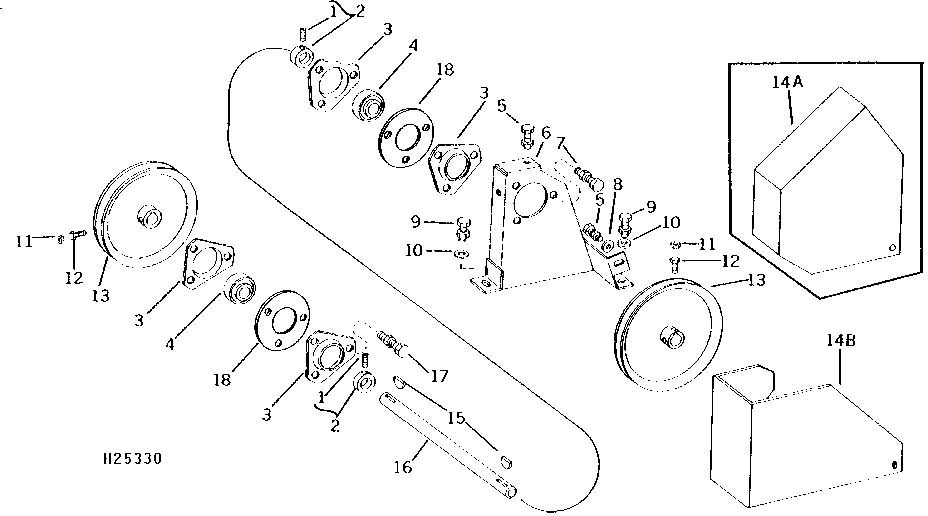

ENGINE FAN DRIVE COUNTERSHAFT ( - 163500)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H897	2	Set Screw	1/4" X 1/4"
2	JD8554	2	Eccentric Locking Collar	-
2	JD8551	2	Eccentric Locking Collar	-
3	H87472	4	Pressed Flanged Housing	(SUB FOR P47232)
3	E10018	4	Pressed Flanged Housing	-
4	JD8555	2	BALL BEARING	(SUB (2) AH169077, THIS APPLICATION AND (2) H36155)
4	AH169077	2	Ball Bearing	(SUB FOR JD9273), (SUB AH214862), (USE H36155 PRIOR TO SERIAL NO. 1500)
4	AH214862	2	Ball Bearing	-
4	JD8552	2	Ball Bearing	(SUB (2) JD9246, THIS APPLICATION AND (2) H87784)
4	JD9246	2	Ball Bearing	(USE H87784 PRIOR TO SERIAL NO. 111600)
5	19H1900	2	Cap Screw	5/16" X 3/4"
5	14H785	2	Nut	5/16"
6	AH80386	1	Support	-
6	AH85840	1	Support	(GASOLINE)
6	AH86820	1	Support	(DIESEL)
7	19H2284	3	Cap Screw	3/8" X 7/8"
7	14H812	3	NUT	3/8"
8	24H1136	1	Washer	11/32" X 11/16" X 0.065"
9	19H1731	3	Cap Screw	3/8" X 1"
9	14H812	3	NUT	3/8"
10	24H1305	3	Washer	13/32" X 13/16" X 0.065"
11	14H732	4	Nut	3/8"
12	22H836	4	Set Screw	3/8" X 1"
13	AH82232	2	Pulley	165 MM (6-1/2") DIA.
15	26H22	2	Shaft Key	1/4" X 1"
16	H83040	1	Countershaft	-
16	H85076	1	Countershaft	(GASOLINE)
16	H85831	1	Countershaft	(DIESEL)
17	19H1936	3	Cap Screw	3/8" X 3/4"
17	14H812	3	NUT	3/8"
18	H36155	2	Shim	-
18	H87784	2	Shim	-
14A	AH77182	1	Shield	-
14B	H84823	1	Shield	-
