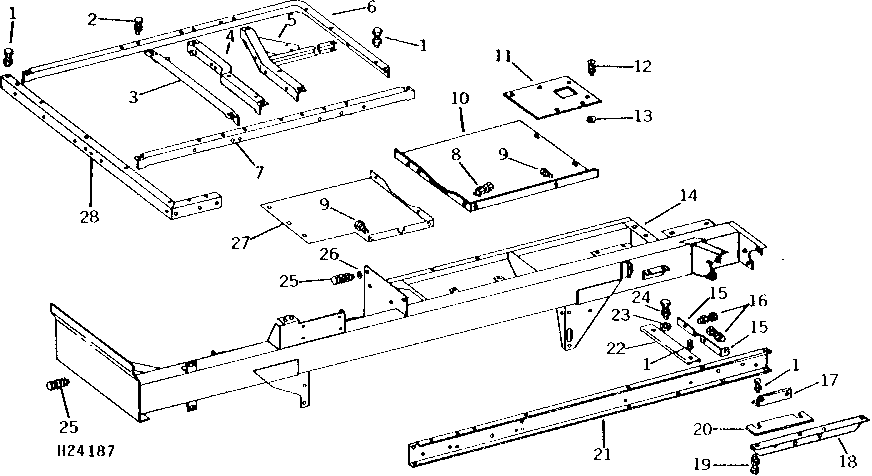

ENGINE AND OPERATOR'S PLATFORM ANGLES AND SUPPORTS (163501 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	7	Lock Washer	3/8"
1	19H1731	7	Cap Screw	3/8" X 1"
1	14H812	7	NUT	3/8"
2	19H1905	7	Cap Screw	5/16" X 1"
2	12H303	7	Lock Washer	5/16"
2	14H785	7	Nut	5/16"
3	AH87796	1	Angle	LH, STEERING COLUMN
4	AH87794	1	Angle	RH, STEERING COLUMN
5	AH77027	1	Angle	MOUNTING, CONTROL VALVE
6	H78820	1	Angle	FRONT
7	H78819	1	Angle	REAR
8	12H303	8	Lock Washer	5/16"
8	14H785	8	Nut	5/16"
8	19H1813	8	CAP SCREW	5/16" X 5/8"
9	H65108	4	Screw	-
10	H86575	1	Sheet	-
11	H88369	1	Sheet	RH (SUB FOR H86790 PRIOR TO SERIAL NO. 163501), (SUB H95045)
11	H95045	1	Sheet	RH
12	21H1069	1	SCREW	3/8" X 1", (4 USED, DIESEL; 6 USED, GASOLINE)
12	12H304	1	Lock Washer	3/8", (4 USED, DIESEL; 6 USED, GASOLINE)
12	14H812	1	NUT	3/8", (4 USED, DIESEL; 6 USED, GASOLINE)
13	24H1378	2	Washer	11/16" X 1-15/32" X 0.134", (GASOLINE)
14	AH88900	1	Support	(SUB AH93268)
14	AH93268	1	Support	-
15	H87412	1	Channel	FRONT, ENGINE
16	19H1849	2	Cap Screw	5/16" X 1-1/4"
16	12H304	2	Lock Washer	3/8"
16	14H812	2	NUT	3/8"
17	H79686	1	Angle	MOUNTING
18	H86483	1	Angle	EXTENSION
19	19H1732	2	Cap Screw	3/8" X 1-1/4"
19	N10215	1	Lock Nut	3/8"
20	H85345	3	Strap	-
21	H84457	1	Rail	ENGINE
22	H79385	1	Plate	SILL, RH
23	24H1305	2	Washer	13/32" X 13/16" X 0.065"
24	19H2284	1	Cap Screw	3/8" X 7/8"
24	12H304	1	Lock Washer	3/8"
24	14H812	1	NUT	3/8"
25	19H1815	3	Cap Screw	1/2" X 1-1/4"
25	12H301	3	Lock Washer	1/2"
25	14H1040	3	Nut	1/2"
26	24H1788	2	WASHER	17/32" X 1-1/8" X 0.060"
27	H82286	1	Sheet	DECK, LH
28	H78827	1	Angle	LH
