CLEAN GRAIN UPPER ELEVATOR SHAFTS, SHEAVE, AND SPROCKETS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H897	6	Set Screw	1/4" X 1/4"
2	JD8554	4	Eccentric Locking Collar	-
3	P46463	8	Pressed Flanged Housing	(SUB H87472)
3	H87472	8	Pressed Flanged Housing	-
4	JD8555	4	BALL BEARING	-
4	JD8555	2	BALL BEARING	(LOWER SHAFT)
4	JD8555	2	BALL BEARING	(SUB JD8665, THIS APPLICATION)
4	JD8665	2	Ball Bearing	(UPPER SHAFT)
5	AH80508	2	Bracket	-
6	03H1540	12	Bolt	5/16" X 3/4"
6	14H785	12	Nut	5/16"
7	H82948	1	Shaft	UPPER
8	-	1	Part 13	8 MM X 38 MM (5/16" X 1-1/2"), (CUT FROM H64375 IN AH64587 KEY STOCK KIT)
9	-	1	Part 14	6 MM X 6 MM X 31 MM (1/4" X 1/4" X 1-1/4"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
10	-	1	Part 15	6 MM X 6 MM X 35 MM (1/4" X 1/4" X 1-3/8"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
11	11H244	2	Cotter Pin	3/16" X 2-1/2"
12	H11340	2	Chain Sprocket	(SUB H108576, THIS APPLICATION)
12	H108576	2	Chain Sprocket	Z=8
13	22H853	4	Set Screw	3/8" X 7/8"
13	14H732	4	Nut	3/8"
14	AH75986	1	Pulley	267 MM (10-1/2") DIA.
15	H77059	1	Chain Sprocket	(SUB (2) AH87146 AND TYPE RC50 CHAIN)
15	AH87146	1	Chain Sprocket	Z=26
16	AH87765	25	Chain Link	ATTACHMENT
16	AH87757	1	Link Chain	(CA-550 ROLLER CHAIN), (25 PADDLES)
16	AH21791	25	Link	(SUB AH87765)
16	14H786	1	Nut	1/4", (STEEL CLEANING PADDLE)
16	19H1948	2	Cap Screw	1/4" X 3/4", (STEEL CLEANING PADDLE)
16	AH86897	50	Bolt	(PADDLE) (REPLACES RIVETS)
16	P46115	50	Rivet	(SUB AH86897)
16	H86760	1	Paddle	STEEL CLEANING
16	H81582	1	Paddle	(SUB H86760)
16	H33807	25	Paddle	(SUB H86758)
16	AC14974	1	Pin Fastener	COUPLER LINK, WITH COTTER PIN
16	C10263	1	Track Chain W/O Shoes	COUPLER
16	AC11779	1	Pin Fastener	OFFSET LINK
16	C10233	1	Chain Link	OFFSET
16	C10232	1	Link	ROLLER
16	AH79603	1	Link Chain	(SUB AH87757)
16	H86758	25	Paddle	RUBBER
17	H81143	1	Shaft	LOWER
18	26H31	1	Shaft Key	5/16" X 1-1/4"
19	-	1	Part 43	6 MM X 6 MM X 38 MM (1/4" X 1/4" X 1-1/2"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
20	22H907	2	Set Screw	5/16" X 7/8"
20	22H836	2	Set Screw	3/8" X 1"
20	14H611	2	Nut	5/16"
20	14H732	2	Nut	3/8"
21	H35717	1	Drive Sprocket	(SUB AH84244)
21	AH84244	1	Drive Sprocket	Z=18

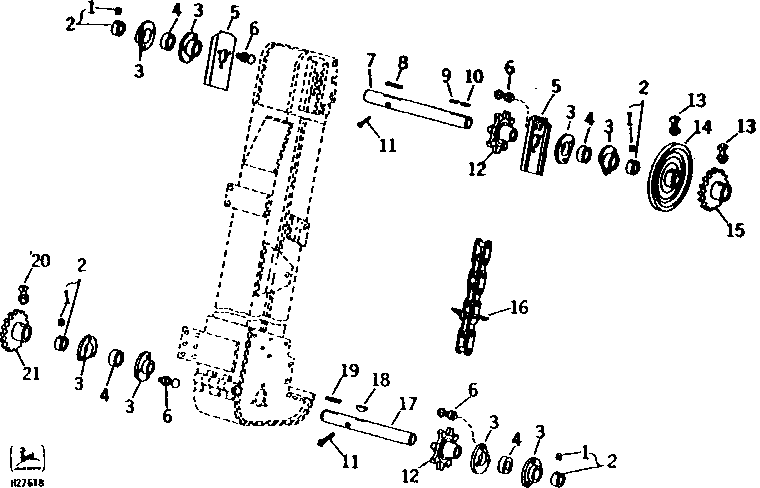

CLEAN GRAIN UPPER ELEVATOR SHAFTS, SHEAVE, AND SPROCKETS
