ALTERNATOR AND VOLTAGE REGULATOR

ALTERNATOR AND VOLTAGE REGULATOR

ALTERNATOR AND VOLTAGE REGULATOR

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

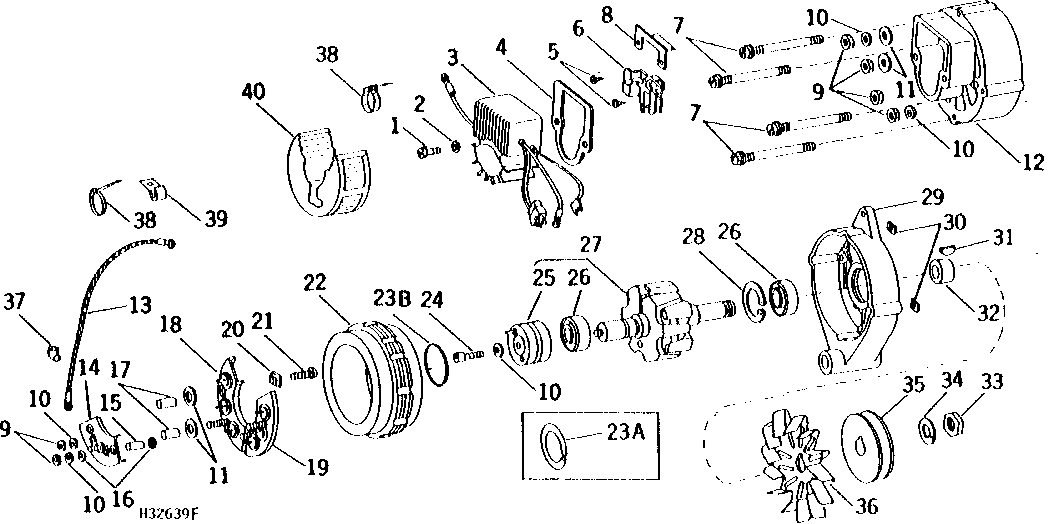

ALTERNATOR AND VOLTAGE REGULATOR

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T29103	2	Screw	-
2	12H315	2	Lock Washer	0.164"
3	R48887	1	Electrical Connector Assy	-
3	AT56592	1	REGULATOR	(SUB FOR AT29926), VOLTAGE
4	T29100	1	GASKET	-
5	37H47	2	SCREW	NO. 8 X 1/2"
6	AT27128	1	HOLDER	-
7	R15045	4	SCREW	(55 AMPERE)
7	R47460	4	BOLT	(72 AMPERE)
8	T46862	1	ISOLATOR	(SUB FOR T25357)
9	14H778	6	Nut	0.190"
10	12H246	5	LOCK WASHER	0.190"
11	R39804	4	WASHER	-
12	T50860	1	Ring	-
12	R63977	1	Housing	REAR, (USE WITH T50860)
12	T31307	1	HOUSING	(SUB R63977 AND T50860)
13	AH96097	1	Wiring Lead	1397 MM (55") LONG
14	R39800	1	DIODE	(55 AMPERE)
14	AR50229	1	Diode	(72 AMPERE)
15	R39803	1	WASHER	-
16	R15036	2	WASHER	-
17	T25353	2	BUSHING	-
18	AT27123	1	Diode	(SUB AH103067, THIS APPLICATION)
18	AH103067	1	PLATE	DIODE, (RECTIFYING, POSITIVE) (55 AMPERE)
18	AR50225	1	Ring	DIODE, (RECTIFYING, POSITIVE) (72 AMPERE)
18	AT27123	1	Diode	DIODE, (RECTIFYING, POSITIVE) (72 AMPERE)
19	AT27124	1	DIODE	(SUB AH103068, THIS APPLICATION)
19	AH103068	1	PLATE	DIODE, (RECTIFYING, NEGATIVE)
20	T25350	1	INSULATOR	-
21	T29099	1	Bolt	-
22	AT27122	1	STATOR	(55 AMPERE)
22	AR50226	1	Stator	(72 AMPERE)
24	T29102	1	Screw	-
25	AT27127	1	RING	-
26	AT23188	2	BALL BEARING	-
27	AT27120	1	ROTOR	(55 AMPERE), WITH SLIP RINGS AND BEARINGS
27	AR50227	1	ROTOR	(72 AMPERE), WITH SLIP RINGS AND BEARINGS
28	R15029	1	RETAINER	FRONT BEARING
29	R15033	1	HOUSING	FRONT
30	14H631	4	Nut	0.190"
31	26H9	1	SHAFT KEY	1/8" X 5/8"
32	T25343	1	BUSHING	-
33	14H866	1	Nut	5/8"
34	12H294	1	Lock Washer	5/8"
35	H93619	1	Pulley	76 MM (3") DIA., (SUB FOR H81713)
36	R15027	1	FAN	-
37	R36732	1	BOOT	-
38	H77698	1	Tie Band	-
39	T32231	1	Clamp	-
40	AH93170	1	COVER	-
99	AT31670	1	Alternator	(55 AMPERE), LESS ISOLATION DIODE, PULLEY, AND REGULATOR (WITH OR WITHOUT AIR CONDITIONING)
99	AR52077	1	ALTERNATOR	(72 AMPERE), (WITH OR WITHOUT AIR CONDITIONING) LESS PULLEY, REGULATOR, AND DIODE, (SUB TY6653)
99	TY6603	1	Alternator	(72 AMPERE), (REMANUFACTURED) (LESS PULLEY, REGULATOR, AND DIODE, (WITH OR WITHOUT AIR CONDITIONING), (SUB TY6653)
99	TY6653	1	ALTERNATOR	(90 AMPERE), (WITH OR WITHOUT AIR CONDITIONER) (REMANUFACTURED)
99	SE501340	1	ALTERNATOR REMAN	(REMAN FOR AR52077)
23A	T29105	1	RETAINER	REAR BEARING
23B	T50860	1	Ring	REAR BEARING
