VARIABLE SPEED CYLINDER CONTROL AND CHAINS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	13 MM (1/2") PITCH, ROLLER, TYPE 65, 108 LINKS (ASSEMBLE FROM 107 LINKS OF AB18594 AND AB14025)
1	-	1	Part 1	3/8" PITCH, 140 LINKS, ROLLER CHAIN (ASSEMBLE FROM 138 LINKS OF AH168527 AND (2) SW35OLUS)
2	-	1	Part 4	13 MM (1/2") PITCH, ROLLER, TYPE 65, 129 LINKS (ASSEMBLE FROM 127 LINKS OF AB18594, AB14025, AND AB17232)
2	-	1	Part 3	3/8" PITCH, 171 LINKS, ROLLER CHAIN (ASSEMBLE FROM 170 LINKS OF AH168527 AND SW35COUS)
3	19H1732	1	Cap Screw	3/8" X 1-1/4"
3	14H812	1	NUT	3/8"
4	24H1308	1	Washer	13/32" X 1" X 0.134"
5	H23245	1	Bushing	-
6	H82070	1	Washer	SUB. 24H1346
6	24H1346	1	Washer	17/32" X 1-3/4" X 0.120"
7	AH75245	1	Arm	TIGHTENER
8	H80128	1	Extension Spring	-
9	AH75246	1	Arm	TIGHTENER
10	H79909	1	Plate	-
11	03H1551	1	Bolt	5/16" X 2-1/2"
12	H79907	1	Nut	-
13	H79905	1	Nut	-
14	AH75243	1	Control	-
15	H76517	1	Knob	-
16	24H1286	1	Washer	9/32" X 1/2" X 1/16"
17	19H2948	1	SCREW	1/4" X 0.380"
18	H79904	1	Clamp	-
19	28H108	1	Bushing	0.364" X 0.540" X 1-7/16"
20	24H1136	4	Washer	11/32" X 11/16" X 0.065"
21	AH77780	1	KNOB	-
22	24H1136	3	Washer	11/32" X 11/16" X 0.065"
23	14H785	1	Nut	5/16"
23	21H1304	2	Screw	5/16" X 3/4"
24	H79906	1	Pointer	-
25	03H1524	3	Bolt	5/16" X 1"
25	14H785	3	Nut	5/16"
26	24H1368	1	Washer	21/32" X 1-5/16" X 0.090"
27	14H821	1	Nut	5/8"
28	H75940	1	Chain Sprocket	12 TEETH
28	AH90458	1	Chain Sprocket	12 TEETH
29	34H266	1	Spring Pin	5/32" X 1"

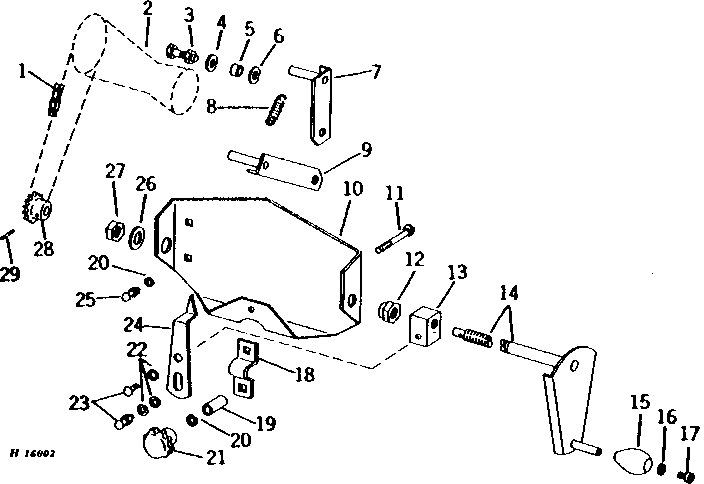

VARIABLE SPEED CYLINDER CONTROL AND CHAINS
